Anti-glare board drop weight testing machine

Anti-glare board drop weight testing machine - Other test instrument - standard

Product Information:

Scope of application:

The anti-glare board impact testing machine is designed and produced for each testing unit to measure the impact resistance of the anti-glare board, which is suitable for plastics, plastic products ceramics, glass fiber, tempered glass and other materials and test the hardness of coatings.

Meet the standard:

GB/T24718-2023,etc.

Instrument features:

With a sample holding device, to prevent inaccurate results caused by random sample projectiles;

With protective protection plate, to prevent the ball from secondary collision with the sample and the ball bounce injury;

Double overshoot protection, the overshoot motor automatically stops, need to be manually lifted to prevent damage to the instrument and protect the user;

Program with automatic memory function, power off or unplug, is still the memory setting before power off;

Motor with holding brake function, the arm will not slide down in the case of power failure;

Laser rangefinder ranging, ranging accuracy;

Two modes of operation, namely automatic and manual two ways;

Low-voltage components such as: brand buttons, relays, AC contactors, etc., stable performance, safe and reliable;

Easy to install, easy to operate, long service life.

Technical parameters:

Electromagnet suction 50kg

The steel ball weighs 1kg±10g

Steel ball diameter 63mm

Cantilever extension length 350mm（310mm from the center of the ball）

Cantilever lifting stroke 300mm（i.e. impact height can be adjusted at 900-1200）

Laser sensor measurement accuracy 1mm

The laser sensor has an error of 5 parts per thousand

Laser spot 0.5-1mm

The diameter of the anti-secondary impact partition is 65mm, and the height is adjustable from 20-110mm

Weight 130kg

Standard configuration:

1. One host

2. 1 standard iron ball

3. One national standard power cable

4. Product packing list 1 copy

5. 1 copy of product manual

6. One copy of product certificate

Другие товары поставщика

	Spinal Internal Fixation System Component Testing Machine	Standard YY/T 0119-2014 (China): Specifies mechanical testing protocols for spinal fixation components, including screws, plates, rods, and conn...
	Прибор для испытания на изгиб и сминание ткани	Тестер на сминание складок — это специализированный инструмент, используемый для оценки свойств восстановления складок различных текстильных ...
	BBA steady state solar simulator tester	Standard IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval IEC 61646: Thin-Film Terrestrial Photo...
	Lamp Anti-aging Test Chamber	Lamp Anti-aging Test Chamber - Lighting and Color Assessment - standard Standards: Applications: ApplicationThe machine is used to test ...

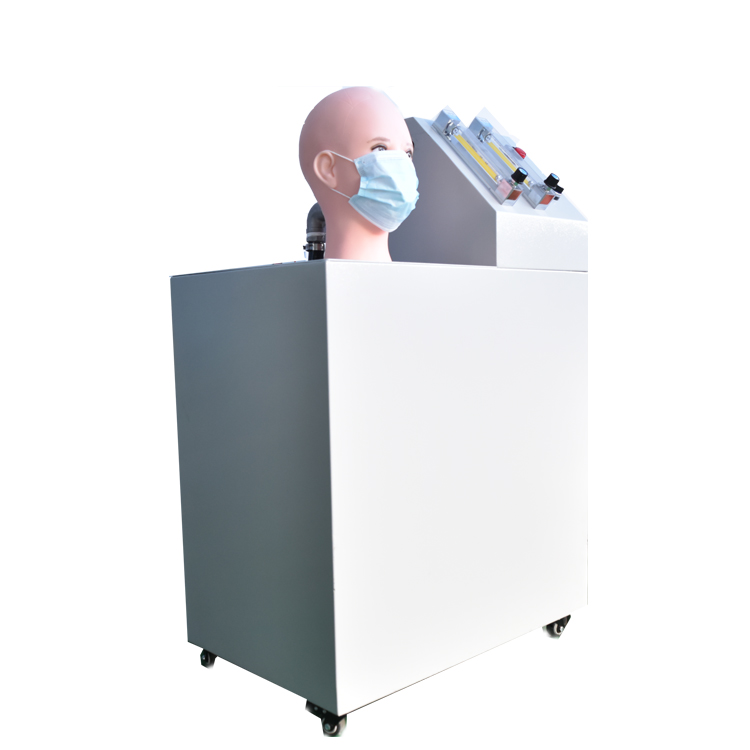

	Respiratory Resistance Tester	Respiratory Resistance Tester Introduction: The respiratory resistance tester is used to determine the inspiratory and expiratory resistance of re...
