Geomembrane Environmental Stress Cracking Resistance Tester
Scope of application:
The stress cracking strength of polyolefin geomembrane was measured and evaluated by notch constant load tensile test. During the test, the dumbbell sample with notch prepared in advance is placed in the thermostatic surfactant under constant load tension, and the fracture time of the sample is measured and recorded. A series of test results under different stress levels can establish a relationship between the stress level and the fracture time on the logarithmic axis.
Meet the standard:
GB/T 17643- Appendix D-2011.ASTM D5397-1999.CJ/T 234- Appendix C-2006.etc.
Technical parameters:
Maximum tensile stress 20MPa
Number of stations 30 can be customized
Water bath temperature range RT——90°C
Temperature control accuracy ±1 ° C
Switch sensitivity 200g
Timing accuracy 1s
Sample thickness 0.75——3mm
Notch depth 20% of the nominal thickness of the sample 6
Power supply AC 380V 50HZ
Overall dimensions 1420x640x1900mm
Weight 380kg
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Yellowing resistance test chamber / Yellowing Resistance Chamber | Applicable standards HG/T3986. ASTM D1748. etc. Scope of application Test method for determining the yellowing resistance of light and white pro... |
 |
Sponge foam collapsible hardness tester / Sponge foam collapsible hardness machine | Purpose: This machine is used to measure the indentation hardness of porous elastic materials. The polyurethane foam sample can be tested accordin... |
 |
Aatcc 112 Textile Formaldehyde Content Tester | In China, the national mandatory standard "national textile products basic safety technical specifications" GB18401-2003. with effect from 1 Januar... |
 |
Snap Button Tester | Button Snap Pull Tester | Standard ASTM D7142-2/F963: Standard Consumer Safety Specification for Toy Safety CFR 1500: Consumer Product Safety Commission (CPSC) Hazardous S... |
 |

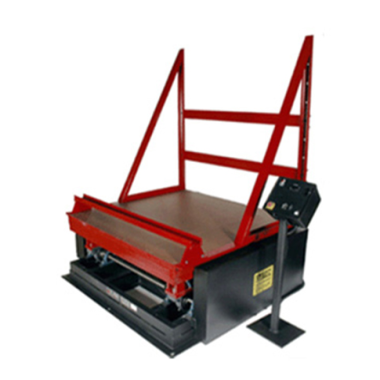

Vibration Table ISO 2247 | Standard ASTM D999: Vibration testing of shipping containers and packaged products. TAPPI T819: Corrugated box performance under simulated transp... |
