Metal Bone Screws Torque Tester
Standard
YY/T 1506. ASTM F543:
The standard specifies the torque required to measure the torque required to screw a metallic bone grafting screw into and out of a standardized material in order to confirm the consistency of the product under test. A constant force of 11.17N was maintained at a rate of 3r/min, with 4 turns screwed in and then 4 turns screwed out.
Kyle Measurement & Control M-100T is lightweight, easy to operate and precise in control, suitable for bone nail testing. We provide you with professional test fixtures to meet the standard requirements, as well as accurate and effective test program (SOP), and optional data post-processing software to reduce the difficulty of data processing to help analyze the mechanical properties of metal bone screws.
Product features:
1. Diversification of functions, can realize a multi-functional, multi-purpose machine
2. Humanized interface design, easy to operate
3. Industrial appearance design, beautiful and generous, focusing on user experience
4. Professional high-performance control system to control the coordinated action of dual motors
5. Imported customized high sensitivity load element, imported screw to ensure accurate displacement.
6.Professional fixture for different testing modes.
7. Simple and easy to operate, highly simplified control system puts all the cumbersome settings in the background to complete, one-button startup.
8. Multi-curve drawing mode, easier to control the testing process.
9. metal bone screw rotating (screwing in and out) torque testing machine test method using full Chinese operation and display interface, display information intuitive and easy to read, multi-key operation, with Chinese display interface, make your operation more simple, completely according to the customary prompts interface sequence operation, complete the system parameter settings. Adopt AC servo motor, precision reducer transmission, with loading uniformity, stability, no impact phenomenon, data collection and control of accurate characteristics.
Main technical parameters:
1. Unit: N-m
2.Resolution: 0.001N.m
3... Torque range: 0-10N.m
4. Torque sensor accuracy level: less than 0.5%F.S.
5.Speed accuracy: ±0.01mm/min
6. Axial force sensor: 2000N (taking into account the axial pull-out force test)
7. Pressure sensor accuracy level: less than 0.5%F.S.
8. Pressure sensor resolution: 0.001N
9. Linear displacement sensor: range above 50m.
10. Displacement sensor accuracy level: less than 0.5%F.S.
11. Displacement sensor resolution: 0.01mm
12. Torsion angle sensor: 999999 °
13. Torsion angle accuracy: ±0.2°.
14. Torsion speed: 1r/min ~ 30r/min within any choice
15. Effective stroke: 500±10mm (can be increased according to demand)
16. Torque resolution 1/±1000000F.S
17.Relative error of torque display value ≤±0.2%.
18.Torsion angle resolution 0.001°.
19. Relative error of torsional angular velocity within ±0.5% of set value
20. Coaxiality of the two collets ≤ ￠0.2mm
21 machine power ≈ 0.4kW
22. Power supply voltage ～220V±10% 50Hz (must be reliably grounded)
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Paper ring compression strength tester | Product Introduction: Intelligent cardboard edge compression strength tester, also known as computer measurement and control compression tester, c... |
 |
Protective Clothing Flame Spread Tester | Standards compliant ISO 15025-2000: International Standard specifying test methods for the burning behavior of protective clothing (directly gover... |
 |
Solid electrolyte analysis system | Standard ISO 9001:2015(Quality Management System) ASTM E1970-21(Standard Guide for Electrochemical Impedance Spectroscopy) IEC 62660-2(Seconda... |
 |
Safety Helmets Impact and Penetration Resistance Tester | Standard GB/T 2811-2019(China’s national standard for helmet safety and impact resistance) GB/T 2812-2006/XXXX(Testing methods for impact... |
 |

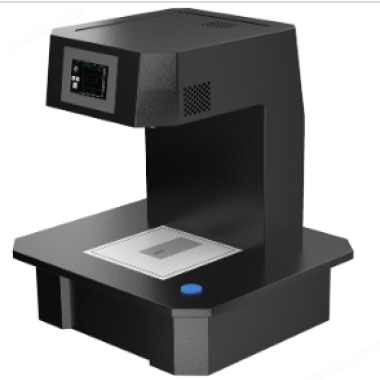

The textile photothermal performance tester | Application ScopeThe textile photothermal performance tester is mainly used to test textile products' photothermal storage performance, heat-blocki... |
