Xenon Test Chamber
Features and Benefits
1.The use of xenon arc lamp as a light source, can simulate the full sunlight spectrum, including ultraviolet, visible light and infrared and other wavelengths of light.
2.Compared with the natural aging test, the xenon lamp test chamber can accelerate the aging process of the material and simulate the effect of long-term exposure of the material in the natural environment in a shorter time.
3.In addition to light, xenon test chamber can also accurately control temperature, humidity and water spray playing the role of weatherometer, the interaction between light and temperature, humidity and rain reproduce more authentic environment.
4.Color LCD touch screen controller, convenient for operators to set temperature, humidity, irradiance, spray, sample holder rotation and other parameters, to achieve automatic cycle test, improve test efficiency and repeatability.
Specifications
|
Model |
STD XL-S-750 |
|
Internal Dimension (mm) |
950*950*850 mm |
|
Overall Dimension (mm) |
1400*1400*1950 mm |
|
Specimen Holder Size(mm) |
95*200 |
|
Specimen Capacity |
42pcs |
|
Chamber Type |
Rotating Holder |
|
Irradiation Source |
1 piece of 4500w water-cooled xenon arc lamp |
|
Irradiance Range |
35~150 W/㎡ |
|
Bandwidth Measurement |
300nm~400nm (340nm or 420nm) |
|
Chamber Temperature Range |
Ambient～100 ℃ ±2℃ |
|
Black Panel Temperature |
BPT 35～85 ℃ ±2℃ |
|
Humidity Range |
50% ~ 98% RH |
|
Humidity Deviation |
± 5% RH |
|
Water Spray Cycle |
1~9999H59M (Adjustable) |
|
Controller |
Programmable color LCD touch screen controller |
|
Water supply system |
Automatic water supply, Water purification system |
|
Radiometer |
UV Radiometer, Tolerance: ±5% |
|
Cooling System |
Mechanical compression refrigeration system |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

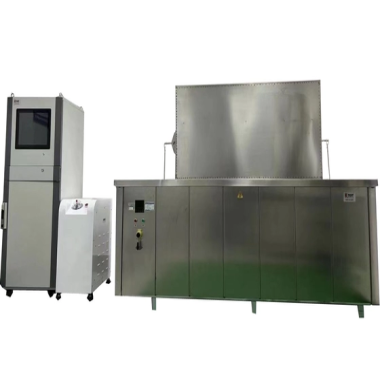

Plastic Pipe Hydrostatic Pressure Burst Tester | The Plastic Pipe Hydrostatic Pressure Burst Tester utilizes an international airless pressure control system. Its core is a dual-CPU control system... |
 |
Flooring Radiant Panel Test Apparatus | Standards ISO 9239-1: Flooring fire reaction test - Part 1: Combustion performance of flooring materials tested by radiantheat ASTM E 648: Crit... |
 |

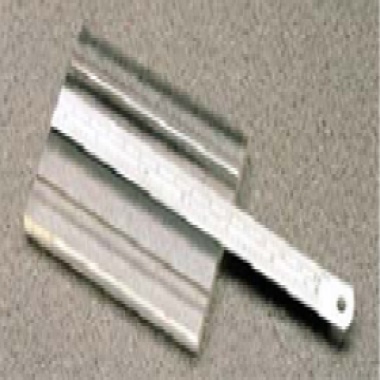

Carpet tuft length measuring instrument | Standard BS 4223:1989 (British Standard): Specifies methods for determining the pile length of cut-pile carpets, ensuring consistency in quality... |
 |

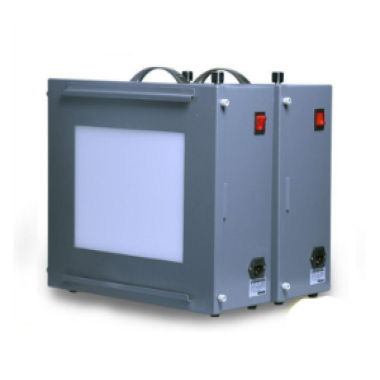

Image test standard transmission light box | Standard CIE 15:2004: Adheres to colorimetry standards for spectral measurement. ISO 3664:2009: Compliant with viewing conditions for graphic art... |
 |

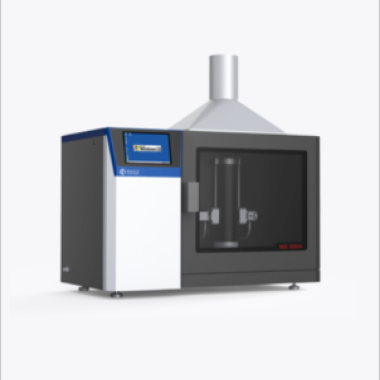

Minimum Ignition Energy (MIE) – Dust Cloud Tester | Dust Cloud Minimum Ignition Energy Tester disperses a certain mass of dust specimen to be tested into the Hartmann tube device through a certain pr... |
