Schopper Abrasion Tester
Standards
DIN 53863. Part 2: Abrasion test methods for textile fabrics (rotary abrasion test).
GME Standard 60345 & GMW Standard 3283: Industry-specific automotive material testing protocols.
VW/Audi Zentral-Norm PV 3908: Volkswagen/Audi group standard for material durability evaluation.
QC/T 216
Product Advantages
Precision Compliance: Designed to fulfill multiple global automotive standards, ensuring universal applicability.
Versatile Applications: Ideal for evaluating abrasion resistance of automotive interior materials (e.g., fabrics, leather, coated textiles) under tension.
User-Centric Design: Compact structure with intuitive touchscreen controls for manual or automatic operation.
Accurate Measurement: Integrated adjustable arc height device (0–10mm) and load-adjustable system (0.5–25N) for precise testing.
Durability: Robust construction with a stainless-steel test head and corrosion-resistant components for long-term reliability.
Efficiency: Reversible rotation direction every 100 cycles minimizes wear bias and accelerates testing processes.
Product Features
Rotary Abrasion Mechanism: A specimen clamped on a rotating test head (166° taper angle) maintains line contact with an abrasion block, simulating tangential friction.
Modular Clamping System: Obtuse-angle cone chuck and mounting support ensure secure specimen fixation during high-speed rotation (75 revolutions/minute).
Touchscreen Interface: Real-time control panel with programmable cycles, load settings, and rotation reversal triggers.
Arc Height Adjustment: Built-in gauge for measuring sample deformation post-test, critical for assessing material resilience.
Load Customization: Interchangeable weights (50g–1500g) accommodate diverse testing requirements, from delicate fabrics to heavy-duty materials.
Space-Saving Design: Compact dimensions (325×565×560mm) and lightweight build (35kg) optimize laboratory workspace utilization.
Technical Parameters
| Parameter | Specification |
|---|---|
| Revolutions per Minute | 75 rpm |
| Taper Angle | 166° |
| Mounting Head Declination | 7° |
| Specimen Size | 100 cm² |
| Test Area | 50 cm² |
| Arc Height Adjustment | 0–10 mm (manual/automatic) |
| Load Range | 0.5–25 N (adjustable) |
| Standard Weights | 50g, 100g, 250g, 500g, 1000g, 1500g |
| External Dimensions | 325 (W) × 565 (D) × 560 (H) mm |
| Net Weight | 35 kg |
| Power Supply | 115/240V, 50/60Hz |
| Power Consumption | 130W |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Fiber Crimp Elasticity Test machine | Product Introduction: YG362C fiber crimp elasticity meter is used for crimp degree of 1-22dtex fiber. Crimp elasticity, crimp recovery rate index... |
 |

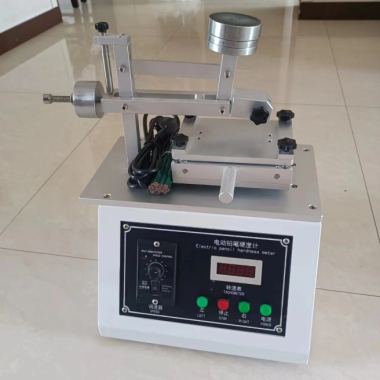

Electric pencil hardness tester | Product Introduction: This machine is suitable for all kinds of finished product spray hardness test, such as: mobile shell, laptop computer shel... |
 |
