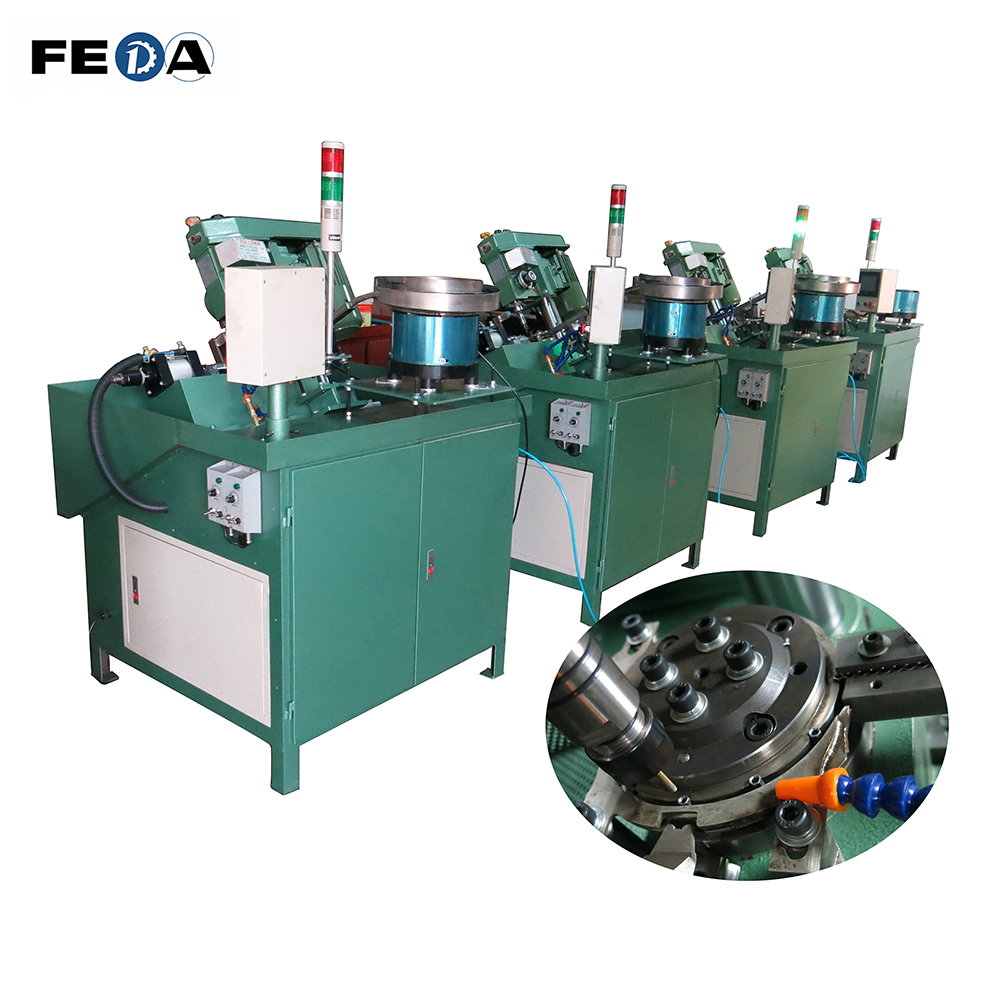

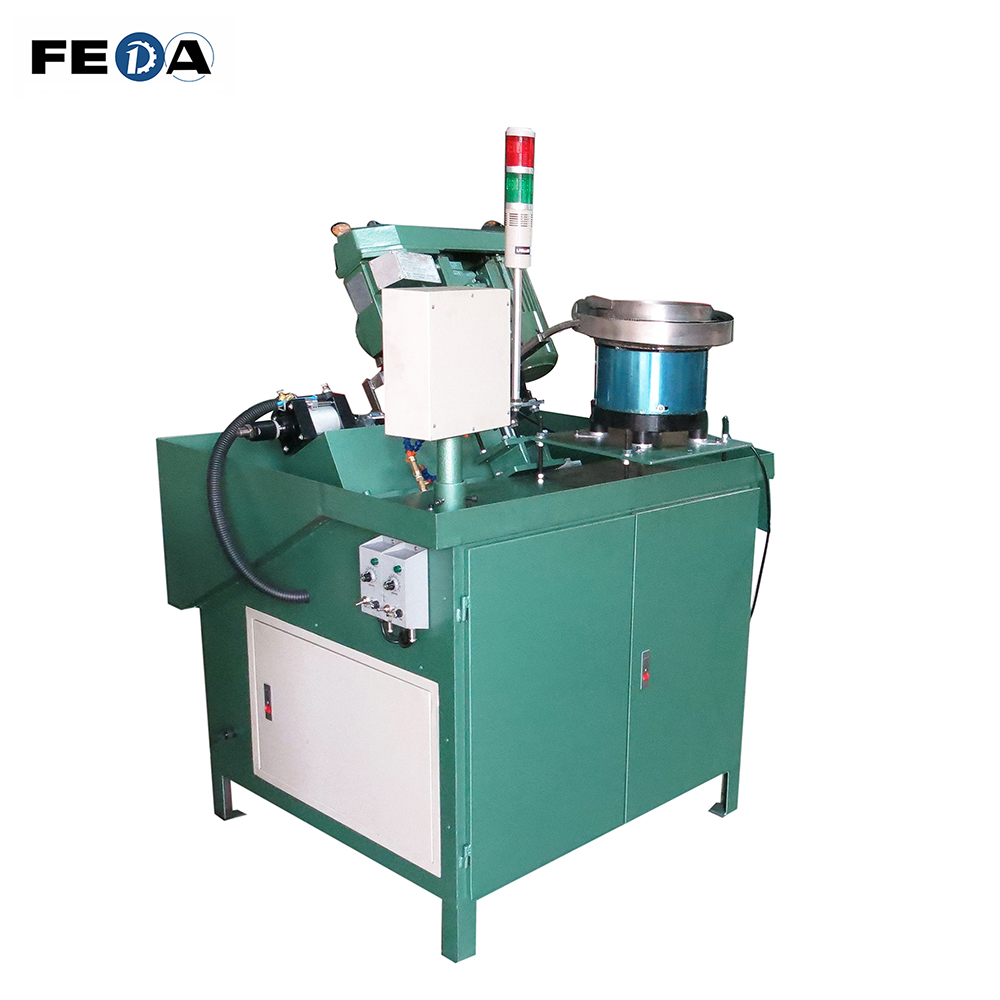

FD-4508 internal thread forming machine automatic feeding tapping machine drilling and tapping machine
1.Forming & cutting thread can be realized on only one machine
2. Adopt vibration bowl as automatic feeding devices
3. High speed, to save cost of time and workers
4. High precision, stability and durability
5. Easy to operate and maintain the machine
Specification
Max. spindle stroke 45mm
Spin warp 330mm
Thread diameter 2-8mm
Head movement distance 260mm
Distance between spindle and table 350mm
Table size 225*230mm
Base area 415*300mm
Capacity 10-15pcs/min
Dimension(L*W*H) 1200*1000*1500mm
Weight 450 KG
Motor 380V, 4P, 750W
Number of spindle swing 50HZ-1340, 760, 420
60HZ-1600, 900, 500
Q1. Are you factory or trading company ?
A1. We are factory of manufacturing thread rolling machine and dies by ourselves.
Welcome to visit our factory, if possible.
Q2. What is the delivery time ?
A2. Usually 15-25 working days for machine, and 10-15 working days for dies.
Q3. What is the warranty time for machine?
A3. Usually 12 months from B/L date.
Q4. What is the payment term?
A4. T/T, Western Union, Money Gram, Alipay, PayPal.
50% as deposit, and 50% before shipping.
Q5. Is it possible to design and produce automatic loading & unloading devices?
A5. Yes,Engineer can design special auto feeding device according to your products.
But please provide the drawing of your products before that.
Q6. How will you solve problems that we face during using your machine?
A6. A. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.
B.Will arrange engineers to solve problems at the scene, if possible.
