Homemade new Dia. of spindle hole 130mm spherical turning lathe on sale
Homemade new

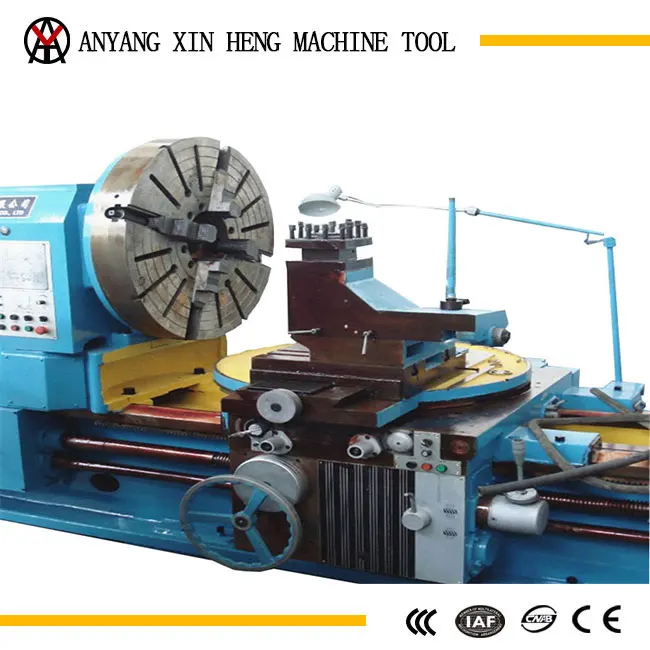

C6595 Dia. of spindle hole 130mm spherical turning lathe on sale
The spherical lathe is mainly used for the turning machining of spherical core of ball valve,The diameter of the processing sphere is 550mm.It can realize fine car, semi-fine car, grinding and other processing work.The lathe bed adopts the rectangular guide rail, the stability is good, the rigidity is strong. The main shaft adopts the three support structure, the rigidity is high, the precision is high, but powerful cutting.
Main configuration:
The user can select the special configuration or special order according to the size and purpose of the workpiece
UNIT |
C6595 |
||
CAPACITIES |
Max. Dia. of spherical |
mm |
900 |
Min. Dia. of spherical |
mm |
260 |
|
SPINDLE |
Dia. of spindle hole |
mm |
130 |
Taper of hole of spindle |
mm |
140 |
|
No. of spindle speeds |
21 |
||
Range of spindle speeds |
r/min |
3.15~315 |
|
Spindle reverse speeds |
r/min |
11~291 |
|
TAILSTOCK |
Swivel angle of toolpost |
° |
±90 |
OTHERS |
Main power |
kw |
22 |
Weight |
t |
12 |
|
Length |
mm |
4700 |
|
Width |
mm |
2500 |
|
Height |
mm |
2000 |
Production process:

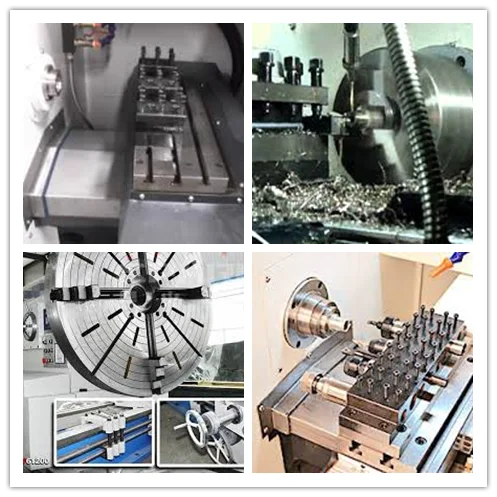

The main components are: spindle box, exchange gear box, feed box, slide box, tool rack, tail frame, light bar, screw, bed foot and cooling device.
there are two layers of skateboard (medium, small skateboard), the saddle and the frame body together. Used to install the lathe tool and drive the lathe tool for longitudinal, transverse or oblique movement.
also called feeding box, feed movement are installed in the feed box shift gear, adjust its shift gear, can get the required feeding or pitch, through light poles or screw would transmit the motion to head for cutting.
1. Confirm the purchase
1. FOB Shanghai / Tianjin or CIF, LCL or FCL shipping.
2. Payment terms: T/T or other ways contact us.
3. Package: standard wooden case
4. Delivery time: Within 20 working days after the down payment. (Actual delivery time depends on actual order.
2. Check the acceptance
Receive machine,please check:
1. Examine the content of the packing list,the product quantity to both consistent,and accessories;
2. Machine tool details if they 're normal, If have the trace of replacement and maintenance, If have other effects use of the problem.
If happens above declare,please contact us immediately.
Packaging & Shipping:
Anyang Xinheng Machine Tool Co. Ltd.is a large professional manufacturer of LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc.
Our factory has 60 years experience in machine tool production.And our machine tools have been exported to more than 50 countries.
