Pavers Shot Blasting Machine
QINGGONG MACHINERY pro blasting suppliesa variety of shot blasting machines to meet your different needs. According to the industry, different types of shot blasting machines can be chosen from. To learn more, you may see the “Industry” applications. Click “Buy Shot Blasting Machine” to get more information about our shot blasting machine products.
PAVERS SHOT BLASTING MACHINE
Paver shot blasting machine is mainly used for surface roughening treatment of marbles, granites, concrete products, and natural stone. It includes stone shot blasting machineand marble shot blasting machine. It provides twin advantage foremost subject field end provides outstanding appearance as a result of the rough surface and therefore the exposed aggregates. Second "roughened" surface has excellent non-slip properties.
Pavers Shot Blasting Machine Basic Specification
QGS Series Roller Conveyor Type for Pavers Length ≥60cm
|
Machine Model |
QGS600 |
QGS800 |
QGS1000 |
QGS1200 |
QGS1500 |
|
600 |
800 |
1000 |
1200 |
1500 |
|
|
400 |
400 |
400 |
400 |
400 |
|
|
Working speed(frequency adjustable) m/min |
|||||
|
number of wheels×power(kw) |
2×7.5/11/15 |
2×7.5/11/15 |
2×7.5/11/15 |
2×7.5/11/15 |
2×7.5/11/15 |
|
Vertical wheel optional |
1×7.5/11/15 |
1×7.5/11/15 |
1×7.5/11/15 |
1×7.5/11/15 |
1×7.5/11/15 |
|
Foundation pit required |
No |
No |
No |
No |
No |
QGP Series Rubber belt Type for Pavers Length ≤60cm
|
Machine Model |
QGP600 |
QGP800 |
QGP1000 |
QGP1200 |
QGP1500 |
|
600 |
800 |
1000 |
1200 |
1500 |
|
|
400 |
400 |
400 |
400 |
400 |
|
|
Working speed(frequency adjustable) m/min |
|||||
|
number of wheels×power(kw) |
2×7.5/11/15 |
2×7.5/11/15 |
2×7.5/11/15 |
2×7.5/11/15 |
2×7.5/11/15 |
|
Vertical wheel optional |
1×7.5/11/15 |
1×7.5/11/15 |
1×7.5/11/15 |
1×7.5/11/15 |
1×7.5/11/15 |
|
Foundation pit required |
No |
No |
No |
No |
No |
The working principle of the paver shot blasting machine:
Paver Shot Blasting Machine is predominantly used to blast marbles, granites, shot blasted paver blocksto create an improved aesthetic appearance, taking out cement and making styling attributes such as granite chips visible. The working principle: different sized abrasive, thrown by the rapidly rotating blast wheel, is accelerated towards the surface being prepared. The huge impact force of the abrasive quickly etches a unique three-dimensional character of the surface. The products processed in this way have a high-quality surface appearance without overlapped and dead zone, it also has high production efficiency and low cost. Comparison with the old power blader and singeing process method, it has higher efficiency and lower cost, and if connected to our dust collector, the dust and contaminants will be recycled automatically at a very low dust emission level, which complies with EU environmental standards.
The concrete blasting machinecan be integrated into a production line due to its modern control system with the relevant interfaces, different belt lengths and well-coordinated transfer stations (e.g. sheets or rollers).
Advantage of paver shot blasting machine:
lSpeed adjustment of conveyor and blast wheels is controlled through an Inverter.
lThe number and the position of the blast wheels can change depending on the geometry, customer requirement and on the workpieces, such as only the blasting of the upper side, or need to blast lateral side.
lWith proper regulated control and type of shot used in the shot blast machine, it is possible to produce different surface finishes to produce an "antique" effect on marble stones and ‘bush-hammering's effect on cement products.
lAll sandblasting paversshot blasting machine with Blow-off station. After blasting, a blow-off station with a high-pressure blower removes the shot from the surface of the concrete blocks/stone. The nozzles are adjustable in height and therefore adaptable for the treatment of different concrete shot blasting machinesizes.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
CONTINUOUS TUMBLE PASS-THRU SHOT BLAST MACHINE | CONTINUOUS TUMBLE PASS-THRU SHOT BLAST MACHINE The through-feed blast cleaning process offers a number of distinct advantages and ensures efficien... |
 |
Sandblasting Room | The sandblasting roomdesigned by QINGGONG Machinery can complete a wide range of blasting jobs for those big and irregular workpieces. Traditional ... |
 |
SHOT PEENING MACHINE | Shot peening machineis a process specifically designed to enhance the fatigue strength of components which are subject to high alternating stress. ... |
 |
Mechanical CNC Turret Punching Press Machine | QINGGONG MACHINERY pro blasting suppliesa variety of shot blasting machines to meet your different needs. According to the industry, different type... |
 |
Sandblasting Room | sandblasting room designed by QINGGONG Machinery can complete a wide range of blasting jobs for those big and irregular workpieces. Traditional san... |
Похожие товары
 |

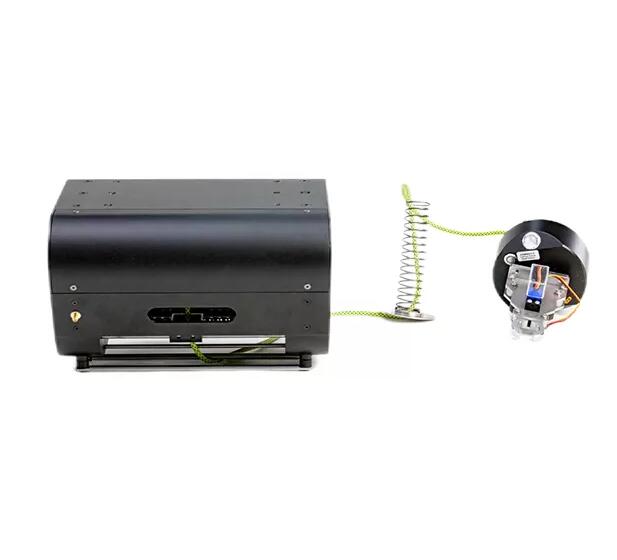

XD-MAX Winch for Drone | Продавец: NEW WING ADVANCED (TIANJIN) TECHNOLOGY CO., LTD | XD-MAX Winch for Drone The XD-MAX Winch for Droneis a high-performance aerial lifting solution d... |
 |

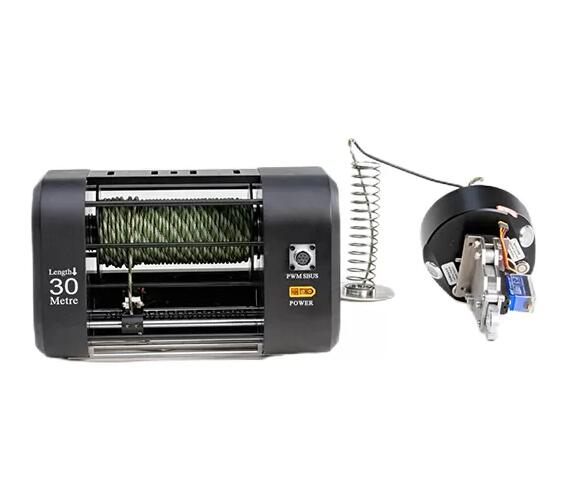

XD-55 Winch for Drone | Продавец: NEW WING ADVANCED (TIANJIN) TECHNOLOGY CO., LTD | XD-55 Winch for Drone Introducing the XD-55 Winch for Drone—an advanced lifting system eng... |
 |

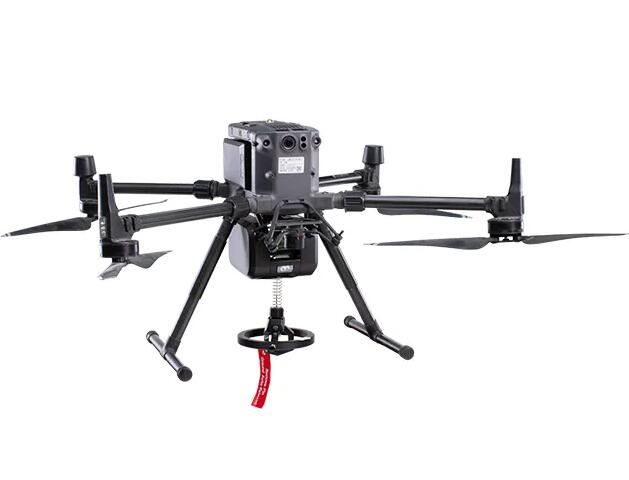

XD-10 Winch for Drone | Продавец: NEW WING ADVANCED (TIANJIN) TECHNOLOGY CO., LTD | XD-10 Winch for Drone SAFE, EFFICIENT AND CONVENIENT.Your reliable and intelligent air transport... |
 |
