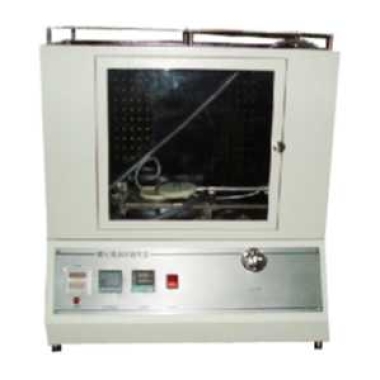

Fabric horizontal burning tester
Standard
QB/T 2729: Leather – Horizontal flammability test for physical and mechanical properties.
ASTM D5132: Horizontal burning rate of polymeric materials in vehicle occupant compartments.
SAE J369: Polymeric interior material flammability – Horizontal test method.
FMVSS 302: Flame retardancy of automotive interior materials (cars, trucks, buses).
ISO 3795: Burning behavior of interior materials in road vehicles and agricultural machinery.
DIN 75200: Combustion performance of automotive internal equipment materials.
ISO/NP 17074: Leather – Determination of horizontal flame spread resistance.
Product Advantages
Precision & Repeatability: Delivers highly repeatable experimental data to evaluate material flame-retardant performance accurately.
Broad Applicability: Tests leather, polymers, textiles, and automotive interior parts (e.g., seats, roof linings, curtains).
Safety-First Design: Electrical control and combustion chamber are separated to prevent fire hazards, ensuring stable operation.
Automated Data Capture: Precisely records ignition time and flame spread duration for objective analysis.
Compliance Assurance: Meets stringent automotive and textile industry standards, simplifying export certifications.
Research & Development Support: Provides critical data for new material development and quality control.
Product Features
Dual-Chamber Structure: Isolated electrical control unit and combustion chamber enhance safety and operational stability.
Multi-Material Testing: Suitable for automotive interiors, public transport components, and industrial textiles.
Adjustable Ignition System: Angled burner (0° or 45°) with precise燃气pressure control (0-50kPa).
High-Precision Measurement: Accurately tracks flame spread distance and time (resolution: 0.1s).
User-Friendly Interface: Digital display for real-time monitoring and data storage.
Compliance-Driven: Aligns with ASTM, ISO, SAE, and DIN standards for global market access.
Technical Parameters
| Parameter | Specification |
|---|---|
| Ventilation Slot Height | 13 mm |
| Vent Hole (Bottom) | Diameter φ19 mm × Depth 10 mm |
| Observation Window Width | 330 mm |
| Sample Rack Dimensions | 255 mm × 200 mm × 170 mm (L×W×H) |
| Sample Fixture | U-Type, 355 × 25 × 10 mm (Inside Margin: 50 mm) |
| Flame Box Dimensions | 368 mm × 216 mm × 356 mm (L×W×H) |
| Burn Timer | Accuracy: ±0.1 s |
| Standard Flame Height | 38 mm |
| Collection Plate | 55 mm × 119 mm × 19 mm |
| Ignition Time | 15 s (Adjustable) |
| Overall Dimensions | 390 mm × 200 mm × 390 mm (L×W×H) |
| Support Wire | φ0.25 mm (High-Temperature Resistant Wire) |
| Spading | 25 mm |
| Weight | 31 kg |
| Power Supply | AC 220V ±10%, 50Hz |
