SS304 316 stainless steel seamless/welded casing pipe and oil well tube

Hot sell OASIS deep well use stainless steel tubing stainless steel pipe​:

1.Standard:API 5CT
2.Finish: passive pickling and polish, etc.

3.Size: OD 114.3-508mm
4.Wall thickness: 5.21mm-16.13mm

Product Description

TP304 API seamless steel stainless well casing with thread connection:

ASTM A312 Seamless 304 316 Stainless Steel Casing Pipe:
Seamless Inox 316 stainless steel casing pipe is used to stabilize the well, in order to make sure that the whole well can work smoothly. We also can design and produce casing and tubing of stainless steel series for our clients especially .
1.Material: 304,304L,316,316L,310S,duplex stainless steel,etc
2.Size: 2 3/8inch - 20inch

3.Packing: 1)in bulk
2)packed by steel strip into bundle
3)according to client

6.Length: R1,R2,R3, or as per customer's requirement
7.Connection Type: STC,LTC,BTC,NUE,EUE(manufactured according to API 5CT standard)
We also can manufacture other special connection type according to clients' requirement.

Product Name High quality stainless steel oil pipe casing with thread connection(China manufacturer)
Technique Hot rolled and weld
Production Standard API 5CT
Steel grade ASTM A312,ASTM358, AISI304,AISI304L,AISI316,AISI316L etc
O.D(out diameter) 114.3-508mm
W.T(wall thickness) 5.21-16.13mm
Length R1(4.88-7.62m), R2(7.62-10.36m), R3(10.36-14.63m)
MOQ 10 meters
Delivery date 15-60days, according the order quantity

Product picture show of API Steel casing pipe:

Details image:

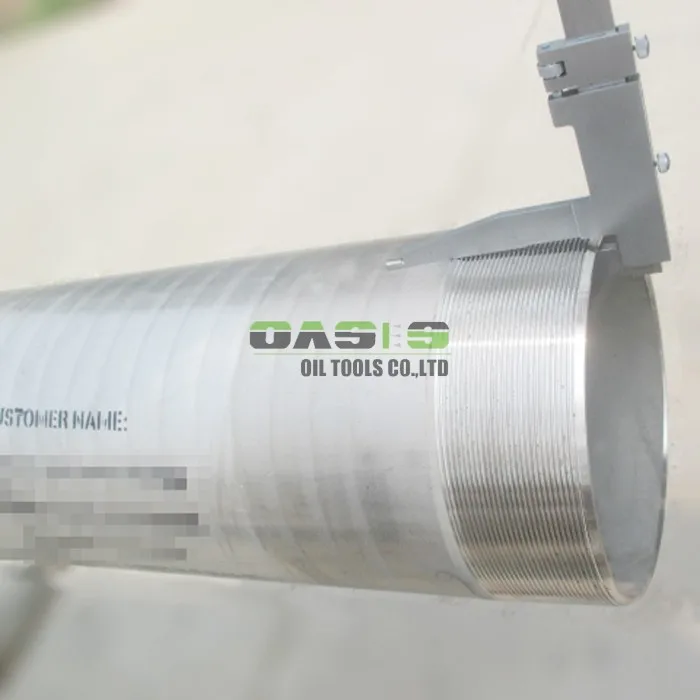

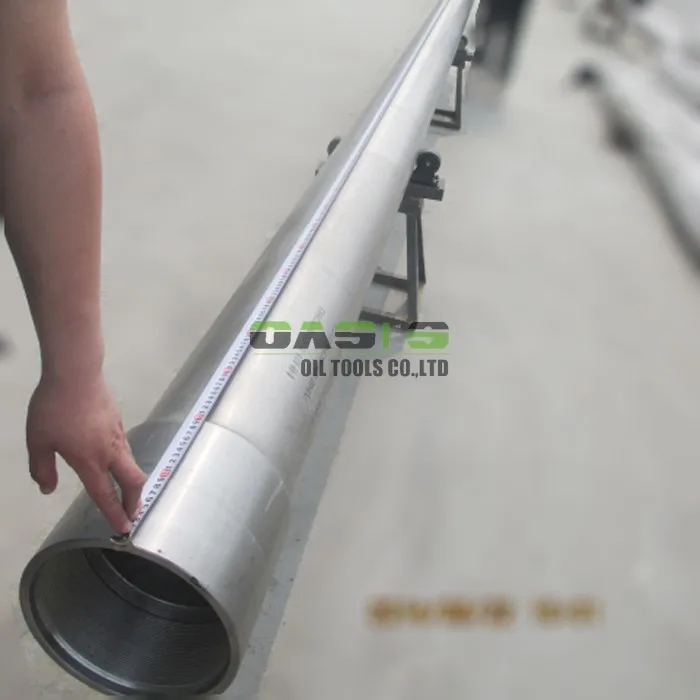

TP304 API seamless steel stainless well casing with thread connection

1)The casing imagine . 2)The female threaded connection. 3)The perfect surface

1)The green coupling and black pipe body, the clean lable on the pipes for the client to distinguish the pipe size.


2)Most of the clients focus on the female and male coupling to distinguish the quality of the casing pipes, welcome to learn more, you will find the best supplier here.

3)API 5CT Tp316L seamless Stainless Steel Casing Pipe with high quality:
All the material follow the API 5CT standard, The surface refer to the API 5CT. Welcome to purchase from us.

Specifications table:

Size

Weight

Steel Grade

Wall Thickness

Inch

mm

ppf

Kg/m

mm

4-1/2

114.30

11.49

17.12

304,304L,316,316L,

6.35

13.21

19.68

304,304L,316,316L

7.37

5

127.00

15.07

22.45

304,304L,316,316

7.52

18.34

27.31

304,304L,316,316L

9.29

21.57

32.12

304,304L,316,316L

11.10

5-1/2

139.70

17.09

25.44

304,304L,316,316L

7.72

20.07

29.89

304,304L,316,316L

9.17

22.83

33.99

304,304L,316,316L

10.54

7

177.80

22.92

34.12

304,304L,316,316L

8.05

25.98

38.69

304,304L,316,316L

9.19

29.09

43.31

304,304L,316,316L

10.36

9-5/8

244.48

43.26

64.41

304,304L,316,316L

11.05

46.75

69.61

304,304L,316,316L

11.99

10-3/4

273.05

39.38

58.64

304,304L,316,316L

8.89

5015

74.67

304,304L,316,316L

11.43

13-3/8

339.73

53.42

79.54

304,304L,316,316L

9.65

66.96

99.69

304,304L,316,316L

12.19

16

406.4

63.43

94.45

304,304L,316,316L

9.53

73.78

109.86

304,304L,316,316L

11.13

18-5/8

473.10

85.62

127.49

304,304L,316,316L

11.05

20

508.00

92.74

138.09

304,304L,316,316L

11.13

105.49

157.07

304,304L,316,316L

12.70

The quality test of seamless steel casing pipes for oil filter:

TP304 API seamless steel stainless well casing with thread connection

TP304 API seamless steel stainless well casing with thread connection

Packaging & Shipping

TP304 API seamless steel stainless well casing with thread connection:

1)Plastic threads cap packing. 2)The plastic caps. 3)The PIL shipping company

TP304 API seamless steel stainless well casing with thread connection

1)The plastics threads cap packing for the pipes and the plastic cap on the side of the pipes(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).

2)the bule plastic caps be covered on the both side of the pipes(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).

3)Under the same shipping fees, we choose the quick shipping line to save time for the clients.(high quality supplier Oem/Odm 300series Stainless Steel Pipe /Tube).

Company Information

TP304 API seamless steel stainless well casing with thread connection:

TP304 API seamless steel stainless well casing with thread connection

TP304 API seamless steel stainless well casing with thread connection

TP304 API seamless steel stainless well casing with thread connection

Oasis Oil Tools Co.,LTD,located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with more than 150 staff, among them 6 persons are senior engineer. OASIS is a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/ Johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Oasis has the right to export well screens independently. Our water well screens have been exported to Russia, Sudan, Tunisia, Morocco, Saudi Arabia, Slovenia, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, Columbia etc. Countries, and have received good feedback from customer at domestic and abroad.

Oasis Project:

TP304 API seamless steel stainless well casing with thread connection

The Certification:

TP304 API seamless steel stainless well casing with thread connection

Contact

Seamless 316 Stainless Steel casing pipe:

If you are satisfied with our Seamless 304 316 Stainless Steel Casing Pipes and willing to know precise price and more information, the following questions is appreciated:
1, What's thematerialyou are going to deal with, stainless steel 304,304L,316,316L?
2, What's theOD, length? Diameter from 30-600mm,length from 1-6m
3, What's thethicknessof stainless steel seamless casing pipes? Usually it is depends on your well depth.
The tensile strength is important for the casing pipes and each pipe will be tested before delivery.
4,We support you consider transportation too.
5, What's theconnection way, bevelded, threads, plain ends or flange?
If you are interested in our Seamless Inox 316 Stainless Steel casing pipe,please do not hesitate to contact with Maggie
