Cast Steel Trunnion Mounted Ball Valve
Product Details：Trunnion mounted ball valves are designed in accordance with API 6D featuring 2 pc or 3 pc split body side entry or top entry design. This series of valves are optional designed with Double block and bleed or double piston type. All valves are equipped with sealant injection system for both stem and seats to prevent seat or stem leakage. This product line is used primarily in the Oil & Gas, Building and construction Industries, Chemical and Petrochemical services, among others.Applicable StandardDesign Standard: API 6D, ASME B16.34 Face to Face: API 6D, ASME B16.10End Connection: ANSI B16.5, ANSI B16.47, ANSI B16.25Inspection and Test: API 6D, API 598Products RangeSize: 2" ~ 24"Rating: 150lbs-600lbsBody Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex SteelTrim: A105+ENP, F6a, F304, F316Operation: Lever, Gear, Electric, PneumaticDesign FeaturesFull port or reduced portTrunnion mounted ballBlowout-proof stemDouble block & bleedEmergency sealant injectionCavity pressure self reliefFire safe design to API 607 / API 6FAAnti-static to BS 5351
Другие товары поставщика
|
|
|
Product Details：Trunnion mounted ball valves are designed in accordance with API 6D featuring 2 pc or 3 pc split body side entry or top entry desig... |
|
|
|

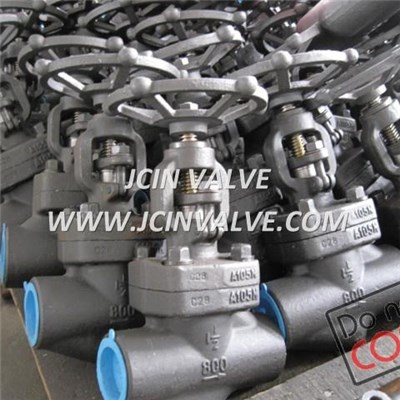

Product Details：The Globe Valves are primary used to modulate or regulate the volume of the flow,Website:, a Globe Valve is not recommended when a ... |
|
|
|
Product Details：The butterfly valve is provided with tripe-eccentric multi-layer metal sealing structure. It is mainly used for regulating flow rat... |
|
|
|

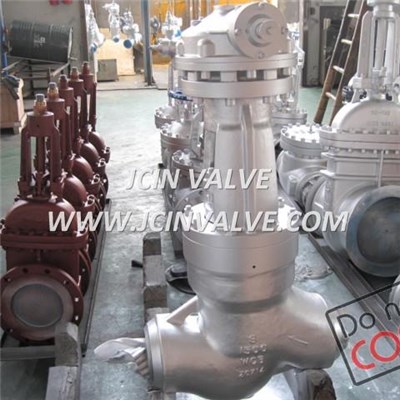

Product Details：Pressure Seal valves are used primarily, but not limited, to power generation plants with fossil, coal, thermal, gas, nuclear power... |
|
|
|

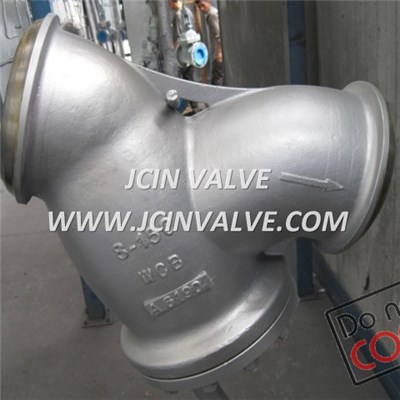

Product Details：Strainers are placed in-line with process piping to remove large solid contaminants from the flow. Strainers can be cleaned and reu... |
