Conventional Vacuum Insulation Panel (VIP)
Conventional Vacuum Insulation Panel(VIP)
Product Description
Performance Advantages: Vacuum insulation panelsare ultra-thin, high-performance thermal insulation materials with insulation efficiency up to 20 times higher than conventional materials.
Applications: Suitable for household appliances, temperature-controlled packaging, cold chain transportation systems, and any other applications requiring reduced thermal energy transfer losses, offering energy efficiency and space savings.
Environmental Features: A green and eco-friendly material that does not release ODS (ozone-depleting substances) or HCFs (hydrofluorocarbons) during production and use. The core material complies with EU RoHS and REACH standards and is recyclable.
Product Structure
The core structure of vacuum insulation panels consists of the following three components:
Core Material:
Barrier Film:
1) Independently developed and produced, with an ultra-long lifespan of 15 years.
2) High barrier performance, no thermal bridging effect, ensuring stable insulation performance.
3) Superior to the 2-3 year lifespan of food-grade barrier films used by some manufacturers.
Adsorption Material:
1) Incorporates proprietary patented getters and desiccants to ensure stable performance and extend the service life of the vacuum insulation panels.
2) Most manufacturers do not use adsorption materials, resulting in unstable performance and shorter lifespans.
In the comparison of insulation materials, fiberglass vacuum insulation panel(Fiberglass Vacuum Insulation Panel) can achieve the insulation effect of other materials several times thicker with its ultra-low thermal conductivity (only 1.3-2.5 mW) and thin thickness of 10mm. Compared with polyurethane (PU, thermal conductivity 20-30 mW), glass fiber mat (Glassfiber Mat, thermal conductivity 20-40 mW), polystyrene foam (EPS, thermal conductivity 30-37 mW) and rock wool (Rock Wool, thermal conductivity 41-45 mW), it has significant energy-saving advantages.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
|
|
Conventional Vacuum Insulation Panel (VIP) | Conventional Vacuum Insulation Panel(VIP) Product Description Performance Advantages: Vacuum insulation panelsare ultra-thin, high-performance th... |
 |
Fumed Silica Vacuum Insulation Panels (VIP) | Fumed Silica Vacuum Insulation Panels (VIP) Product Description Fumed Silica Vacuum Insulation Panels (VIP)are high-performance thermal insulatio... |
 |
Antimicrobial Lacquered Aluminum Foil for Insulation | Anti-microbial lacquered aluminum foilis specially developed for some buildings with high air quality requirements like hospital and Food storage r... |
 |
Fumed Silica Vacuum Insulation Panels (VIP) | Fumed Silica Vacuum Insulation Panels (VIP) Product Description Fumed Silica Vacuum Insulation Panels (VIP)are high-performance thermal insulatio... |
 |
Antimicrobial Lacquered Aluminum Foil for Insulation | Antimicrobial Lacquered Aluminum Foil for Insulation Product Description Anti-microbial lacquered aluminum foilis specially developed for some bu... |
Похожие товары
|
|
Conventional Vacuum Insulation Panel (VIP) | Продавец: HIGH TECH VIP | Conventional Vacuum Insulation Panel(VIP) Product Description Performance Advantages: Vacuum in... |
 |

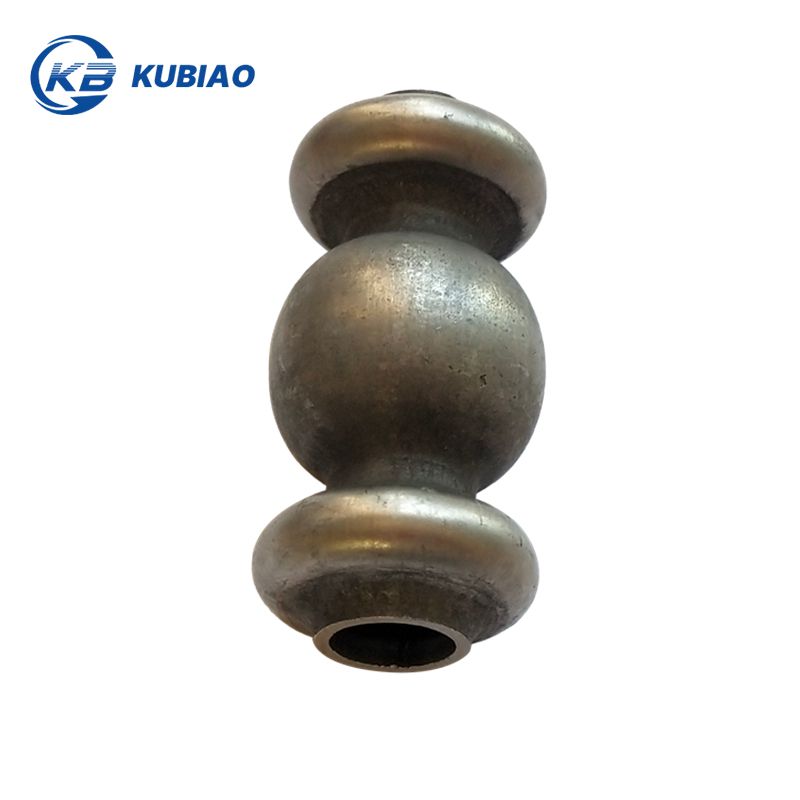

Stamping Steel Tube Collar 1/2 inch | Продавец: Shijiazhuang Kubiao Trading Co., Ltd | Stamping Steel Tube Collar 1/2 inch Product Description Steel tube collaris a popular Model tha... |
 |

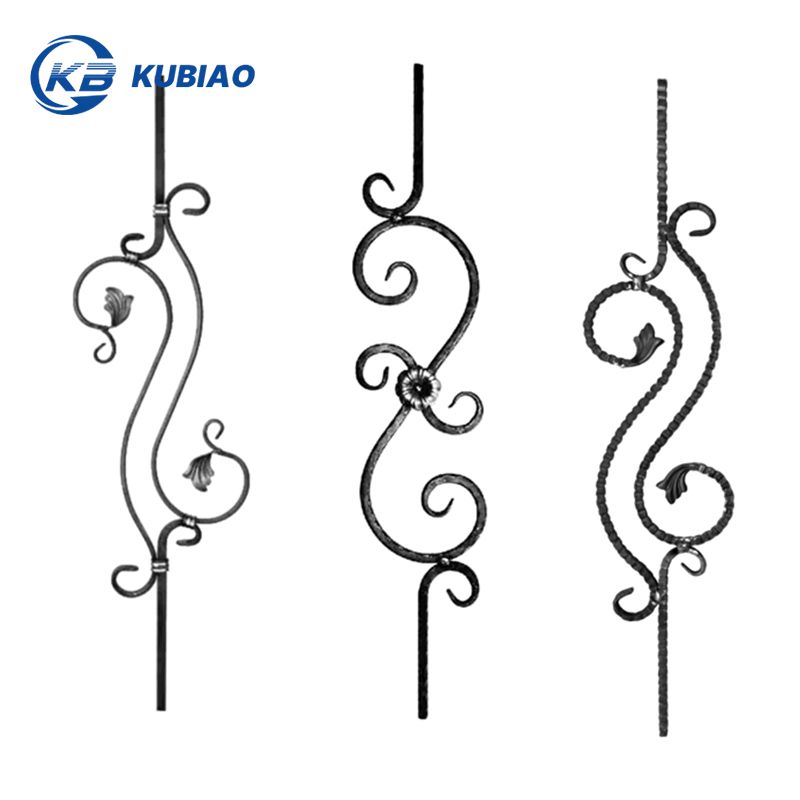

Wrought Iron Baluster for Staircase Railing | Продавец: Shijiazhuang Kubiao Trading Co., Ltd | Wrought Iron Baluster for Staircase Railing Product Description Wrought iron workis the techniq... |
 |

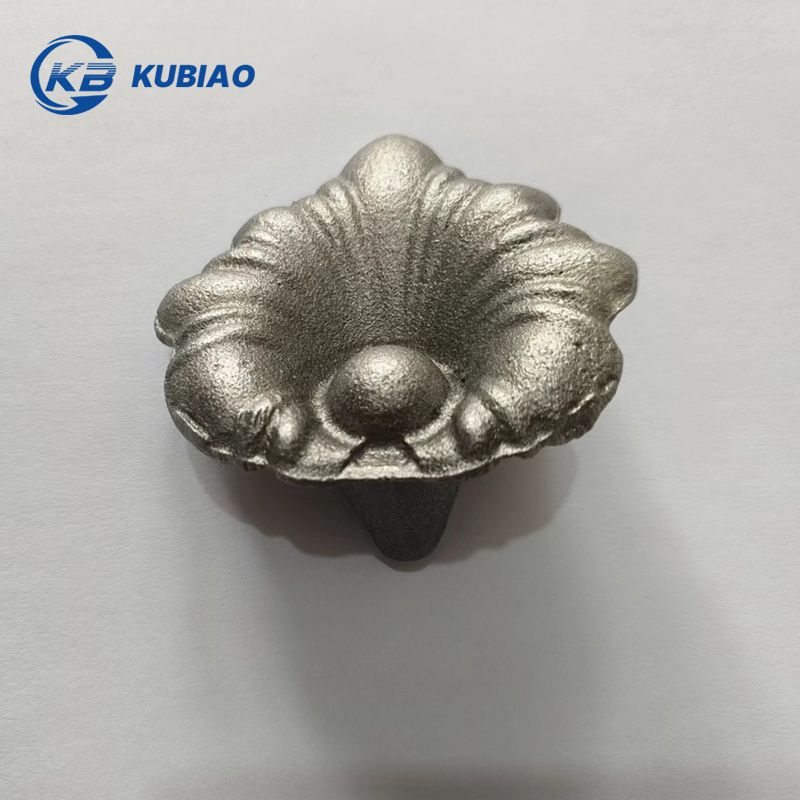

Decorative Cast Steel Flower | Продавец: Shijiazhuang Kubiao Trading Co., Ltd | Decorative Cast Steel Flower Product Description Cast steel ornamentsperform well in the manufa... |
 |

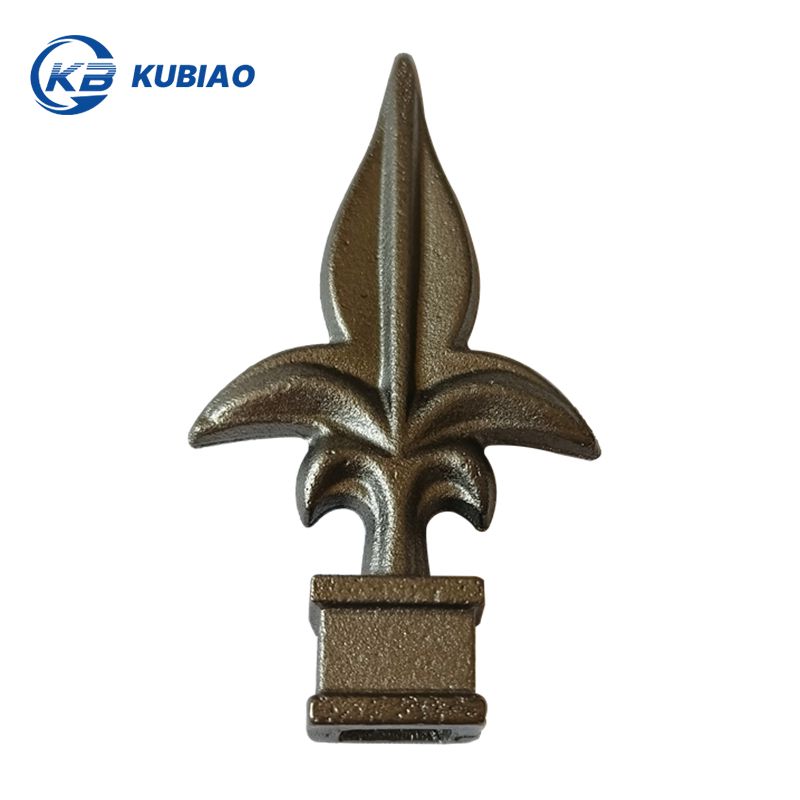

Cast Iron Spearhead | Продавец: Shijiazhuang Kubiao Trading Co., Ltd | Cast Iron Spearhead Product Description We offer a wide range of cast iron Spearheads, includin... |
