Electric Pallet Truck AD206-D210
FEATURES
This electric pallet moveris
Easyt Use
Thickened alloy steel plate
Compression-resistant, wear-resistant
and durable
Specs of electric pallet mover
|
Item |
Unit |
Model:AD |
||
|
Configurationnumber |
D206 |
D250 |
D210 |
|
|
Type |
narrow legs |
narrow legs |
narrow legs |
|
|
Mast type |
two level standard |
Level 3 full freedom |
two level standard |
|
|
Rated load |
kg |
1600 |
1600 |
2000 |
|
Load centerdistance |
mm |
600 |
600 |
600 |
|
Wheelbase |
mm |
1325 |
1375 |
1325 |
|
Operationtype |
Walk/Ride |
|||
|
Wheel Type(Front/Rear) |
PU |
PU |
PU |
|
|
Number ofdrive wheels/balance wheels/load wheels |
1/2/4 |
1/2/4 |
1/2/4 |
|
|
Standard MastLifting Height |
mm |
1400/2000/2500/3000/3300/3600/4000 |
3700/3900/4200/4500/4700/5000 |
1400/2000 |
|
Fork minimumheight |
mm |
90 |
90 |
90 |
|
Standard forkspecifications (length/width/thickness) |
mm |
1150(1220)/185/55 |
1150(1220)/185/55 |
1150(1220)/185/55 |
|
The fulllength of the vehicle with the pedals stowed/down |
mm |
2081/2522 |
2130/2454 |
2081/2522 |
|
Body width |
mm |
856 |
957 |
856 |
|
The maximumheight of the vehicle during mast operation |
mm |
1900/2500/3000/3500/3800/4100/4500 |
4200/4400/4700/5000/5200/5500 |
1900/2500 |
|
The staticheight of the whole vehicle when the mast is retracted |
mm |
1185/1535/1765/1980/2135/2335/2500 |
1800/1900/198512085/2135/2235 |
1185/1535 |
|
Minimumturning radius, pedal stowed/down |
mm |
1592/2030 |
1650/2087 |
1592/2030 |
|
Minimum right-angle stacking aisle width(pallet 800×1200, 1200 placed alongthe fork) |
2205/2632 |
2253/2680 |
2205/2632 |
|
|
Minimum right-angle stacking aisle width(pallet 1000×1200, 1200 placed along the fork) |
2233/2654 |
2280/2702 |
2233/2654 |
|
|
Minimumground clearance |
mm |
30 |
30 |
30 |
|
Maximumdriving speed, full load/no load |
km/h |
5/5 |
5/5 |
4/4.5 |
|
Maximumlifting speed, full load/empty load |
mm/s |
130/230 |
130/230 |
90/170 |
|
Maximumdescent speed, full load/no load |
mm/s |
130/230 |
130/230 |
80/170 |
|
Gradeability,full load/empty load |
% |
5/7 |
5/7 |
5/7 |
|
Drivemotor/lift motor/steering motor |
kw |
|||
|
batteryvoltage |
v |
24 |
24 |
24 |
|
Batterycapacity |
Ah |
280 |
280 |
280 |
|
brake |
electromagnetic /regenerative |
|||
|
Controllermodel |
CURTIS |
|||
|
Batteryweight |
kg |
235 |
235 |
235 |
|
Weight(including battery) |
kg |
2m1220 |
||
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

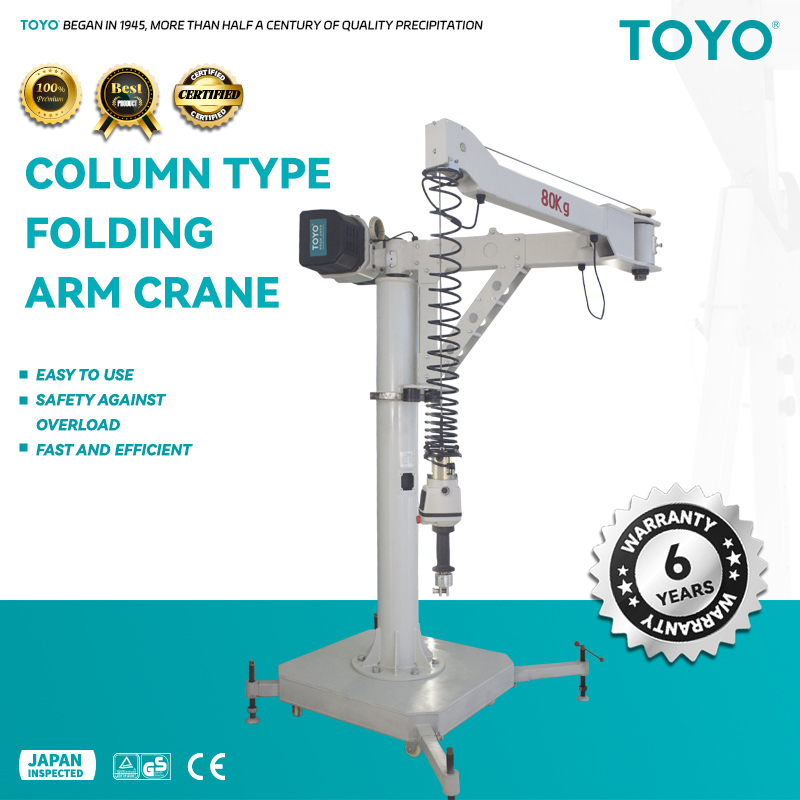

Column type folding arm crane | BASIC INTRODUCTION Product Name: TOYO Column type folding arm crane Key Component: Equipped with a pure copper motor FEATURES 360 degree no d... |
 |
YG round stock grabs | BASIC INTRODUCTION Product Name: TOYO YG round stock grabs Working Load Limit (WLL): 0.5 – 5T Applicable Material Specification: Designed ... |
 |
W12-ELECTRIC STAGE CHAIN HOIST | BASIC INTRODUCTION Product Name: TOYO W12-ELECTRIC STAGE CHAIN HOIST Shell Material: The whole machine shell is made of aviation aluminum. Safet... |
 |

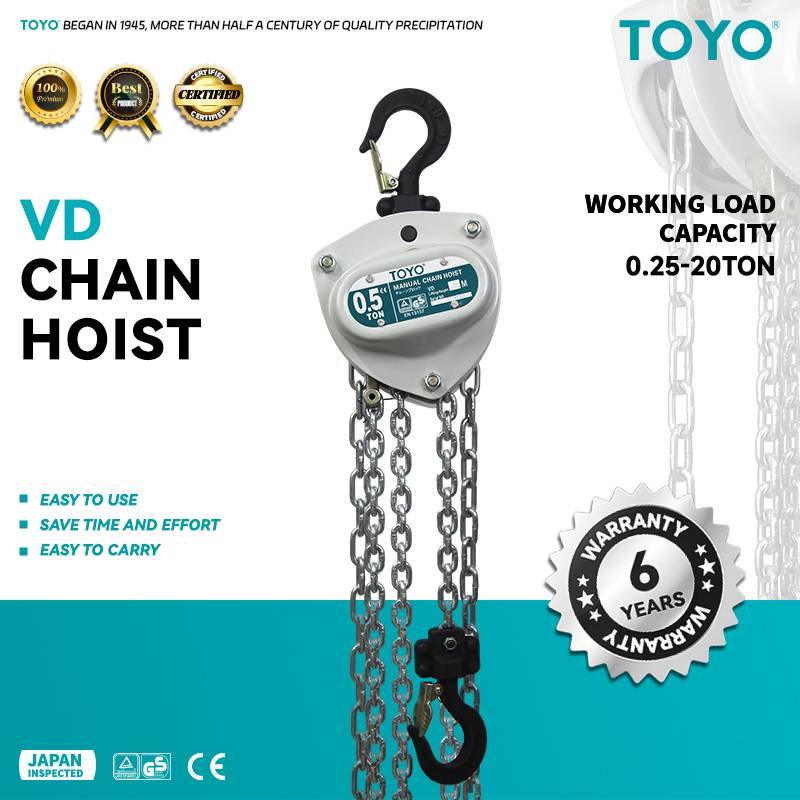

VD Manual Chain Hoist 1-5 Tons, With G80 Chain, Hooks With Safety Factor 1:4 Gearbox Durability | The gearbox and brake cover feature bag-type nuts for fasteners, protecting bolts and significantly enhancing maintenance convenience. Bearing S... |
 |

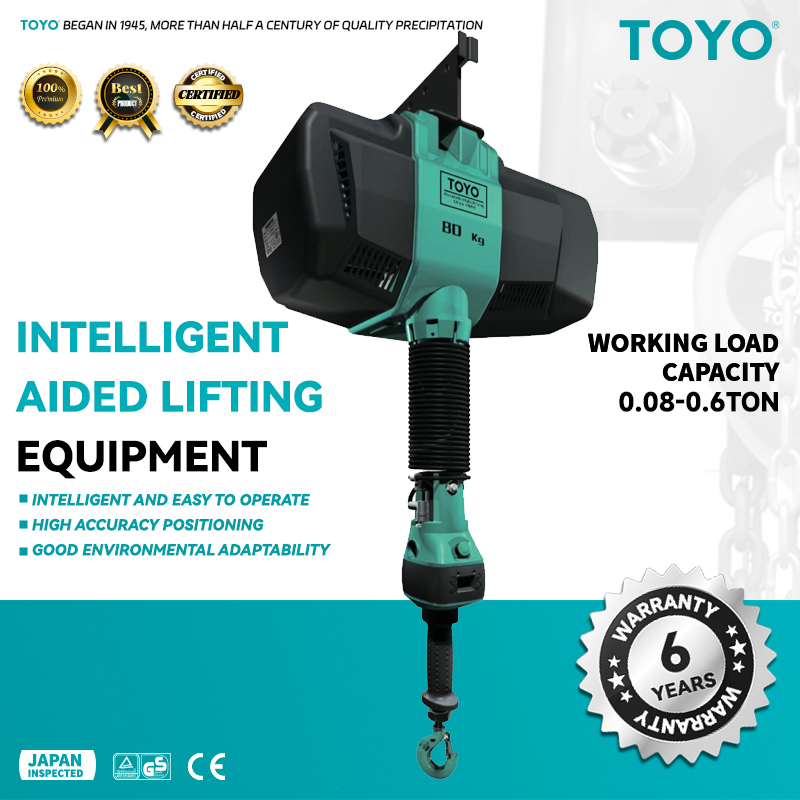

Intelligent Aided Lifting Equipment | BASIC INTRODUCTION Product Name: TOYO Intelligent Aided Lifting Equipment, electric hoist with remote control Control Method: Control the operat... |
Похожие товары
|
|
YG round stock grabs | Продавец: HEBEI KUNDA HOISTING EQUIPMENT CO., LTD | BASIC INTRODUCTION Product Name: TOYO YG round stock grabs Working Load Limit (WLL): 0.5 &ndash... |
 |
T-PORTABLE ELECTRIC HOIST | Продавец: HEBEI KUNDA HOISTING EQUIPMENT CO., LTD | T-PORTABLE ELECTRIC HOISTBASIC INTRODUCTION Control: Direct – coupled DC control, quick &n... |
|
|
Electric Pallet Truck AD206-D210 | Продавец: HEBEI KUNDA HOISTING EQUIPMENT CO., LTD | FEATURES This electric pallet moveris Easyt Use Thickened alloy steel plate Compression-res... |
|
|
W12-ELECTRIC STAGE CHAIN HOIST | Продавец: HEBEI KUNDA HOISTING EQUIPMENT CO., LTD | BASIC INTRODUCTION Product Name: TOYO W12-ELECTRIC STAGE CHAIN HOIST Shell Material: The whole ... |
 |

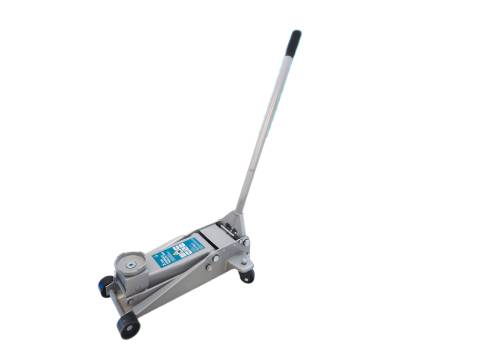

Floor Jack | Продавец: HEBEI KUNDA HOISTING EQUIPMENT CO., LTD | BASIC INTRODUCTION Product Name: TOYO Floor Jack Key Components: Equipped with an oil cylinder ... |
