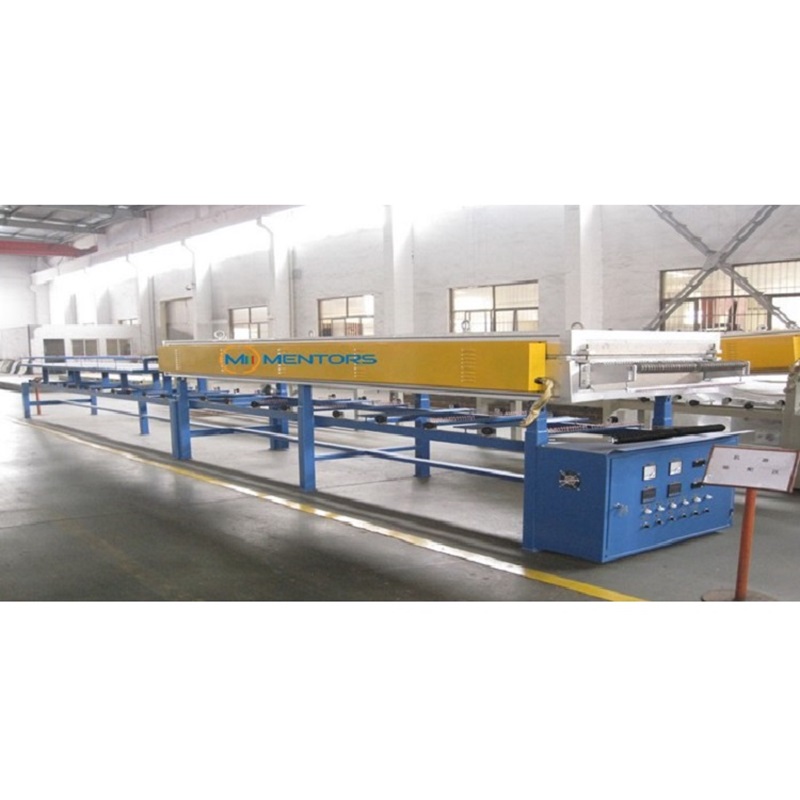

6M Annealing and Tinning Machine
1-Application:
This machineis special used for annealing and tinning 40 to 60 copper wires 0.08-0.32 mm at the same time.Finished wire is can be winded by small plastic bobbin or bigger 630 spool .
2-Main Feature:
(1)Wire Dia:0.1-0.65 mm
(2)Drawing Speed:5 m/s
(3)Single or double layer
3-Parameters:
|
Item |
Data |
|
Machine type |
SY-40H/6 |
|
Length of annealing tank |
6m |
|
Wire dia |
Φ0.10-Φ0.65mm |
|
Pay-off stand |
By brush wire |
|
300m/min |
|
|
Tin-coating type |
Dual tank by heater(optional) |
|
Pay-off bobbin size |
Φ300 or customized |
|
Spool bobbin size |
PT5-PT25 or customized |
|

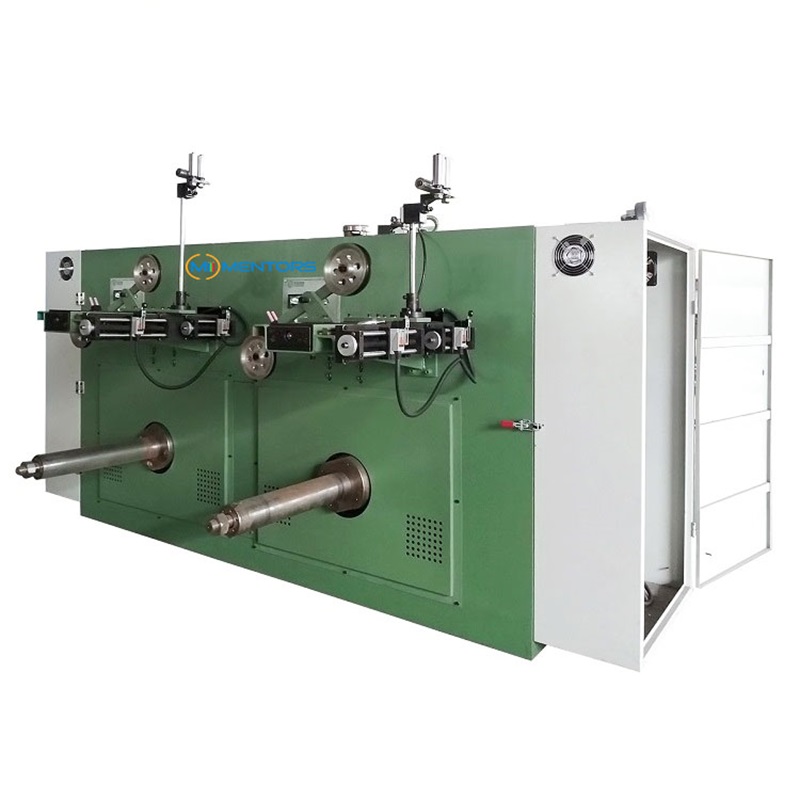

Take-up type |
Single spooler drive by torque motor |
|
Annealer |
Continuous annealing by heater |
|
Total power consumption |
65KW |
|
Machine dimension |
20000L×2200W×1900Hmm |
4-Advantages:
(1)Add one room inside the annealing, which can make the temperature impartial distribution.
(2)It is energy-saving (good heat preservation effect) and high efficiency (low Maintenance rate).
(3)Support steel for annealing tube won't touch up and down site of the annealing body,the heat won't be dissipated quickly.

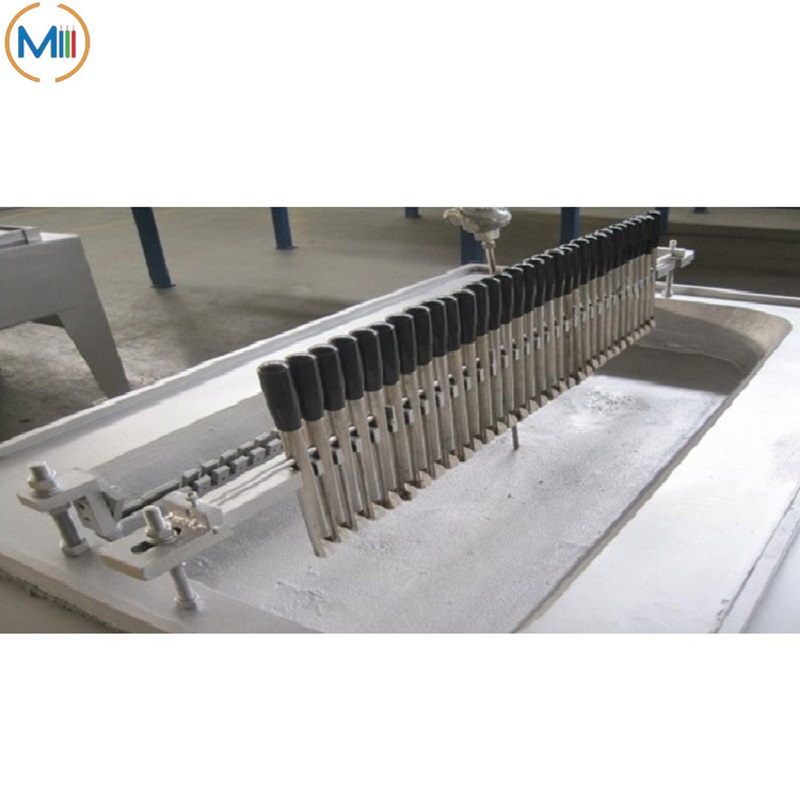

(4)Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
