Leather Vamp Flexing Extensibility Testing Machine

•

Get a quote：

Whats/App: +86 185 0176 3615

Web: qinsun-lab.com

Introduction:

Vamp Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue. In particular the test simulates conditions in the vamp part of footwear during walking. The test can be conducted with either wet or dry specimens at room temperature. The method is applicable to all flexible materials and in particular those used to manufacture outers and linings of footwear uppers such as leathers, coated fabrics and textiles.

Principle:

A square specimen of the material is folded over two inverted V-shaped clamps. The clamps are able to move relative to one another so that as they become closer the specimen is flexed to produce one downward crease surrounded by four upward creases. During the test the clamps oscillate at a constant speed so that the specimen is repeatedly flexed. After a predetermined number of cycles the test is stopped and the specimen is visually examined for signs of damage or salt square.

How are Flexibility of shoe vamps measured?

ISO5423 shoe upper leather stretching and bending testing machine, this machine simulates the shoes in the process of walking, the different parts of the shoe upper leather will be subjected to forces such as stretching, squeezing, bending, etc., resulting in scratches, wrinkles or damage to the shoe material. The machine is simulating this test as a reference for the quality improvement or purchase of upper materials, and it has a power-off memory function.

Standards:

EN ISO 20344-2004 Section 6.5.2

EN ISO 22288

ISO 5423 section 5.2

SATRA TM25

GB/T 20991 Section 6.5.2

GB/T 20991 Section 6.5.2

AS/NZS 2210.2 Section 6.5.2

Parameter:

Stretching distance：(19±0.5) mm

Scaling speed：(300±30) CPM

Specimen size：(64×64) mm

Number of samples：12pcs

Fixture：40°V v-shape6.4mm (R)

Counter：6-digit LCD digital display

Power supply：1 Φ, AC 220 v, 2 a

Volume：approx. (55x35x30) cm

Weight：approx. 60kg

Другие товары поставщика

	Chest Drainage Tester	Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Chest Drainage Tester is a precision instrument designed to evaluate the perfo...
	4-station Leather Rubbing Color Fastness Tester - Test Equipment	Applicable Standards The tester adheres to global colorfastness and material testing protocols, including: ISO 11640(Leather – Color fastne...
	Low-Temperature Bending Resistance Tester	Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Application Cold Flexibility Testing (ISO 4674-2/ASTM D1790): Samples are bent 1...
	Comprehensive Engine Oil Filter Test Bench	Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The test bench is mainly used to test the differential pressure-flow characteristi...
	Bubble Leak Tester	Get a quote： Web: qinsun-lab.com Email：serving@qinsun-lab。com The Bubble Leak Tester utilizes a positive pressure testing principle and is suita...

Похожие товары

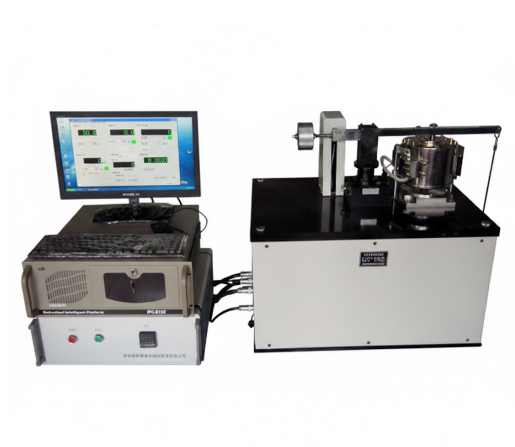

	High speed reciprocating friction wear tester	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications You can use this tester for...

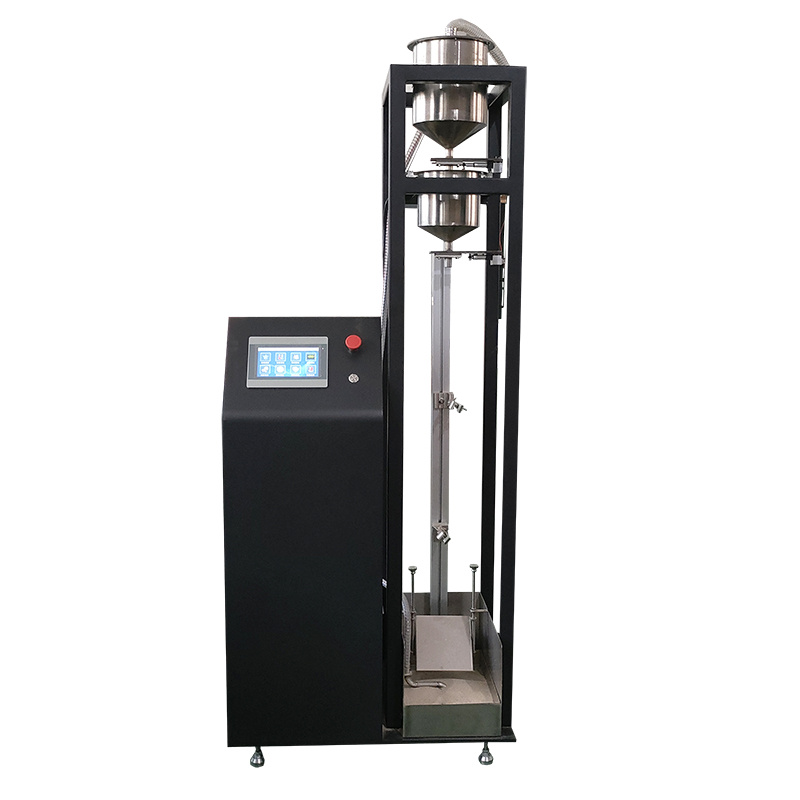

	Custom fully automatic falling sand abrasion tester	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications You can use this tester to ...

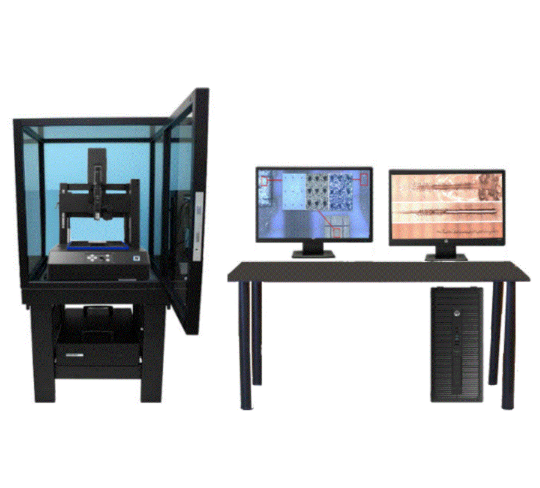

	Measuring devices for nanoindentation	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Measuring hardness and elas...

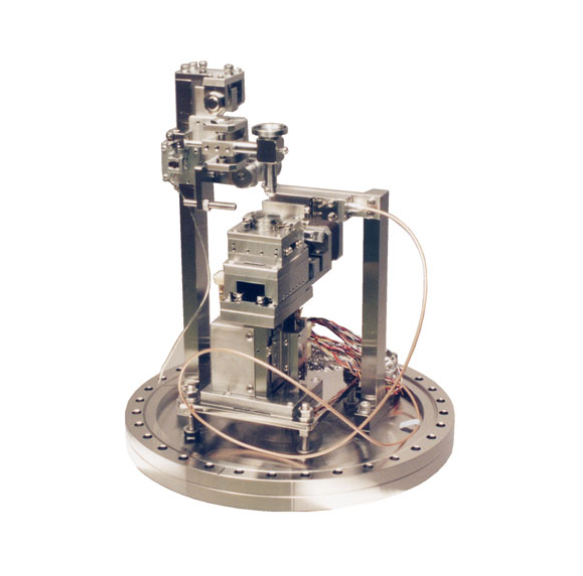

	Multi function Vacuum Tribometer	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This tester is designed for ...

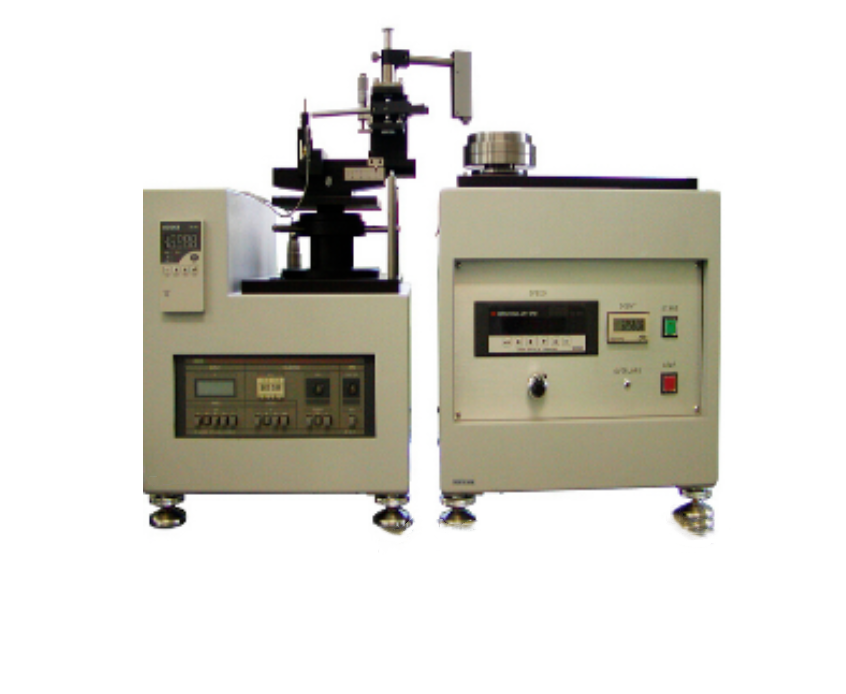

	Custom low-load wear testing instrument	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Low-Load Wear Testing Ma...
