Floor Material Burning Performance Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Email: serving@qinsun-lab。com
Theis used to tester a variety of flooring materials, such as: textile carpets, cork, wood, rubber and plastic flooring and floor spray materials. The results can reflect the combustion properties of the floor material (including the substrate), which is used in the test combustion chamber to ignite the floor material placed horizontally and exposed to the tilted thermal radiation field with a small flame. It can be used to evaluate the material flame Communication ability.
Standards
ASTM E648-15 Standard test method for critical radiant flux of floor-covering systems using radiant heat energy source
BS EN ISO Reaction to fire test for flooring-Part1: Determination of the burningbehavior using a radiant heat source
GB/T 11785-2005 Determination of Combustion Performance -Floor material radiation heat source method
Technical Parameters
| Items | Parameters |
| Radiant heat source | Radiation surface size is (300 × 450) mm ± 10mm, the radiation plate can withstand the high temperature of 900 ℃ |
| Specimen fixture | It is made of refractory and (2.0 ± 0.1) mm L-shaped stainless steel. The size of the exposed surface of the specimen is (200 ± 3) mm × (1015 ± 10) mm |
| Igniter | Stainless steel igniter is used for ignition of the specimen. The center line on the average distribution of 19 diameter 0.7mm a radial hole, the center line of 60 degrees on the average distribution of 16 diameter 0.7mm radial hole |
| Propane rotor flow | Propane gas flow can control at (0.026 ± 0.002) L / s, to ensure that the ignition flame height is (60 ~ 120) mm |
| Power supply | AC380V three-phase five-wire system |
| Smoke removal rate | 2.5 ± 0.2 m / s |
| Smoke capacity | 39 ~ 85 m3/ min |
| Items | Parameters |
| The heat balloon anemometer measures the flow rate of the exhaust channel with an accuracy is ± 0.1 m / s | |
| Water-cooled heat flux meter | Heat flux meter Measuring range: 0 ~ 15Kw / m² |
| Heat flux range accuracy | ± 0.2Kw / m2 |
| Heat flux accuracy | <± 3% |
| Temperature sensor | K-type stainless steel installed two thermocouple, diameter is 3.2 mm. Respectively installed in the floor material radiation test box and the flue from the top of the box flue (150 ± 2) mm |
| Radiation pyrometer | The test range is (480 ~ 530) ℃ (black body temperature). The accuracy is ± 0.5 ℃. It is about 1.4m away from the radiation plate. The sensitivity of radiation pyrometer is constant in the wavelength of 1μm to 9μm range |
Features
The main components are imported, which is safe and reliable, long service life;
Gas pipeline layout is reasonable, equipped with gas leakage and tempering device. The instrument automatically closes at the inlet of gas leakage, and alarm;
Radiant plate temperature can be automatically adjusted.
Propane gas supply is equipped with imported mass flow controller. The air output is equipped with a separate blower. Automatic adjustment of the frequency without manual;
Normal test, the flame spread distance can be recorded through the foot switch, without the need to manually click the mouse to operate the computer;
Instrument with industrial one machine, is easy to operate and reliable;
The instrument adopts advanced control software developed by VB language. Centralized control acquisition and processing data analysis;
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Multi-Finger Scratch/Mar Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Multi-finger scratch/wear testers are widely used in materials science, engineerin... |
 |
Protective Clothing Chemical Liquid Penetration Resistance Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Protective Clothing Chemical Liquid Penetration Resistance Tester is designed ... |
 |
Scratch tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Scratch Resistance Tester (KK01 / KK02 / KK03) is designed to evaluate the scr... |
 |
Spray Rating Tester - lab instrument | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com We are a professional testing instrument manufactur... |
 |
Carbon Arc Aging Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com Material aging and fading performance test SI80 ca... |
Похожие товары
 |

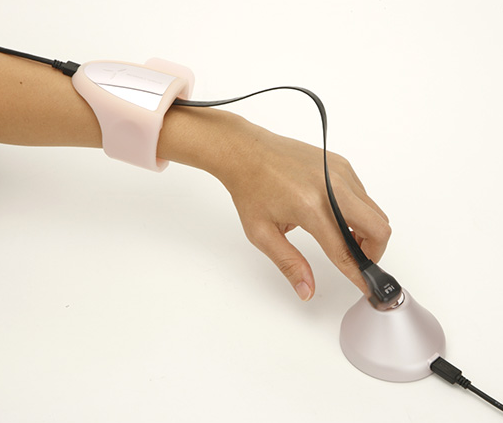

Advanced haptic feedback skill logging system | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application You can apply the Haptic Ski... |
 |
Contact cooling characteristic tester | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application You can apply this tester to... |
 |

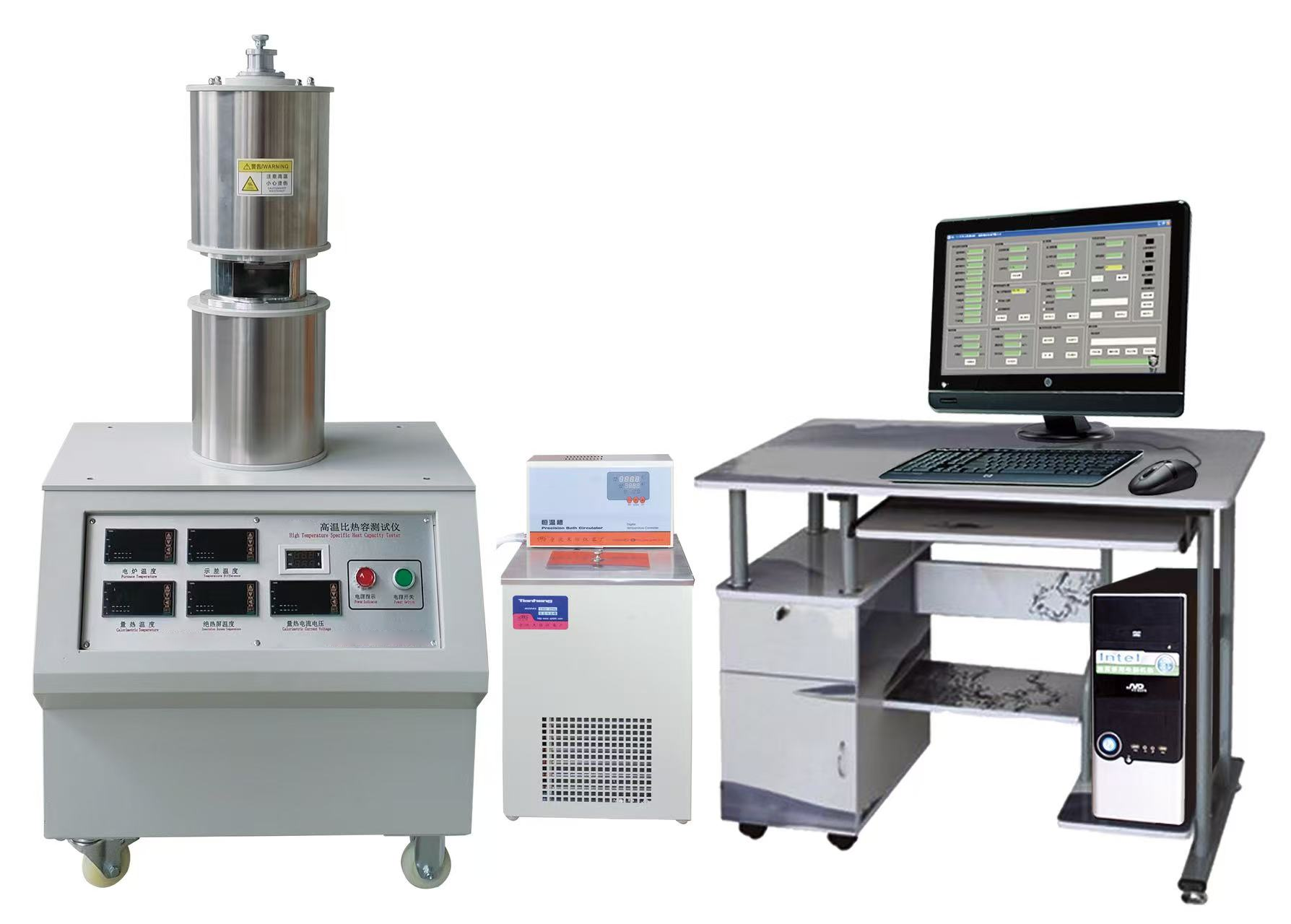

Automated thermal property analyzer for high-temperature materials | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The tester is suitable for: ... |
 |

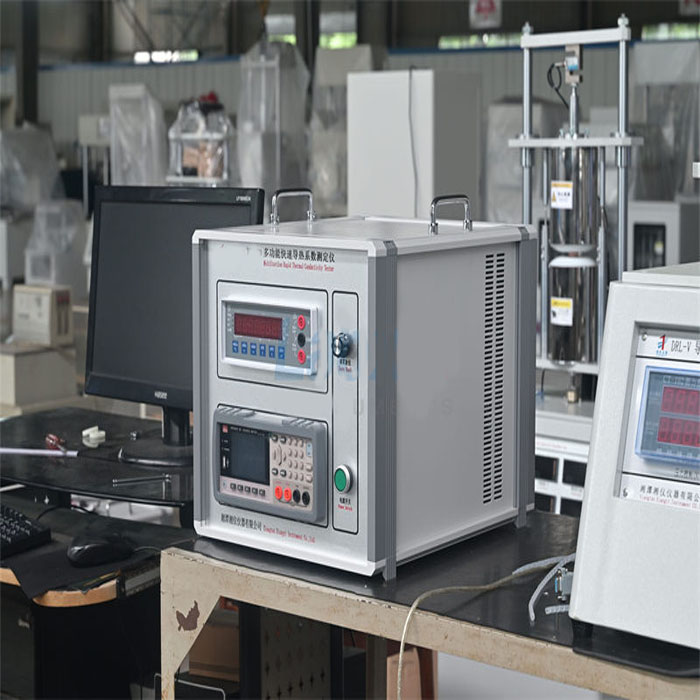

High-precision rapid thermal conductivity tester for geotechnical materials | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This testeris designed for t... |
 |

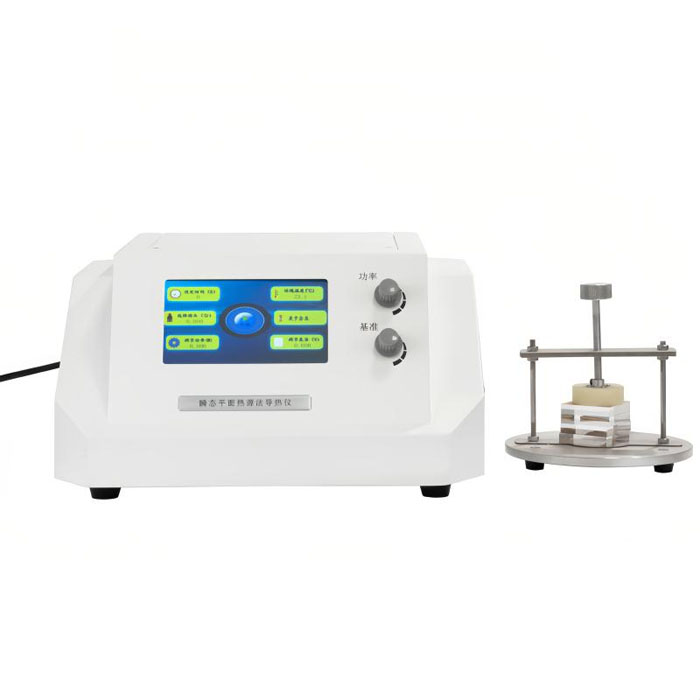

Automated TPS and Hot Disk thermal conductivity analyzer | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The tester is widely used fo... |
