Fogging Tester
Fogging Tester is mainly used to test the evaporation of volatile components in materials such as interior plastic parts of automobiles and aircraft, polyurethane, textiles, leather, adhesives, non-woven fabrics, and thermoplastic elastomers at high temperatures.
Standards
DIN 75201: Automotive trim material fogging resistance.
ISO 6452: Coated fabrics fogging behavior in vehicle interiors.
SAE J1756: Automotive interior material fogging test protocol.
BS EN 14288 & QB/T 2728: Leather and textile fogging evaluation.
PV 3920/3015: VDA-standard fog value determination for non-metallic materials.
ES-X83231. NES M0161. GM 9305P: OEM-specific fogging requirements for automotive suppliers.
Product Advantages
Triple Testing Modes: Supports gloss, gravimetric, and haze analysis for comprehensive material evaluation.
Precision Temperature Control: ±0.1°C accuracy across high/low baths (room temperature to 150°C) ensures repeatable results.
Six-Station Efficiency: Simultaneous testing of six samples accelerates R&D and QC workflows.
Corrosion-Resistant Design: 316 stainless steel test chambers and epoxy-coated steel frame withstand harsh chemical environments.
Advanced Safety: Magnetic safety switch, over-temperature thermostat, and audible test-completion alerts.
Data Connectivity: USB port and multi-function sensors enable seamless integration with lab information systems.
Product Features
Dual-Bath System:
High-Temperature Bath: 670×490×540mm, 3kW heating power (up to 150°C).
Low-Temperature Bath: 400×220×520mm, 500W cooling capacity (0–100°C).
Automated Controls:
Digital thermoregulator with microprocessor for precise temperature programming.
Programmable timer (1–9999 min) with auto-stop and end-test buzzer.
Modular Accessories:
18/8 stainless steel test cups, flat beakers, and chrome steel rings for sample mounting.
Six interchangeable cooling plates and haze/gloss measurement kits.
Safety Compliance:
CE-certified with anti-acid epoxy coating, emergency stop, and overpressure relief.
Technical Parameters
| Parameter | Specification |
|---|---|
| High-Temperature Range | Room temperature – 150°C (280°C optional) |
| Low-Temperature Range | 0–100°C |
| Temperature Stability | ±0.1°C (at 200°C) |
| Heat-Up Time | <45 min (to 150°C) |
| Cooling Capacity | 500W (low bath) |
| Power Supply | AC 220V, 50Hz, 3.5kW |
| Dimensions | 500 (W) × 650 (D) × 600 (H) mm |
| Net Weight | 50 kg (excluding thermal media) |
| Data Interface | USB 2.0. remote sensor compatibility |
| Safety Systems | Magnetic switch, thermostat, audible alerts |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

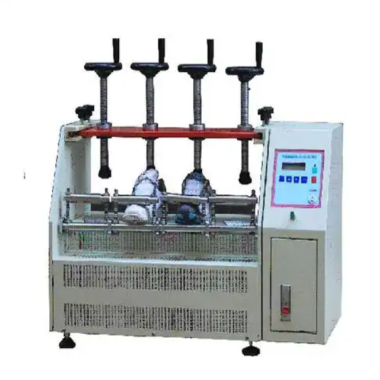

Low-Temperature Bending Resistance Tester | Applicable Standards The tester adheres to international standards for material testing at low temperatures, including: ISO 4674-2(Rubber- or pla... |
 |
