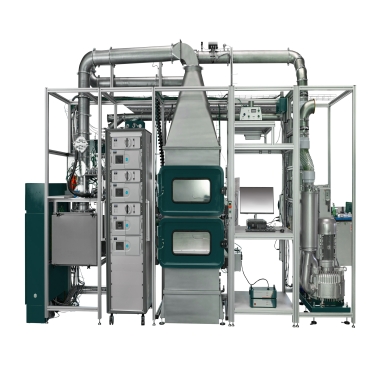

Filter media test rig according to ISO 16890
Application
The system is applicable for:
(1) Cleanable Filter Media: Testing in accordance with VDI 3926-2.
(2) Air Filter Testing:
- General air filters (ISO 16890, EN 779, ASHRAE 52.2)
- High-efficiency filters (EPA, HEPA, ULPA, ISO 29463)
- Cabin air filters (DIN 71460-1 / ISO/TS 11155-1)
- Engine intake filters (ISO 5011)
(3) Filter Media Development and Optimization: Laboratory and R&D testing.
(4) Quality Assurance: In-line production monitoring and final inspection.
(5) Flat Media Quality Control: Pre-processing or post-production inspection of planar media.
Standards
The system can execute and complies with:
(1) ISO 16890 – Air filter classification standard.
(2) ISO 29463 – High-efficiency filter performance standard (EPA/HEPA/ULPA).
(3) ISO 5011 – Engine and industrial machinery air filter testing.
(4) ISO/TS 11155-1 – Automotive air filter performance testing.
(5) ISO 11057 – Clean air filter media performance testing.
(6) VDI 3926-2 – Characterization of cleanable filter media.
(7) EN 779 – High-efficiency air filter testing.
(8) ASHRAE 52.2 – Air filter performance standard.
(9) DIN 71460-1 – Automotive intake filter performance testing.
Parameters
| Parameter | Unit | Value |
|---|---|---|
| Test Flow Rate | m³/h | 0.4 … 40 or 2 … 64 |
| Test Aerosol | – | Custom (DEHS, paraffin oil, NaCl, PSL, etc.) |
| Test Specimen Dimensions | mm | Diameter ≤ 150 |
| Operating Gas/Air Supply | – | Laboratory air; compressed air 6 bar |
| Power Supply | – | 400 VAC, 16 A |
| Ambient Temperature | °C | 0 … 50 |
| Relative Humidity | % | 0 … 100 |
| System Dimensions (W × H × D) | mm | 2100 × 1400 × 850 |
| Weight | kg | approx. 300 |
