Medical injection needle rigidity tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
Application
TheMedical injection needle rigidity tester is suitable for rigidity testing of medical injection needles in the following industries and products:
(1) Medical Device Manufacturing: Quality control of single-use, sterile injection needles.
(2) Research & Development: Testing new needle designs, wall thicknesses, and mechanical properties.
(3) Regulatory & Certification Labs: Compliance testing according to national and international standards.
(4) Third-Party Testing Organizations: Verification of needle rigidity for certification and reporting.
(5) Educational & Training Institutions: Demonstration and training on needle testing protocols.
Standards
The instrument is compliant with the following standards, including relevant international regulations:
(1) GB 18457-2001 – Medical Injection Needle Rigidity Performance Testing Standard
(2) ISO 7864:2016 – Sterile Hypodermic Needles for Single Use – Requirements and Test Methods
(3) ASTM F899-16 – Standard Test Method for Determining Needle Rigidity and Flexibility
(4) EN ISO 9626:2016 – Stainless Steel Needles for Medical Use – Mechanical Requirements
Features
(1) Precision compliance: engineered to meet global medical standards
(2) High accuracy: deflection measurement ±0.01 mm, load control ±0.1 N
(3) Versatile: supports needle diameters 0.3–3.4 mm and wall types (normal, thin, ultra-thin)
(4) User-friendly: automated testing, simplified setup
(5) Durable construction: compact, robust design (25 kg) with lifetime standard upgrades
(6) Adjustable span distance: 0–55 mm with ±0.5 mm accuracy
(7) Controlled loading speed: 1 mm/min ±0.1 mm/min
(8) Ergonomic design: compact footprint (460 × 340 × 400 mm) for laboratory efficiency
Technical Parameters
| Parameter | Specification |
|---|---|
| Deflection Measurement | 0–5 mm, Accuracy ±0.01 mm |
| Load Capacity | 5.5–60 N, Accuracy ±0.1 N |
| Span Adjustment | 0–55 mm, Accuracy ±0.5 mm |
| Needle Compatibility | 0.3–3.4 mm (Normal/Thin/Ultra-Thin Wall) |
| Loading Speed | 1 mm/min ±0.1 mm/min |
| Dimensions (L×W×H) | 460 × 340 × 400 mm |
| Weight | 25 kg |
| Power Supply | AC 220 V / 50 Hz or Customized |
| Warranty | 1 Year + Lifetime Standard Upgrades |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

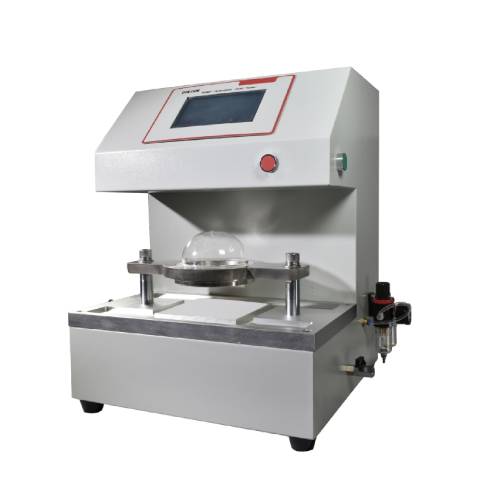

Hydrostatic Pressure Tester | ASTM ISO Testing Machine | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The G018P Hydrostatic Pressure Tester is an upgraded version of the G018, designed... |
 |
