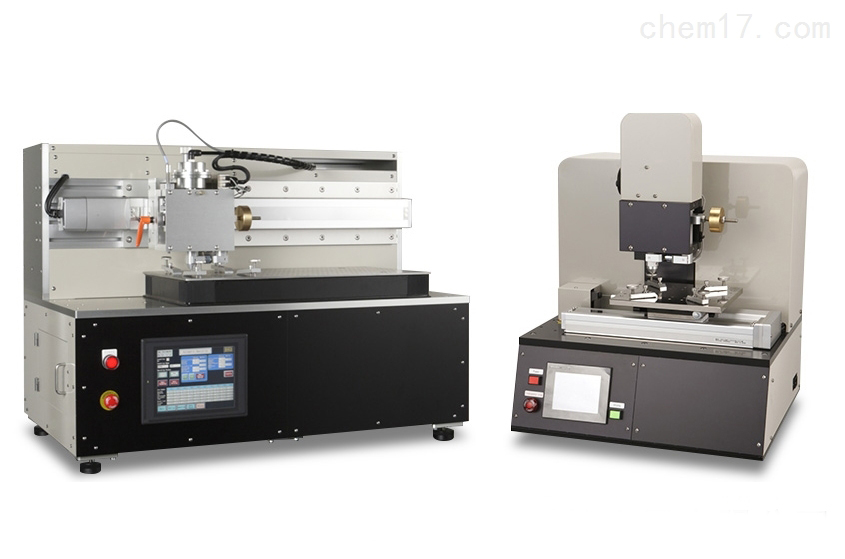

Scratch Resistance Tester KK-01，ISO 19252 abrasion and scratch protective material tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
The KK-01 Scratch Resistance Tester is designed to evaluate the scratch resistance of plastics, films, coatings, and automotive interior and exterior materials under high load conditions. By applying a vertically increasing load through a scratch stylus and moving it horizontally across the sample surface, you can quantitatively determine scratch behavior and surface damage characteristics, supporting material development and durability assessment.
Application
You can use the KK-01 for the following applications and test materials:
Scratch resistance evaluation of plastic molded products
Scratch performance testing of coated and painted surfaces
Scratch durability assessment of automotive interior and exterior components
Scratch testing of optical materials, packaging materials, and electronic housings
Material research, formulation comparison, and quality control under high-load conditions
Standards
ISO 19252 — Plastics — Determination of scratch resistance of plastics and coated plastics by progressive load test
ASTM D7027-05 — Standard Test Method for Instrumented Indentation Test for Plastics (Scratch Resistance Test)
Parameters
| Parameter | Specification |
|---|---|
| Model | KK-01 |
| Dimensions | W965 × D530 × H690 mm |
| Weight | 150 kg |
| Power supply | AC 100 V |
| Maximum power consumption | 60 W |
| Operating environment | 10–40 ℃, 30–70 %RH, non-condensing |
| Test method | Progressive load method |
| Scratch direction | Left → Right |
| Vertical load range | 1–200 N |
| Horizontal load | Max. 200 N |
| Scratch distance | Max. 400 mm |
| Scratch speed | 1–400 mm/s |
| Scratch depth detection | Laser displacement sensor |
| Sample size | 200 × 420 mm, thickness ≤ 5 mm |
Features
Wide vertical load range up to 200 N, suitable for high-strength materials
Progressive load application compliant with ISO and ASTM requirements
Touchscreen interface for intuitive parameter setting and operation
Teaching function for precise positioning and repeatable testing
Suspension mechanism enabling stable testing on uneven sample surfaces
Storage of up to 20 test condition sets for repeatability and comparison
USB data output supporting large-volume test data storage
Accessories
(1) Standard scratch stylus Φ1 mm
(2) Optional scratch styli for different scratch modes
(3) USB connection cable
(4) Software and user manual
(5) Safety cover (optional)
Test Procedures
Secure the sample on the test stage and ensure surface stability.
Set vertical load, scratch speed, and scratch distance via the touchscreen.
Use the teaching function to define the scratch start position if required.
Start the test and allow the stylus to apply load and move horizontally.
Save and export test data after completion.
Maintenance Information
Clean the stylus and test stage after each test.
Inspect the stylus regularly for wear and replace when necessary.
Keep the laser displacement sensor clean and properly aligned.
Avoid vibration and airflow interference during operation.
