Multi-Functional Tribology Tester
Get a quote：
Web: qinsun-lab.com
Email：serving@qinsun-lab。com
The Multi-Functional Tribology Tester is a high-precision friction and wear testing system designed for materials science, lubricants, oil additives, self-lubricating systems, and the development and quality control of new materials. The device can simulate a variety of real-world conditions, including rotational or linear reciprocating motion, different contact modes, sliding speeds, lubrication conditions, material combinations, temperature, and humidity, providing comprehensive solutions for friction and wear testing.
Applications
You can use this tester for:
Friction and wear testing of metals, ceramics, and polymer materials
Evaluating performance of lubricants and oil additives
Research on wear resistance of self-lubricating systems and coating materials
Laboratory materials development and quality control
High-temperature or liquid environment tribology experiments
Standardized industrial and research tribology studies
Standards
ASTM G99-17: Standard Test Method for Wear Testing of Metal-Metal Sliding Contacts
ASTM G133-05: Standard Test Method for Wear Testing of Rubber and Polymers
DIN 50324-2010: Friction and Wear Testing Standards
Technical Specifications
| Item | Specification |
|---|---|
| Normal Force Range | Up to 60 N |
| Friction Force Range | Up to 20 N (optional 5 N) |
| Friction Force Resolution | 0.06 mN (optional 0.015 mN) |
| Rotational Motion Speed | 0.2–2000 rpm (optional 600 rpm) |
| Rotational Radius | Max 40 mm |
| Maximum Torque | 450 mN·m |
| Linear Reciprocating Stroke | Max 60 mm |
| Linear Reciprocating Speed | Up to 370 mm/s |
| Linear Reciprocating Frequency | 0.01–10 Hz |
| Rotational Reciprocating Speed | 0.2–2000 rpm (optional 600 rpm) |
| Rotational Reciprocating Frequency | 0.01–7 Hz |
| Rotational Reciprocating Angular Amplitude | ±5° to ±150° |
| Deflection Angle Resolution | 0.1° |
| Environmental Control (Optional) | Temperature: up to 450℃ (dry), 150℃ (liquid); Relative humidity: 15–95%; Vacuum: ≤10⁻⁷ mbar |
| Online Measurement (Optional) | Wear depth: -2 mm to 2 mm |
| Control System | Integrated sensors for real-time monitoring of temperature and humidity, supports “Stress Model” analysis software |
| Software Functions | Standard, incremental, and user-defined parameters; Python programming interface for cyclic and reciprocating motion analysis |
Features
Dual Friction Force Sensors: Minimizes thermal drift and ensures reliable data during long-term testing or environmental changes
Real-Time Environmental Monitoring: Integrated sensors record temperature, humidity, and friction force over time, enabling correlation analysis with friction coefficients
User Calibration: You can calibrate friction force, rotational radius, and motor speed to maintain testing accuracy over time
Multiple Motion Modes: Supports rotational, linear reciprocating, and rotational reciprocating motion to simulate complex friction scenarios
High-Precision Measurement: Friction resolution up to 0.06 mN and angle resolution of 0.1°, meeting high-precision research and industrial requirements
Optional Environmental Control: Supports heating, liquid testing, vacuum, and humidity control for diverse material testing conditions
Advanced Software Analysis: Comes with “Stress Model” software for data visualization, simulating contact stress and strain distribution, and facilitating parameter selection and result evaluation
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Flame Spread Calorimeter | The Flame Spread Calorimeter is suitable for: Building materials: Evaluate flame spread and heat release performance of walls, doors, windows, cei... |
 |
Compressed air filter test bench | The Compressed Air Filter Test Bench is a fully automated system designed to measure the fractionation efficiency of compressed air filters at over... |
 |

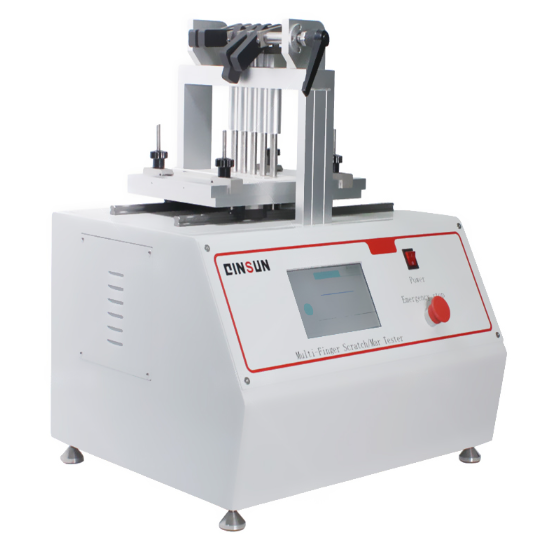

Taber muiti-finger scratch tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com Email: serving@qinsun-lab。com IntroductionTaber muiti-finger scratch tester - Mod... |
 |
