Adhesion Tester
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The adhesion tester has extensive application value in multiple fields, including but not limited to: - Medical Field: It is used to evaluate the adhesion performance of medical products such as medical gels, dressings, and patches, ensuring that they can stably adhere to the skin in practical applications and exert therapeutic effects. - Cosmetics and Skin - care Industry: It tests the adhesion of cosmetic gel products, facial masks, eye creams, etc., to ensure that they can closely fit the skin during use and enhance the product's effectiveness. - Food Manufacturing Industry: It is used to detect the adhesion performance of food - grade gels, packaging materials, etc., ensuring their stability during food processing, packaging, and transportation. - Adhesive Industry: It tests the adhesion of various adhesives, adhesive tapes, labels, etc., to evaluate their quality and performance. - Materials Science Field: It studies the adhesion performance of materials, providing basic data support for material development and application.
Standards
- Specific standards for different test objects, such as the adhesion test standards for medical gels, cosmetics and skin
- care products, food packaging materials, etc.
- General standards in the adhesive industry, such as GB/T 2792 Test Method for 180°Peeling Strength of Pressure
- Sensitive Adhesive Tapes, ASTM D3330 Standard Test Method for Peel Adhesion of Pressure - Sensitive Tape, etc. These standards specify in detail the test methods for the adhesion tester, specimen preparation, test conditions, etc., providing a unified standard for the use of the tester.
Features
1. 7-inch touchscreen control, stylish human-machine interface
2. Lead screw drive system, greatly improving the accuracy of transmission displacement and enabling stepless speed regulation.
3. Allows for parameter setting, printing, clearing, calibration, and other operations.
4. Calibration interface password protected to prevent errors in calibration force values due to accidental operation.
5. Features power-off memory, overload protection, and line position protection.
6. The instrument has applied for a patent for its sensor protection device function, patent number: ZL.8
7. Equipped with a standard USB interface and a printer interface for easy connection to a computer.
8. The instrument can complete tests independently, and the mini printer automatically prints the test results.
Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Measurement Range | Usually covering 0 - 30000mN or wider (adapts to different materials). Some devices have a smaller range (e.g., 0.01N - 100N), suitable for materials with relatively low adhesion. |
| Measurement Accuracy | Generally grade 0.5 or higher; ensures the accuracy of test results. |
| Stroke | Usually 650mm or longer; meets requirements of different specimen sizes and test methods. |
| Pressing Roller Mass | Usually 2000g±50g; applies pressure to the specimen to ensure tight adhesion between the specimen and the test plate. |
| Test Speed | Adjustable range: generally 1 - 500mm/min (stepless speed regulation) to simulate different peeling speeds; some devices have a wider speed-adjustment range. |
| External Dimensions | Usually about 880mm (length) × 320mm (width) × 400mm (height); facilitates placement and movement (dimensions vary by brand/model). |
| Power Supply | Usually AC 220V 50Hz (ensures normal operation of the tester); some devices support other voltages and frequencies. |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

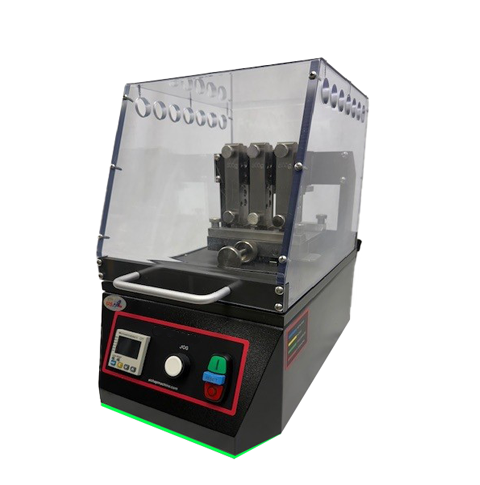

Veslic Colorfastness Abrasion Tester | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Veslic Colorfastness Abrasion Tester is designed to evaluate colorfastness und... |
 |
