Large Cone Calorimeter with Variable Atmosphere
Get a quote：
Whats/App: +86 185 0176 3615
Web: qinsun-lab.com
The Large Cone Calorimeter with Variable Atmosphere is designed to measure the heat release rate of materials based on the oxygen consumption principle. You can accurately determine material combustibility, ignition time, mass loss rate, and derived data such as effective heat of combustion and specific extinction area. During testing, samples are placed on a loading unit, heated, and ignited with an electric spark. Combustion gases are collected through exhaust and adsorption ducts, and parameters such as gas concentration, pressure, temperature, and smoke density are automatically recorded. This instrument provides a safe, fast, and reliable method for material development, fire research, and quality control.
Application
You can apply this apparatus in the following scenarios:
Material development: Evaluate thermal and combustion properties of building, decorative, or industrial materials.
Fire safety research: Study heat release, smoke generation, and flame propagation under controlled atmospheres.
Quality control: Monitor material performance to ensure compliance with fire safety standards.
Automotive and transportation: Assess heat release and smoke production of interior materials under varying atmospheric conditions.
Compatible test components: Loading unit, electric spark ignition system, exhaust and adsorption ducts, optical smoke measurement system, mass balance, data acquisition and processing software.
Standards
This apparatus conforms to the following international and national standards:
GB/T 16172‑2007 — Determination of heat release rate and total heat release of building materials and products (Cone Calorimeter Method)
ISO 5660‑1 — Heat release, smoke production, and mass loss measurement for building materials (Cone Calorimeter Method, Part 1)
ISO 5660‑2 — Heat release, smoke production, and mass loss measurement (Part 2: Flame spread testing)
ISO 5660‑4 — Heat release and smoke generation test for automotive interior materials
ISO 5660‑5 — Heat release, smoke production, and mass loss measurement: Additional assessment requirements
ASTM E1354 — Cone calorimeter method for heat release rate and visible smoke release
ASTM E2965 — Guidelines for assessing material combustibility using oxygen consumption
Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 2135 × 915 × 2810 mm |
| Weight | 650 kg |
| Mass Balance Range | 6000 g, resolution 0.01 g |
| Gas Analysis | German Siemens analyzer, high precision |
| Exhaust System | Condensation-type smoke treatment with triple filtration |
| Material Handling | Sample loading unit with automated placement |
| Software | Integrated data acquisition and analysis system |
| Operating Gas | Compressed air |
| Calibration Gases | Methane, N2. CO2/CO mixed gas |
| Power Requirement | 220V / 380V, 50 Amps |
| Operating Temperature | 10–35°C |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

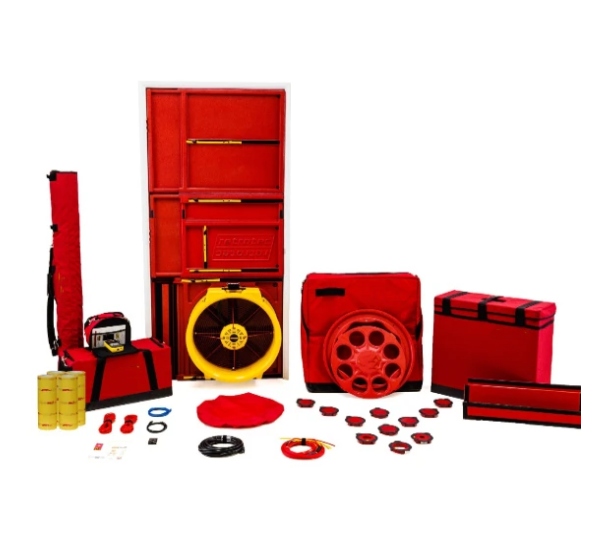

Airtightness Testing Equipment | Get a quote： Whats/App: +86 185 0176 3615 Web: qinsun-lab.com The Protected Area Airtightness Testing System is designed to evaluate the airtigh... |
 |
