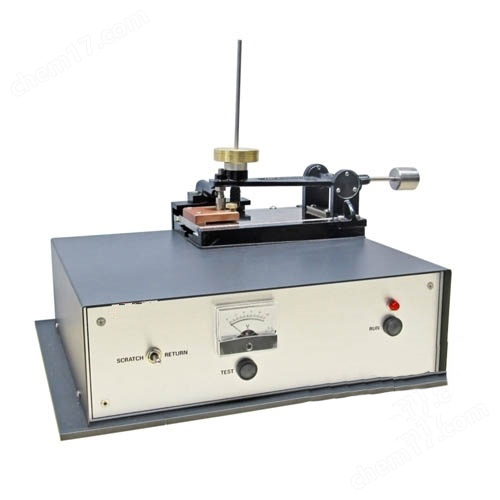

Load-controlled friction and wear testing machine manufacturer
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
Friction and wear characterization of metallic materials
Tribological performance evaluation of plastics and polymer composites
Wear resistance testing of rubber and elastomer materials
Surface durability assessment of coated fabrics and surface-treated components
Lubrication behavior and wear debris movement analysis
Typical test samples include:
Metal specimens (ball-on-disk configurations)
Plastic and composite materials
Rubber and elastomer products
Coated fabrics and surface coatings
Lubricated contact interfaces
When equipped with the optional Friction CCD System, the machine supports:
Wear particle trajectory analysis
Observation of lubricant migration behavior
Visual documentation of wear processes
Standards
GB/T 3960-2008 Metallic Materials – Test Method for Friction and Wear (Ball-on-Disk)
GB/T 30770-2014 Tribological Test Methods for Plastics – Part 1: Indentation, Plate-on-Ball, and Sliding Wear
GB/T 6040-2008 Test Method for Wear Resistance of Metal Surfaces
ISO 7148-2 Plain Bearings – Testing of the Tribological Behaviour – Part 2: Ball-on-Disk Wear Test
ISO 4649 Rubber and Elastomers – Determination of Abrasion Resistance
ISO 12137-2 Coated Fabrics – Determination of Abrasion Resistance (Martindale Method)
ASTM D1044 Test Method for Resistance of Transparent Plastics to Surface Abrasion
ASTM D3702 Test Method for Wear Rate of Materials Using a Rotating Drum Apparatus
DIN 50324 Testing of Friction and Wear of Metallic Materials
Parameters
| Parameter Category | Specification |
|---|---|
| Sliding speed | 0.1 – 50 mm/s |
| Drive motor | AC servo motor |
| Drive mechanism | Gear and rack transmission |
| Sliding distance | Constant load: 1 – 50 mm |
| Variable / continuous load: 10 – 50 mm | |
| Vertical load | Low-load unit: 1 – 50 g |
| High-load unit: 100 – 10.000 g (19.61 N / low-load unit 0.98 N) | |
| Load transducer capacity | 0.98 N / 196.1 N |
| High-load unit range | 10 – 1000 g |
| Worktable size | 120 × 100 mm |
| Worktable operation mode | Single / reciprocating |
| Pre-start mode | Constant load / continuous load switching |
| Safety device | Overload protection |
| Noise suppression | CMRR: AC/DC ≥130 dB, NMRR: AC ≥50 dB |
| Zero adjustment | Digital servo automatic zeroing |
| Output (non-linearity) | 0 to ±5 V (within ±0.05% FS) |
| Sensitivity switching | 0 / 10 / 25 / 50 / 100% FS |
| Dynamic strain amplifier | S/N ratio: 60 dB (maximum sensitivity) |
| Frequency response | 2 kHz / −3 dB |
| Filter | 1 / 10 / 100 Hz low-pass filter |
| Operating environment | 0 – 50 °C, ≤85% RH, non-condensing |
| Power supply | AC 100 V, 50/60 Hz |
| Main unit dimensions | W730 × D490 × H665 mm |
| Extended configuration | W1000 × D520 × H900 mm |
Accessories
(1) Scratch needle
(2) Ball indenter
(3) Rod gauge
(4) Weight set
(5) Power cable (2P/E, 2 m)
(6) Accessory cover
(7) Tool set
(8) Parts box
(9) Operating manual
