Automatic benchtop multi-function wear testing equipment

Whats/App: +86 156 1874 6768

Web: standard-groups.com

Application

The Benchtop Multi-Function Friction and Wear Tester is designed for a wide range of tribological test scenarios, including:

Friction and wear evaluation of metals, ceramics, polymers, coatings, and composite materials

Performance assessment of lubricants, greases, additives, and extreme-pressure lubricants

Scratch resistance, indentation behavior, and surface damage analysis

Fretting and linear reciprocating wear studies

Torque testing for tapping, twisting, and cutting tools

Tribological behavior analysis under high temperature, low temperature, vacuum, and corrosive environments

Supported test configurations include ball-on-disk, pin-on-disk, high-speed reciprocating motion, ring-on-block, and related modular test modes.

Standards

The tester is designed to support test methods referenced in the following standards:

ASTM G99 (Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus)

ISO 20808 (Fine ceramics — Determination of friction and wear characteristics of monolithic ceramics by ball-on-disk method)

GB/T 3142 (Determination of load-carrying capacity of lubricants — Four-ball method)

SH/T 0189 (Test method for anti-wear properties of lubricating oils — Four-ball method)

Parameters

ItemDescription
Platform Structure Rigid structural design for stable and repeatable tribological testing
Environmental Control Temperature: −50 °C to 1000 °C; Humidity: 5–95 % RH; optional corrosion and other environmental chambers
Interchangeable Test Modules Quickly replaceable modules including rotational, reciprocating, and ring-on-block modules
Dual Force Sensor System Two sensors can be installed simultaneously; force range from mN to 3000 N
X-axis Platform High-precision automated X-stage with 150 mm travel for test module positioning
Data Acquisition & Motion Controller High-speed, low-noise, multi-channel controller with fast feedback and data sampling rate up to 200 kHz

Accessories

Rotational test module (ball-on-disk / pin-on-disk)

High-speed reciprocating test module

Ring-on-block test module

Environmental chambers (temperature, humidity, corrosion)

Interchangeable force sensors


Отправить запрос, связаться с поставщиком

Кому: Standard International Group (HK) Limited
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Torch and Grit particle tester
Torch and Grit particle tester Whats/App: +86 156 1874 6768 Web: standard-groups.com Application You can use the apparatus in the following scenarios: Battery housing materia...
Battery Powder resistance tester
Battery Powder resistance tester Whats/App: +86 156 1874 6768 Web: standard-groups.com The Powder Resistivity Meter is a precision testing system designed to measure electrical r...
Image test standard transmission light box
Image test standard transmission light box Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard CIE 15:2004: Adheres to colorimetry standards for spectral measurement. ISO 3664...

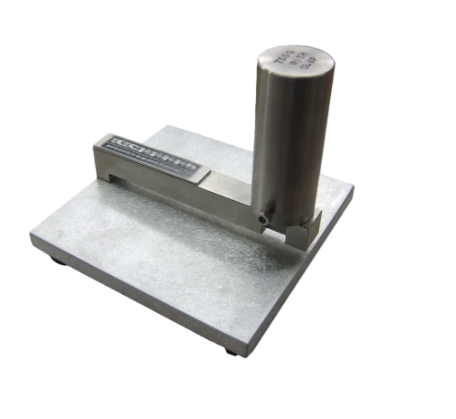

Automotive Interior Scratch & Mar Resistance Tester | OEM Supplier China
