ASTM E84 / ISO 5660 Surface Flame Spread Test Apparatus

Whats/App: +86 156 1874 6768

Web: standard-groups.com

Standards

The apparatus supports compliance with the following international standards:

GB/T 8624‑2012 – Classification of combustion performance of building materials

GB/T 27904‑2011 – Flame spread performance test methods for interior decoration materials

GB/T 2406.2‑2009 – Plastics burning performance test, vertical burning method

GB/T 2408‑2008 – Plastics burning performance test, horizontal burning method

ISO 5658‑1 – Fire spread index of building materials, small flame spread test, Part 1

ISO 5658‑2 – Fire spread index of building materials, small flame spread test, Part 2

ISO 5660‑2 – Heat release rate, smoke production, and mass loss, Part 2: Flame spread test method

ISO 5660‑4 – Heat release rate, smoke production, and mass loss, Part 4: Automotive interior materials

ASTM E162 – Surface flammability characteristics of materials (Flame Spread Index, FSI)

ASTM E648 – Assessment of carpet material flame spread

UL 94 – Plastic material flammability testing (Vertical and Horizontal Burning)

BS 476‑6:1989 + A1:2009 – Fire tests on building materials, Part 6: Small flame spread test

BS 6853:1999 – Railway vehicle material flame spread, smoke density, and toxicity evaluation

Parameters

Parameter Category	Details
Dimensions	1760 × 1450 × 2130 mm
Weight	678 kg
Radiation Panel	850 × 850 mm
Power Supply	220V, 50Hz, 10A
Operating Temp	10°C – 35°C
Gas Requirements	Industrial propane, compressed air

Features

Large Radiation Panel: 850 × 850 mm with reinforced structural support.

Vertical Sample Holder: Includes standard scale markings to measure flame spread distance and critical heat flux.

Water-Cooled System: Prevents sample holder damage during long-duration high-temperature testing.

Small Flame Ignition: Uses electric spark ignition for consistent flame application.

Automatic Safety Cut-Off: High-temperature sensors shut off gas supply if the radiation panel extinguishes.

Calibrated Heat Flux Sensors: Traceable to NIST for accurate radiation flux measurement.

Digital Control Box: Allows adjustment of gas and air flow with digital display of radiation flux.

PLC & HMI Integration: Displays all test parameters for real-time monitoring and control.

Accessories

Water-cooled sample holder

Calibrated porous panel

Heat flux sensors

Electric spark ignition system

PLC & HMI control system

Gas and air flow regulation valves

Safety interlock devices

Test Procedures

Ensure a minimum of 5 meters of clear space around the installation area.

Connect the apparatus to 220V, 50Hz, 10A power supply.

Supply industrial propane and compressed air to the system.

Mount the test sample vertically on the water-cooled holder.

Adjust the radiation panel and calibrate heat flux sensors.

Ignite the sample using the small flame ignition system.

Monitor flame spread distance and propagation speed using the scale markings and digital sensors.

Record data for critical heat flux and flame spread classification.

After testing, shut off gas and air supply and allow the apparatus to cool before sample removal.

Maintenance Information

Regularly inspect and clean the radiation panel and water-cooled holder.

Check gas and air supply lines for leaks before each test.

Calibrate heat flux sensors periodically to maintain traceability.

Inspect electrical connections and PLC/HMI for operational stability.

Replace worn or damaged safety interlocks immediately.

Другие товары поставщика

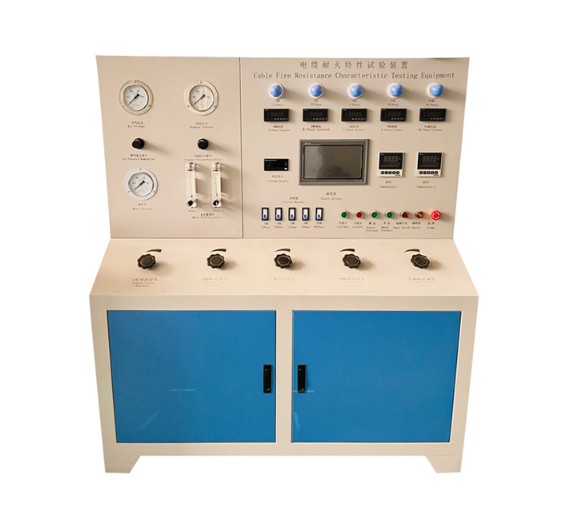

	Affordable Cable Fireproof Testing Machine	Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The apparatus is designed to comply with and support the following standards: G...
