Shoelace Abrasion Tester

Whats/App: +86 156 1874 6768

Web: standard-groups.com

The Shoelace Abrasion Tester is designed to evaluate the wear resistance of shoelaces and eyelets by simulating the friction and tension experienced during actual footwear use. The instrument provides objective durability data, including the number of cycles to failure, enabling quality control, R&D, and performance verification of footwear lacing systems.

Applications

The tester is suitable for evaluating the abrasion resistance of shoelaces and eyelets in:

(1) Athletic shoes: Running shoes, basketball shoes, football shoes.

(2) Casual shoes: Sneakers, loafers, canvas shoes.

(3) Work and safety footwear: Industrial boots, steel-toe shoes with reinforced eyelets.

(4) Children’s footwear: School shoes and sports shoes with frequent lacing.

(5) Leather footwear: Dress shoes with leather laces and metal eyelets.

(6) Outdoor footwear: Hiking boots, trekking shoes, and waterproof boots.

(7) Footwear R&D: Testing innovative shoelace materials, coatings, or eyelet designs.

Standards

(1) SATRA TM93 — Footwear: Shoelace and Eyelet Abrasion Test

(2) DIN 4843 — German Standard for Footwear Component Abrasion

(3) QB/T 2226 — Chinese Standard for Shoelace and Eyelet Durability

(4) SATRA TM154 — Footwear Lacing System Durability Testing

(5) ISO 22774 — Textiles and Plastics – Shoelace Abrasion Testing

(6) EN ISO 20344 — Personal Protective Equipment — Footwear — Test Methods

(7) ASTM F2023 — Standard Test Method for Footwear Components

(8) BS 5131:3.6:1991 — British Standard for Footwear Lacing Components

Features

(1) Evaluates durability and service life of shoelace-eyelet systems under realistic wear conditions.

(2) Simulates actual friction and tension to ensure reliable and repeatable test results.

(3) Six simultaneous test positions improve testing efficiency.

(4) Provides objective, quantitative results for quality control and R&D purposes.

Technical Parameters

ItemSpecification
Test Positions 6
Weights 455 g ± 5 g, 6 pcs
Test Speed 100 ± 5 cpm
Stroke 76 ± 2 mm
Standard Eyelet Brass, inner diameter 4.5 mm
Fiberboard 25 × 25 mm, inner diameter 5.0 ± 0.2 mm
Control Method Touch-screen control
Counter 0–999.999 cycles
Power Supply 1∮ AC 220V 50/60 Hz
Dimensions (W×D×H) 57 × 58 × 1025 mm
Weight (approx.) 60 kg (excluding weights)

Отправить запрос, связаться с поставщиком

Кому: Standard International Group (HK) Limited
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Flooring Materials Abrasion Resistance Test device
Flooring Materials Abrasion Resistance Test device Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard ASTM D3884(Abrasion Resistance of Textile Fabrics) ISO 5470-1(Rubber or Plastics...
Professional Universal Abrasion Resistance Tester for Quality Control Laboratories
Professional Universal Abrasion Resistance Tester for Quality Control Laboratories Get a quote: Whats/App: +86 156 1874 6768 Web: standard-groups.com Features 1. Fully automatic testing mode with automatic counting, automatic ...
UV Aging Test Chamber 450 X 450 X 450mm , Programmable Ozone Test Chamber
UV Aging Test Chamber 450 X 450 X 450mm , Programmable Ozone Test Chamber Whats/App: +86 156 1874 6768 Web: standard-groups.com Use of environmental test chamber Ozone Test chamberis used for testing rubber and polymer...
Rotary Reciprocating Friction and Wear Tester | ASTM G133 Tribometer
Rotary Reciprocating Friction and Wear Tester | ASTM G133 Tribometer Get a quote: Whats/App: +86 156 1874 6768 Web: standard-groups.com The Reciprocating-Rotary Friction and Wear Tester (Type 1) is designed for ev...

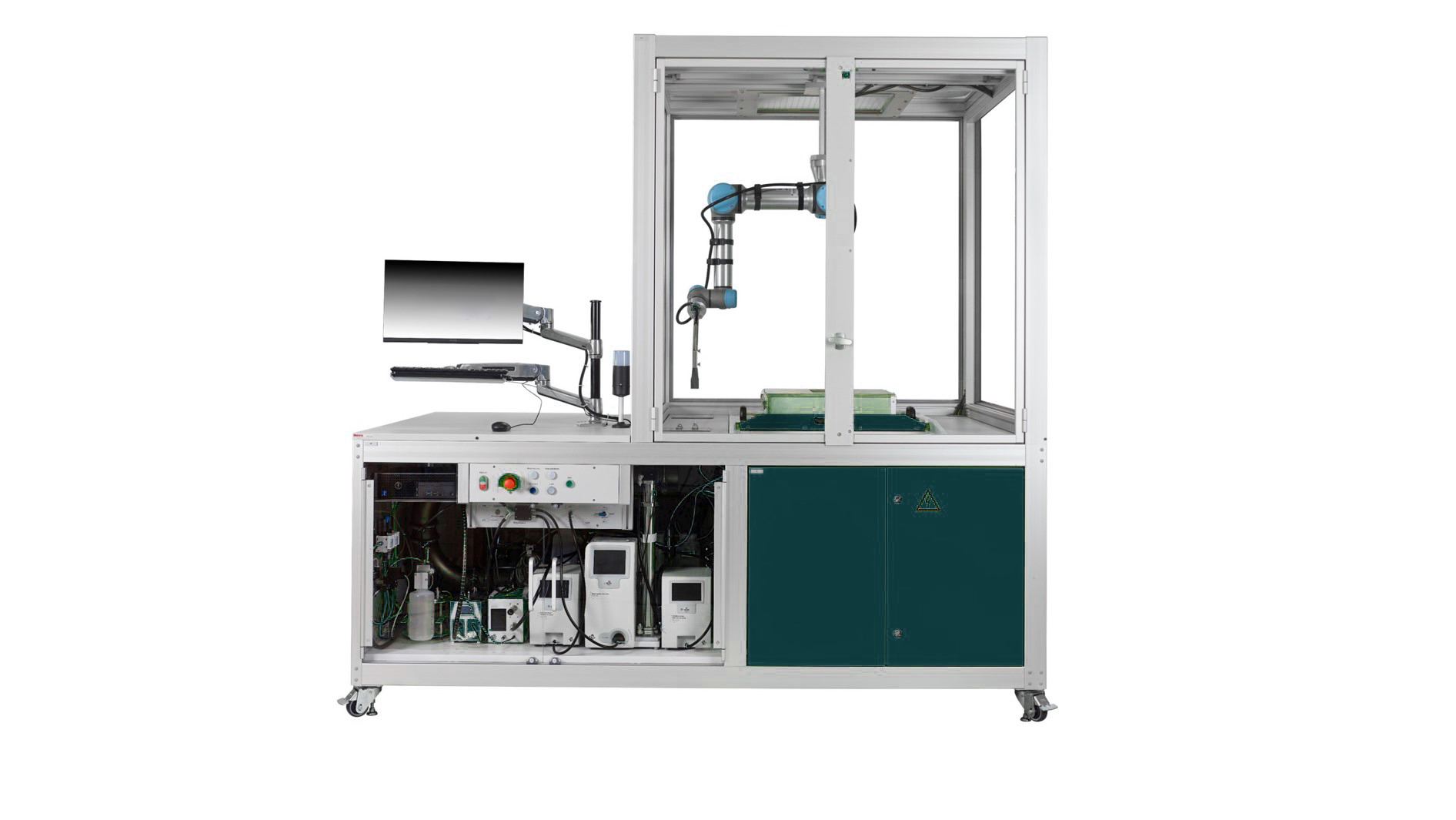

Robot-based Filter Scanning Equipment factory
