Simulated Transport Vibration Test Machine
Get a quote：
Whats/App: +86 181 0160 0864
Web: gellowen.co.uk
Simulated Transport Vibration Testing Machines can be divided into two types: small-scale simulated transport vibration tables and large-scale simulated transport vibration tables. They feature a digital display for vibration frequency; a synchronous, low-noise belt drive system; a rail-type clamping system for test samples, ensuring convenient and safe operation; a heavy-duty channel steel base with vibration-damping pads for easy installation and stable operation without the need for anchor bolts; and a DC motor for smooth operation and strong load capacity.
Applications
Simulation of transportation vibration environment: The simulation of transportation vibration table can simulate the vibration environment that may be encountered in cars, trains, ships and other transport vehicles, such as bumps, uphill, downhill, turning and other circumstances of the product collision, extrusion and other vibration, to evaluate the product in these conditions of transportation performance and packaging design rationality.
Evaluation of product vibration resistance: Through vibration testing, you can assess whether the product can withstand the test of the vibration environment during the transportation process, including structural vibration resistance, reliability and sound parts. This helps to ensure the safety and stability of the product during transportation.
Optimize product design and packaging: Test results from simulated transportation shakers can provide data support for product design and packaging optimization. For example, based on the test results, the product structure can be improved, the material strength can be enhanced, or the packaging design can be optimized to improve the transportation resistance of the product.
Quality control and inspection: During the production process, the simulated transport shaker can be used to check whether the product meets the preset vibration resistance requirements. This helps to ensure consistency and stability of product quality, reducing returns and repair costs due to quality problems.
Standards
ISO 2247:2000 Packaging — Complete, filled transport packages and unit loads — Vibration tests at fixed low frequency
ASTM D4169 Standard Practice for Performance Testing of Shipping Containers and Systems
ISTA :International Transport Packaging Association)
MIL-STD-810G: Department of Defense Test Method Standard — Environmental Engineering Considerations and Laboratory Tests
IEC 60068-2-6:2007 Environmental testing - Part 2-6: Tests - Test Fc: Vibration (sinusoidal)
Features
The digital gauge shows the vibration frequency
Synchronous noise belt drive, very low noise
The sample clamping adopts the guide rail type, which is convenient and safe to operate
The base of the machine is made of heavy-duty channel steel with vibration-damping rubber pad, which is easy to install and
runs smoothly, without the need to install anchor screws
The DC motor has speed regulation, stable operation and strong load capacity
Rotary vibration (commonly known as horse racing) conforms to European and American transportation standards
Technical Parameters
| Serial No. | Parameter Item | Parameter Value |
|---|---|---|
| 1 | Maximum test load (kg) | 100kg (or specified) |
| 2 | Test table size | 1200 x 1000mm (or specified) |
| 3 | Frequency range | 100-300rpm |
| 4 | Amplitude range | 1 inch (25.4mm) |
| 5 | Vibration mode | rotary type |
| 7 | Control motor | 1HP(0.75KW)dc motor (variable frequency motor can be replaced according to customer requirements) |
| 8 | Power supply voltage | AC220V 50HZ |
| 9 | Machine weight | about 100kg |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Electric Rubbing Colour Fastness Tester/Crockmeter | Get a quote： Whats/App: +86 181 0160 0864 G238CC Electronic rubbing colour fastness tester is used for testing the color fastness of fabric and l... |
 |
Plastic Pipe Hydrostatic Pressure Burst Tester | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Plastic Pipe Hydrostatic Pressure Burst Tester utilizes an international airle... |
 |
Flame Spread Test Machine | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Flame Spread Test Machine is designed for evaluating the flame spread performa... |
 |

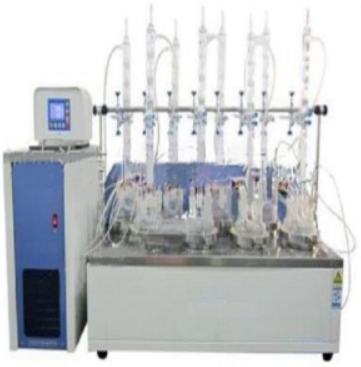

Metal Corrosivity Tester | Get a quote： Whats/App: +86 181 0160 0864 Web: gellowen.co.uk The Metal Corrosivity Tester is used to determine the corrosivity of liquids and s... |
 |
