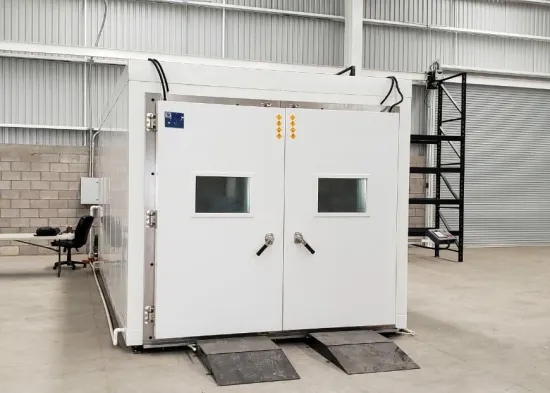

Walk-in Heating Cooling Temperature Humidity Test Chamber Room Test Machine

Walk-in Heating Cooling Temperature Humidity Test Chamber Room for test car truck

Walk-in Temperature Humidity Test ChamberApplication:
Walk-in whole auto heating cooling humidity test room( climatic/ climate/ environment/environmental test chambers) simulates the effects that a range of temperature and humidity conditions have on a product or material, for example telecommunications equipment or photovoltaic solar panels that are exposed to outdoor temperature and humidity conditions.
Walk-in Heating Cooling Temperature Humidity Test Chamber Room Test Machine

Features:
1 Vertical forced draught mode design can evenly control any temperature and humidity conditions.
2 Stainless steel and baked enamel materials, solid structure, water-proof and good appearance.
3 Korea imported Samwontech brand TEMI1500 English/Russian interface touch screen controller, RS232 or Ethernet comminication port.
4 Best after sales service: One year free parts maintenance.
5 Meet international test standards.
6.Customization is available & welcomed.

Walk-in Heating Cooling Temperature Humidity Test Chamber Room Test Machine
Technical parameters:

Model YWER
Internal Dim.W×H×D(mm) As requirement of the customer/user.
External Dim.W×H×D(mm)
Temperature Range 0ºC;-20ºC;-40ºC;-60ºC,-70ºC-- +70ºC(+80ºC)
Humidity Range 30~90%RH
Ferformance Temp.&Humi,Fluctuation ±0.3ºC;±0.5%RH
Temp.&Humi,Uniformity ±3ºC;±5%RH
Indication Resolution 0.01ºC;0.1%RH
Heat-at ºC 80
Time min 50
Pull-down ºC 0 -20 -40
Time min 55 70 100
Material Exterior SUS#304 Stainless steel/PVC+Powder Coated
Interior USU#304 stainless steel piate
Insulation Ployurethane foam 100mm (75mm) (50mm)
Systems Cirulation Siroco fan
Heating SUS#304 stainless steel high-speed heater
Humidifying Surface evaporating system
Cooling Airtight compressor+vaporator fins+air-cooling
(or water-cooling)condenser
Dehumidifying ADP Critical dewpoint cooling/dehumidifying method
Controller Digital electronic indicators+S.S.R.With PID
Other Components Airtight compressor+evaporator fins+air-cooling
(or water-cooling)condenser
Sevey Devices Overheating prevention ciruit-breaker, compressor overload protection,
control system overload,humidifying system
overheating & drying out prevention, breakdown indicator light.
Power Source[K.W.] 3Ψ 380V 60/50Hz
Comply with ASTM D2436,JIS K7212,DIN 50011,BS 2648,IEC-540.

In addition to Constant Temperature and Humidity Test Chamber, we also produce:Walk-in Heating Cooling Temperature Humidity Test Chamber Room Test Machine


Welcome to contact us and thanks for your reading !
