Carbon Black Content Tester

Standard

GB 13021-1991: Determination of carbon black content in polyethylene compounds.

GB/T 2951.41-2008: Test method for carbon black and ash content in cables and wires.

International Adaptability: Configurable for ASTM D1603 and ISO 6964 equivalency upon request.

Product Advantages

1. Accredited Precision

Dual-Standard Compliance: Meets stringent Chinese national standards for global market access.

Traceable Calibration: NIST-traceable temperature verification with certificate.

2. Compact & Ergonomic Design

Space-Saving Footprint: Integrates furnace, gas controls, and analytics into a 500mm × 400mm benchtop unit.

Tool-Free Maintenance: Quick-release glassware and silicone tubing for rapid cleaning.

3. Advanced Combustion Control

Inert Gas Management: Automated nitrogen purging (99.99% purity) prevents oxidation during pyrolysis.

Residual Combustion: Post-test air injection incinerates residues at 800°C.

4. Intuitive Operation

7” Touchscreen Interface: Pre-loaded GB/T 2951.41 test protocols with customizable hold times.

Real-Time Data: Weight differential calculations displayed during testing.

5. Safety & Durability

Overheat Protection: Dual-stage thermal cutoff at 1.050°C.

Corrosion-Resistant Construction: 316L stainless steel chamber and borosilicate glass components.

Product Features

Pyrolysis System:

Split-Tube Furnace: Rapid heating (0–1.000°C in 20 minutes) with silicone carbide elements.

NiCr-Ni Thermocouple: ±0.5°C accuracy across 300–1.000°C range.

Gas Control:

Mass flow controllers for nitrogen (1–5 L/min) and air (0.5–2 L/min).

Built-in leak detector with audible/visual alerts.

Weighing Module:

Integrated analytical balance (0.01mg resolution) with anti-vibration table.

Auto-tare function for crucibles and samples.

Data Management:

100-test memory with date/time stamping.

USB/RS-232 ports for PC connectivity and LIMS integration.

Safety Suite:

Emergency off button with E-Stop loop monitoring.

Fume extraction port for lab ventilation systems.

Technical Parameters

Specification	Details
Temperature Range	300°C to 1,000°C (max. operating temp.)
Temperature Accuracy	±0.5°C (±0.1°C with calibration kit)
Heating Rate	0–50°C/min (adjustable)
Gas Purity	99.99% N₂ (inert) / Ambient air (combustion)
Sample Capacity	1–5 samples per run (10g max. per sample)
Power Supply	220V/50Hz (110V/60Hz available)
Dimensions (W×D×H)	500mm × 400mm × 450mm
Weight	45 kg (net)

Другие товары поставщика

	High - speed Pellet Impact Testing Machine for Helmet Goggles	High - speed Pellet Impact Testing Machine for Helmet Goggles - Flammability Testing equipment price quotation - standard Standards: SNELL SA/K...

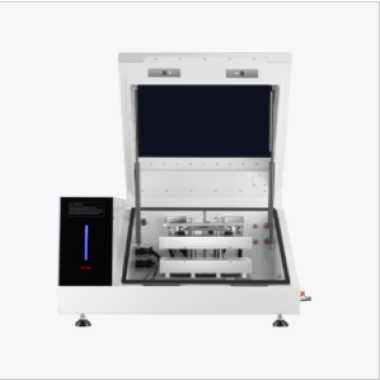

	Battery Isothermal Calorimeter	Product Description Battery Isothermal Calorimeter is a professional instrument developed based on the principle of power compensation isothermal ...

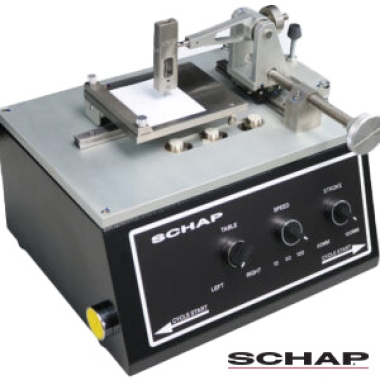

	Nissan Scratch Tester	Standard ASTM D7027(Standard Test Method for Scratch Resistance of Polymeric Coatings and Plastics) ISO 1518(Paints and Varnishes — Determi...
