Coating abrasion resistance tester
Все товары поставщика
Product Introduction:
The determination of scratch resistance of the coating is very similar to the scratch test of the coating, but this test method is the method of determining the single coating of the color paint, varnish or related products with the shape （ring or circular） needle, or the composite coating layer coating resistance: the product or system under test is applied to a uniform thickness on a flat test plate with a uniform surface texture. After drying and curing, scratch resistance is measured by pushing the test plate under the curved （ring or circular） marker, which is mounted to the surface of the test plate at 45 degrees, continuously increasing the load acting on the test plate until the coating is scratched. The minimum load for coating scratches is the load that causes at least 2 out of 5 measurements.
Main performance features:
The platform can be moved back and forth, which is convenient for users to quickly switch between different test areas on the same test board
Large working platform, suitable for different sizes of test board （Max. 200mmx100mm）
* The adjustable balance arm allows abrasion resistance testing of templates of different thicknesses （0mm-12mm）
Technical parameters:
Power :15W
Travel :80mm
Brick size :100 grams 11, 200 grams 12, 500 grams 11, 1000 grams 12, 2000 grams 11
Needle: round ring needle, diameter （6.5±0.1）mm, R0.8±0.02 thickness （1.6±0.02）mm; Hardness （HRC）56——58, smooth surface （rough accuracy {<}0.05um）
Needle moving speed :3mm/s—— 10mm /s（0.5mm level, adjustable）
Allowable test plate thickness :0-12mm
Allowable test plate width :40mm——110mm
Angle between needle and test template :45°
Power supply voltage: Input 110——240VAC 50/60HZ（power adapter output 24V, 2A）
Dimensions :540mmx250mmx375mm（L x W x H）
Weight :15KG
standard:
GB/T 23988-2009
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Salt Spray Test Machine | The Salt Spray Tester is used to create and maintain the salt spray (fog) test environment, and test the anti-corrosion quality of all the material... |
 |
Paint film scratch tester | Product Introduction: It is suitable for printing, labeling, mobile shell, MP3/MP4 shell, laptop computer shell and other kinds of household appl... |
 |
Fabric Wrinkle Bending Tester/ | Overview The Fabric Wrinkle Bending Tester is a specialized instrument used to assess the wrinkle recovery properties of various textile fabrics. ... |
 |
Liquid Spontaneous ignition point tester | Product Description complies with GB/T 21860-2008 “Test Method for Autoignition Temperature of Liquid Chemicals” and ASTM E “Tes... |
 |

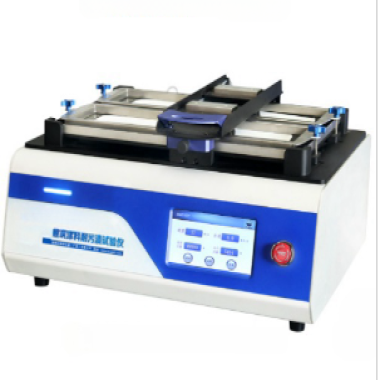

Stain resistance tester for architectural coatings | Product Introduction: The interior wall coating in architectural coatings is often polluted by some pollution from daily necessities, people often... |
