Oil-Water Separation Tester
Все товары поставщика
Applicable Standards:
(1)ISO/ TS 16332-2006 Diesel engine diesel filters Fuel Water Separation Efficiency Assessment Method.
(2) ISO 4020-2001 Test Methods for Fuel Filters for Road Vehicles - Diesel Engines.
Oil-water separation test apparatus: Oil-water separation test bench (hereinafter referred to as the test bench) mainly refers to ISO/ TS 16332-2006. Measurement of oil-water separation characteristics;
Implementation of ISO4020-2001. Cleanliness test for fuel filters. It shows the main techniques of the test, system pressure, differential pressure of the orifice device, differential pressure of the test piece and medium temperature.
Test items: Fuel filter oil-water separation performance Fuel filter cleanliness test.
Application:
Development of new products.
Comparison of performance data with foreign products.
Product quality control.
Third-party testing and supervisory organizations.
Features:
The test bench can automatically collect the main performance and technical parameters. Flow adjustment is controlled by frequency converter.
The test bench is equipped with various load protections, including hydraulic protection and electrical protection (leakage protection, overload protection, emergency stop).
The shell of the test bench is made of aluminum alloy, the panel is made of stainless steel, the word is made of wax, and the connecting pipeline is made of seamless stainless steel pipe.
Note: The above parameters can be designed and manufactured according to different requirements of customers.
Technical parameters:
Test flow: 60/h ~ 600/h or 30/h ~ 300/h System pressure: 1MPa Temperature;
Room temperature or optional heating and cooling Water flow: (1.5 ~ 200) mL/min Orifice plate: imported or domestic Test oil: 0 # diesel oil test tank: 75L (subject to the final design)
Water tank: 15L (subject to final design)
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Pipes Hydrostatic Testing Machine/ Pipeline Pressure Resistance Tester / Pipe Burst Pressure Tester | Standard ISO 1167: For thermoplastics pipe systems under constant internal pressure. ASTM D 1598: Standard test method for time-to-failure of p... |
 |

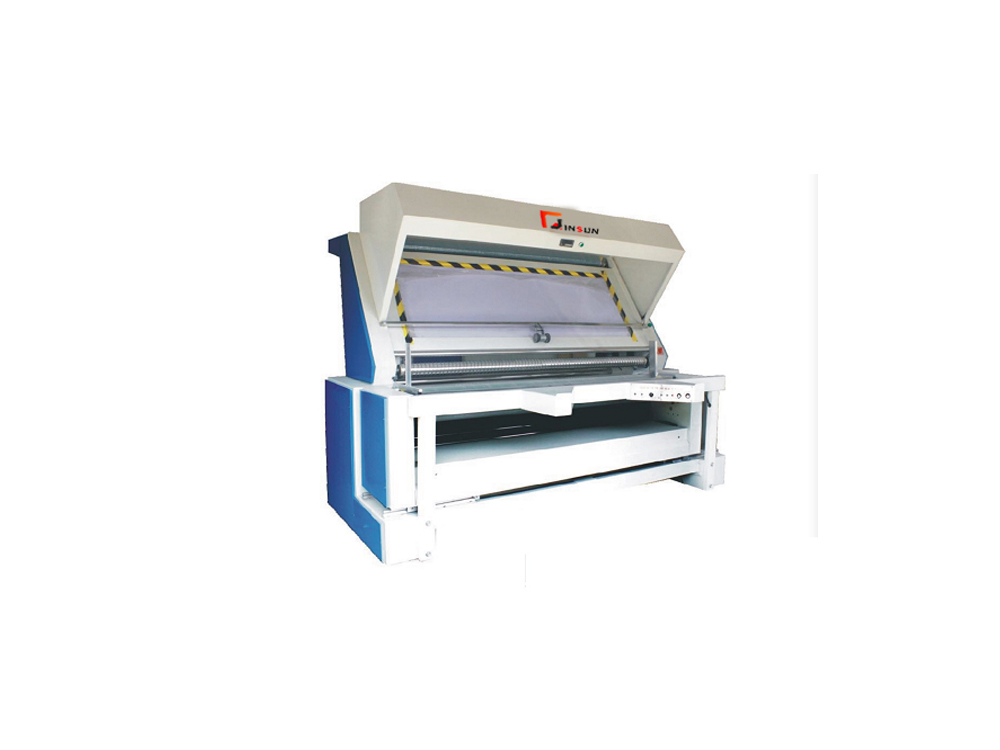

Anatomy Cloth Burling Machine | lt is suitable for planing and winding of circular wovenfabric and cylindrical fabric. Basic characteristics： Fabric inspecting width:2000mm Max... |
 |
