Fabric thickness tester
Fabric thickness tester mainly used to measure the thickness of the fabric, suitable for leather, rubber and textiles and other materials, the thickness of the measurement, to detect the standard situation.
Standards compliant:
ISO 1765: 1986, ISO 1766: 1999 (BS), BS 4051: 1987 (1996), BS 4098: 1975 (1996), BS 5808: 1991 (1996), Wools of New Zealand test method 142
Main feature:
1, for the test carpet, lining, non-woven, geotextile to provide ISO and BS standard pressure
2, the instrument design to meet the needs of different test standards
3, can be directly associated with the optional software
4, a wide range of applications: carpet thickness, carpet and the backing of the compression and elastic recovery, non-woven fabrics, foam, geotextile, etc.
Special Instructions:
1, in the carpet test, in order to test the thickness and compression recovery, the instrument can provide a presser foot and a set of weights in order to provide 2-200 kpa pressure. In the non-woven testing, the need to provide a different specifications of the presser foot.
2, the test results displayed on the digital indicator, the indicator can automatically return to zero.
3, the standard thickness gauge can measure the thickness of 25 mm of the sample, which can provide a flexible solution for different applications. For samples with a thickness of more than 25 mm, other thickness gauges can be selected.
Main Annex:
Carpet detection: including presser foot, reference plate, bell and weight
Can produce 2,5,10,20,50,100,150 and 200 kPa pressure
Primer detection: Includes presser foot, reference plate, bell and weight
Can produce 2,5,10,20,50,100 kPa pressure
RS232 connection cable: Connect with PC
RS232 download software
Dimensions: W300 mm, D400 mm, H550 mm
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Digital Fabric Elmendorf Tearing Strength Tester | Tearing TesterFurther Details: The Tearing Strength of fabrics, Paper, Plastic Film, or other comparable materials in sheet structure is controlle... |
 |
Digital Auto Burst Strength Tester | Standards: ASTM D3786, ERT 80-4-20, GB/T 7742.1, BS EN ISO 13938-1, BS 3424-6-B, ISO 3303-B, ISO 2758, ISO 3303.2, ISO 3689, JIS L1018/L1093, IWS ... |
 |
Sweating Thermal Manikin | Introduction: The sweating thermal manikin test system simulates the physical mechanism and heat exchange from the outside world. Obtain the therm... |
 |
Nonwovens liquid loss tester | Nonwovens liquid loss tester built-in loss of Taiwan and sample fixture for non-woven fabric materials for a specific test fluid slip and loss of p... |
 |
AATCC KMS-M6 Washer, KMS-M6D Dryer | I. Product Overview TheAATCC KMS-M6 Washer & KMS-M6D Dryerare precision textile testing instruments designed to evaluate fabric durability, co... |
Похожие товары
 |
Full-Body Garment Stress Tester,FZ/T 70015 | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com TheFull-Body Garment Stress Testeris a pr... |
 |
Industrial Dry Cleaning Machine,industrial garment steamer | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com TheIndustrial Dry Cleaning and Energy-Sav... |
 |
MST Medical Compression Stocking Tester,compression sock tester | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com The MST Medical Compression Stocking Test... |
 |
MMT Liquid Water Separation Tester,MMT Liquid Water Analysis Tool | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Textile Manufacturing:Testi... |
 |

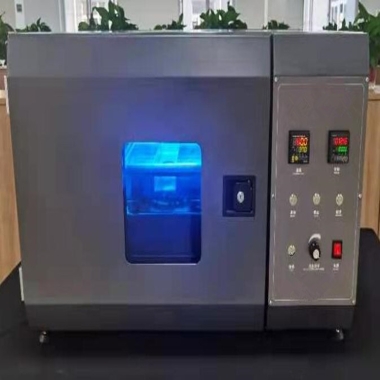

Dental material color stability tester | Продавец: Standard International Group (HK) Limited | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The applications of color st... |
