Liquid Spontaneous ignition point tester
Product Description
complies with GB/T 21860-2008 “Test Method for Autoignition Temperature of Liquid Chemicals” and ASTM E “Test Method for Autoignition Temperature of Liquid Chemicals” (English version).
Standards
GB/T 21860-2008
ASTM E659-78 (2005)
Product Features
1) Adopting embedded processor and Windows CE operating system.
2) 8-inch LCD touch screen, real-time display of the test status.
3) Integration of high temperature insulation technology, temperature control and precision detection technology.
4) Adopting electric heating furnace, with fast heating speed.
5) Furnace cavity is made of adiabatic vacuum ceramic fiber with good heat insulation effect.
6) Adopting thermocouple sensor for fast and accurate response to temperature change.
7) Equipped with automatic intelligent sampling module and maintenance-free automatic cleaning function.
8) The test process is fully automated, without human intervention, with animated image demonstration of the experimental process and automatic report generation.
9) Equipped with temperature and humidity module, which can monitor the temperature, humidity and atmospheric pressure of the test environment.
Technical Parameters
|
Operating environment |
(5 to 40)°C, <85% RH |
|
Test object |
Liquid |
|
Temperature control range |
Room temperature to 650 °C |
|
Temperature control accuracy |
±1 °C up to 350 °C; ±2 °C above 350 °C |
|
Temperature measurement range |
Room temperature to 800 °C |
|
Temperature measurement resolution |
0.1 °C |
|
Temperature measurement accuracy |
±2.5 °C up to 300 °C; ±(0.75% of reading) above 300 °C |
|
Ambient atmospheric pressure measurement range |
(60 to 110)kPa |
|
Ambient atmospheric pressure measurement accuracy |
±0.5 kPa |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Safety Helmet Roll-off Testing Equipment | The safety helmet retention test equipment is a device used to evaluate the stability of a helmet's fit when subjected to impact. By simulating the... |
 |
Intervertebral Fusion Cages Shear Fatigue Tester | Standard YY/T 0959-2014 (China): Specifies shear fatigue testing protocols for intervertebral fusion devices, including load ratios, frequency, an... |
 |

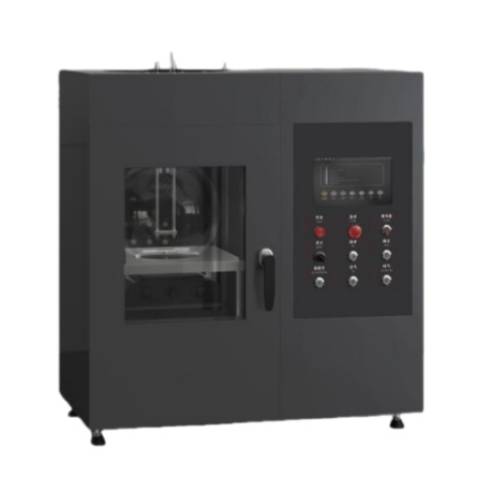

Flammability limits tester for gases and vapors | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Flammability Limits Tester is suitable for: Determining the upper and low... |
 |
