Bone Cement Four-Point Bending Fatigue Tester
Standard
YY/T 1429 (China): Specifies four-point bending fatigue tests for acrylic resin bone cements under quasi-static and cyclic loading.
ISO 16402 (International): Defines protocols for determining the fatigue life of bone cements in simulated physiological environments.
Additional alignment with ASTM F2118 for constant load fatigue testing of polymer-based bone cements.
Product Advantages
Dual-Environment Testing: Integrated water bath chamber (37°C ±0.5°C) simulates in-vivo conditions for clinically relevant data.
Precision Fatigue Analysis: 0.01Hz–50Hz frequency range captures both low-cycle and high-cycle fatigue behavior.
Automated SOP Execution: Pre-loaded test protocols for YY/T 1429 and ISO 16402 ensure regulatory compliance.
Real-Time Fatigue Monitoring: Live S-N curve plotting and crack propagation detection via acoustic emission sensors.
Modular Specimen Clamping: Quick-release fixtures accommodate rectangular beam specimens (2×4×30mm to 6×12×60mm).
Data Integrity: Blockchain-timestamped results prevent tampering and simplify audit processes.
Product Features
Four-Point Bending Configuration: 30–100mm span adjustable for standardized (ISO) or custom specimen geometries.
Electrohydraulic Actuator: Delivers sinusoidal, square, or random vibration waveforms up to 1kN force.
Thermostatic Water Bath: Dual-zone temperature control (15–50°C) with anti-evaporation lid system.
High-Speed Data Acquisition: 16-bit resolution at 10kHz sampling rate captures transient failure events.
AI-Assisted Analytics: Machine learning algorithms predict fatigue life from partial test data.
Safety Interlock System: Emergency stop, over-temperature protection, and breakaway specimen holders.
Accessories
Four-Point Bending Fixture Kit:
Anodized aluminum load frames with laser-marked span indicators
Self-aligning specimen grips (2–6mm thickness compatibility)
Thermostatic Water Bath:
10L capacity with recirculation pump for temperature uniformity
Corrosion-resistant stainless steel construction
FatigueMaster Pro Software:
Automated S-N curve generation
Crack initiation detection (acoustic emission integration)
21 CFR Part 11-compliant audit trail
Operator Kit:
Calibrated micrometer set (0–25mm)
Specimen preparation templates (ISO 16402 compliant)
Calibration Bundle:
NIST-traceable force calibration weights
Temperature verification thermocouple
Technical Parameters
| Parameter | Specification |
|---|---|
| Max. Dynamic Force | ±1.000 N (axial) |
| Frequency Range | 0.01–50 Hz (sinusoidal/square wave) |
| Temperature Control | 15–50°C ±0.5°C (water bath) |
| Force Resolution | 0.01 N (0–100N); 0.1 N (100–1.000N) |
| Displacement Range | ±5 mm (0.1 μm resolution) |
| Test Span Adjustability | 30–100 mm (ISO-compliant presets) |
| Power Requirements | 220V/110V ±10%, 50/60Hz, 800W |
| Dimensions (W×D×H) | 900 × 700 × 1.600 mm |
| Weight | 320 kg (including water bath) |
| Noise Level | <65 dB (A-weighted) |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |

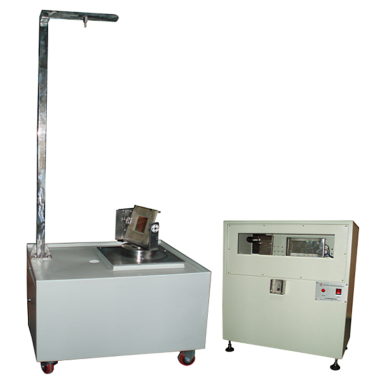

Flame Spread Test Machine | The Flame Spread Test Machine is designed for evaluating the flame spread performance of protective clothing and related materials under controlled... |
 |
