Shoe heat insulation testing machine -- sand bath
The sand bath component of the shoe heat insulation testing machine is primarily used to test the heat insulation or thermal insulation performance of footwear in a high-temperature sand and gravel thermal medium.
Applications
Shoe heat insulation testing machine - sand bath: This machine is primarily used to test the high-temperature resistance of sole materials such as rubber and polymers used in welding protective shoes and high-temperature shoes. After testing, the surface of the outsole sample should not show any softening, melting, or cracking. The test method involves heating the sand bath to 150℃, covering the contact area between the shoe upper and sole with sand, and recording the change in insole temperature over 30 minutes, with an accuracy of 0.5℃.
Standards
GB/T 20991: Determines thermal insulation of safety shoe soles under simulated hot surface exposure.
EN ISO 20344: European standard for personal protective equipment (PPE) footwear thermal resistance testing.
Features
Sand Bath System:
Heated Plate: 300mm × 300mm aluminum plate with 50mm silica sand layer.
Uniform Heating: Embedded cartridge heaters with thermal diffusers.
Temperature Control:
PID controller with auto-tuning for rapid setpoint convergence.
Over-temperature alarm with 5°C differential protection.
Sensing Suite:
2 × K-type thermocouples for sand bath and shoe interior.
1.5m cable length for flexible probe placement.
Safety Systems:
Category II electrical safety certification (EN 60529).
Residual current device (RCD) for operator protection.
Software Bundle:
ThermShoe Pro™: Auto-calculates thermal gradient (°C/min) and insulation index.
Cloud PPE: Remote monitoring for global R&D teams.
Technical Parameters
| Specification | Details |
|---|---|
| Heat Plate Dimensions | 300mm (L) × 300mm (W) × 50mm (H) |
| Temperature Range | 50°C to 200°C (adjustable in 1°C increments) |
| Control Accuracy | ±0.5°C (±0.1°C with calibration kit) |
| Sand Layer Depth | 50mm (industrial silica sand included) |
| Steel Ball Load | 5kg total (100 × 50g balls, 316L stainless) |
| Power Supply | 220V/50Hz (110V/60Hz available) |
| Dimensions (W×D×H) | 400mm × 400mm × 600mm |
| Weight | 35 kg (net) |
Accessoriess
Standard Kit:
100 × 50g calibration steel balls (316L stainless).
2 × K-type thermocouples with color-coded connectors.
Software Add-Ons:
Batch Processor: Queue 24/7 unattended testing.
API Integration: Connect to MATLAB/Python for custom analytics.
Safety Upgrades:
Explosion-proof enclosure for volatile environments.
HEPA filtration for particle-sensitive labs.
Calibration Services:
Annual recalibration with NIST-traceable certificate.
Consumables:
10L Replacement silica sand (high-purity, 0.5–1mm grain).
1L Thermal paste for sensor calibration.
Test Procedures
Calibration Procedure:
Calibration Item: Temperature
Calibration Instrument: Surface Thermometer
Calibration Period: One year
Calibration Method:
1. Turn on the power switch and set any test temperature on the temperature controller (e.g., 40℃, 60℃, 80℃).
2. Place the surface thermometer's sensing probe on the machine's heating plate and turn on the surface thermometer's power switch to allow the machine to heat up.
3. When the test machine (i.e., the displayed value of the temperature controller) reaches the set test temperature, observe the difference between the displayed value of the surface thermometer and the displayed value of the temperature controller.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Air Permeability Tester STD-F8 ，ASTM D737 air exchange rate testing machine | The Air Permeability Tester is a high-precision instrument designed to measure the breathability of materials, ranging from highly permeable gauze ... |
 |
Bone Plates Four-point Bending Fatigue Tester | Standard YY/T 1503-2016: Chinese standard specifying test methods for bending fatigue properties of metallic bone plates, requiring 1 million ... |
 |
Helmet Impact Acceleration Measurement Device | Purpose This instrument is suitable for impact - collision tests of helmets. It is a testing instrument used to evaluate the impact - resistance p... |
 |
Office Chair Caster Durability Tester | The Office Chair Caster Durability Tester is designed to evaluate the rolling durability, structural reliability, and service life of office chair ... |
 |

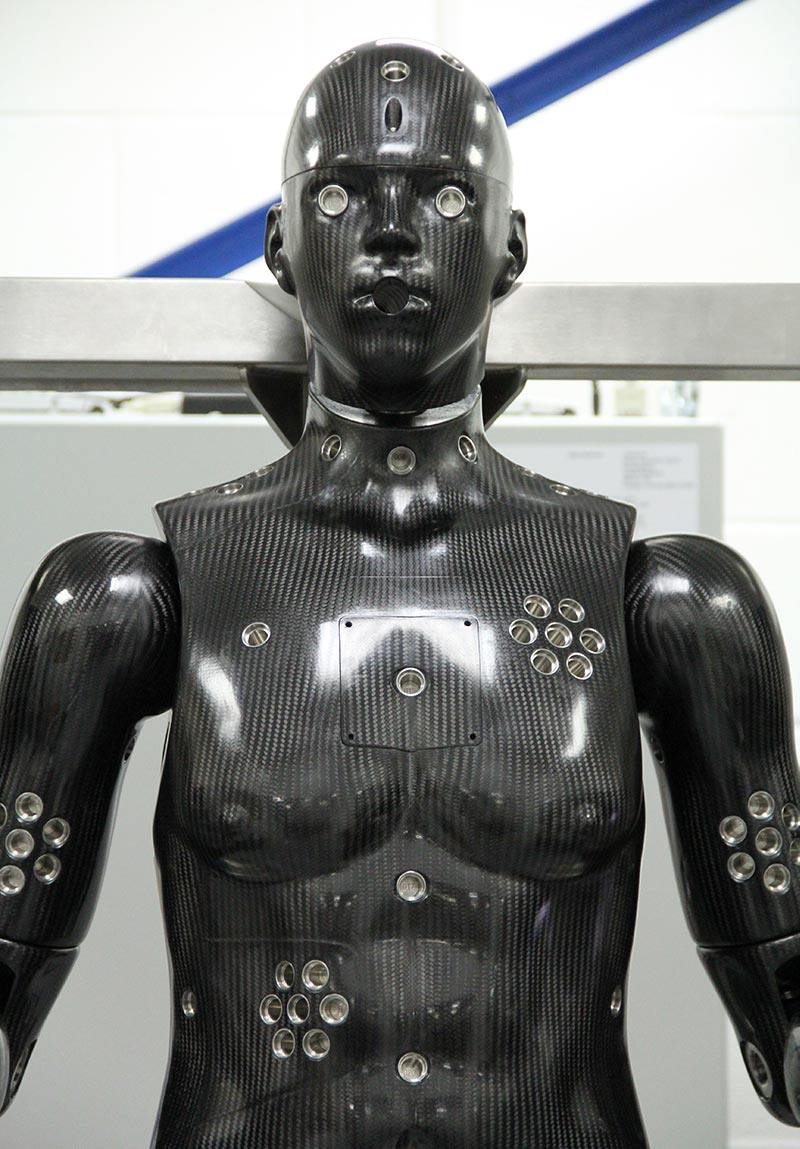

Ergonomics and Human Thermal Response Measurement | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application The Porton-man Thermal Manikin is suitable for a wide range of applications, i... |
