Mining Cable Flame Resistant Apparatus，MT386

•

This tester is designed according to the standard MT 386-1995 "coal mine fire retardant cable test methods and determine the rules",and used to test the combustion characteristics of MT 818-2009 "cable for coal mine" under overload condition. Chamber shell made of stainless steel plate, beautiful color fastness. For flame retardant cable for coal mine, flame retardant cable joints and other flammability test under high current operation state, the cable core reached 204ºC, the cable applied certain intensity and time of the flame to determine cable sheath and insulating materials in this state of flame retardant materials, anti high temperature performance and other indicators.

Standard:

MT386-2011

Main Features:

1. Test Box is sheet metal painted, beautiful and corrosion-resistant, with large transparent viewing window;The internal fixtures are made of SUS 304. beautiful and corrosion resistance;

2. Combustion chamber size is 1100×500×1000mm; The internal volume is more than 0.5m³;

3. The electronic control box size of 1100×500×800mm;

4. The brass burner diameter of ¢ 9.5 ± 0.5mm, the length is about 102mm, with air adjusting hole;

5. With a torch lever, sliding the burner freely;

Combustion Systems:

1.Equiped with high-voltage automatic ignition and automatic gas shut-off control;

2. The flame height can be adjusted;

3. Needle valve can precisely control the gas flow and the flame height;

4. Regulating valve can precise control the gas pressure;

5. The torch can precisely controll flame height and burn calories;

Electrical control system:

1. When the burner is evacuated, the control system automatically cut off the electric current through the specimen,

2. Manual control the load breaking;

3. Test time reminder; reminds experimenter evacuating blowtorch when burned 1min.

4. The load current is 10 ~ 3000A.

5. The timer range: 0 ~ 9999s (standard 4min) when the temperature reaches 204 ºC, the system will alarm and automatic cut-off to extinguish the flame.

Specifications：

1. The working voltage is AC 220V and 380V ± 10% 50Hz;

2. Weight: 300 kg;

3. Ambient temperature is -15 ~ 45 ºC; relative humidity is (30 ~ 80)% RH

4. Gas:The methane gas ≥95% ; customer-provided

Другие товары поставщика

	Protective Clothing Resistance Tester	Related Standards GB/T 22042 - 2008 Clothing - Anti-static Performance - Test Method for Surface Resistivity GB/T 22043 - 2008 Clothing - Anti-st...
	Safety Helmets Wearing Stability Tester	The Safety Helmets Wearing Stability Tester is designed to evaluate helmet retention and fit under dynamic conditions, simulating real-world head m...
	Qinsun UV-master	In response to the climate resistance testing requirements for outdoor textiles, this equipment can simulate outdoor climate conditions and accel...
	Cork Puncture and Chip Detection Instrument	The rubber stopper puncture debris detector is a device specifically used to detect the number of debris generated during the puncture process and ...
	Whole shoe breathability and heat preservation testing machine	Standard SATRA TM376: Thermal insulation testing of footwear with sock integration. SATRA TM386: Water vapor permeability assessment for athlet...

Похожие товары

	Test for Flammability of Materials ,AS1530.2,Fire reaction test apparatus	Продавец: Standard International Group (HK) Limited	Introduction Thistester is developed base on thestandard AS1530.2. test for flammability of mate...
	Building Material Radiant Panel Test Machine,AS/NZS 1530.3	Продавец: Standard International Group (HK) Limited	Products This machine is designed according to AS/NZS 1530.3; Thedeviceviaagasradiantplatetohea...
	Radiant Panel Flame Spread Apparatus，fire spread test machine	Продавец: Standard International Group (HK) Limited	Description ASTM E162 is one most widely used test standard to evaluate the propagation properti...
	Single-Flame Source Tester， ISO11925-2，DIN 53438; DIN4102-1	Продавец: Standard International Group (HK) Limited	Introduction This instrument is designed according to ISO11925-2. it is used to test building ma...

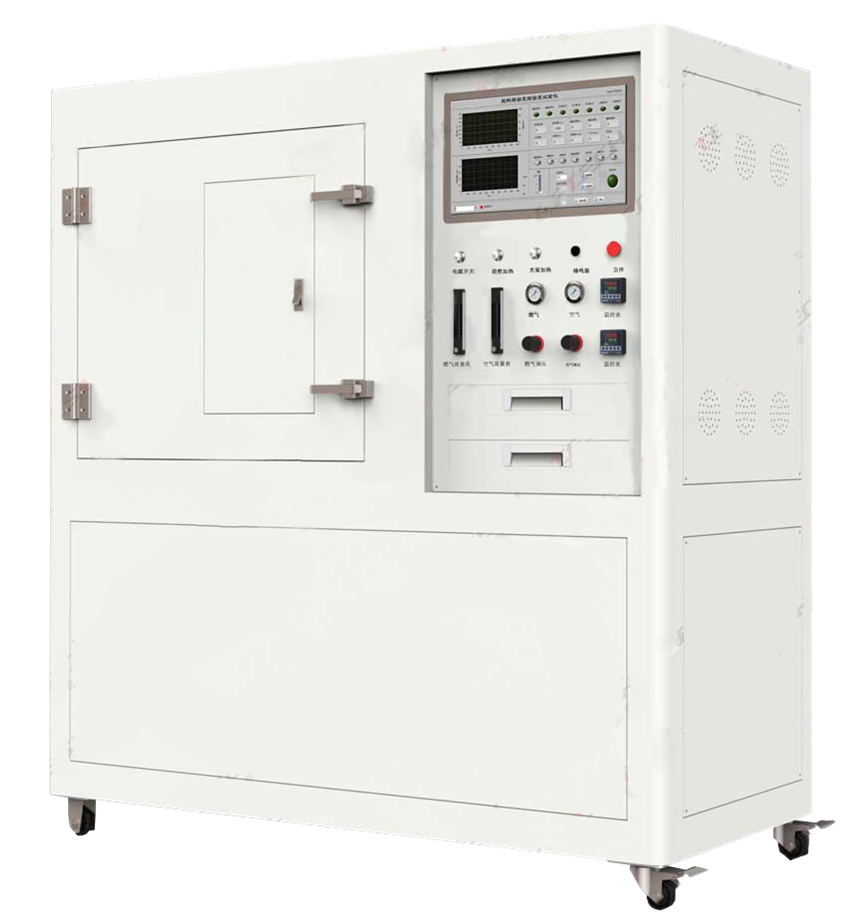

	Density of Smoke from the Burning or Decomposition of Plastics，ASTM D2843 Smoke Density Test	Продавец: Standard International Group (HK) Limited	Introduction In a fire, people are often smoke suffocated or unable to escape because of the inv...
