Tag Closed Cup Auto Flash Point Analyser, ASTM D 56，Automated Abel Closed Cup Flash Point Tester
Introduction:
STD Closed Cup Auto Flash Point Analyzer fit to the requirements of international standards ISO2719-88. using micro-computer technology control, automatic electronic ignition without gas supply, POST function, measurements accurate, repeatable, reliable performance, simple operation. Oil, chemicals, power, environmental protection, railways, research and other departments ideal instrument flash point testing.Model:FTech- ASTM D 56Standard:ASTM D 56The regulation of ISO2719-88 requirements
Features:
1.7-inch color touch-screen LCD display, English interactive display interface;
2. PID control algorithms automatically adjust the heating curve according to standards;
3. Equipped with automatic detection chip atmospheric pressure to measure atmospheric pressure.
4. A big size data storage function, can store 300 results for any time historical record;
5. Automatic error correction system, automatic stop when temperature is alarm;
6. Mixing, ignition, detection, alarm, cooling, print is automatically controlled;
7. The testing process automatically lidopenning, ignition, alarm, cooling and printing;
8. Platinum alloy heating wire ignition, stable and reliable, high precision;
9. Can be connected to a laptop via USB interface communication, compatible withWINDOWSXP /WINDOWS7 system, network management
10. Multilingual language operation.
11 ,Warming, openings, fire, alarm, cooling, printing is automatically controlled by system.
12. High-speed signal processors, high-precision analog / digital conversion circuit, stable instrument performance and test accuracy
12. Equipped with high-speed thermal mini-printer, print beautiful, fast, with a print spooling function
Technical Parameters:
| 1. Display method: | Critical digital oxygen 7-inch color touch screen display |
| 2. Measurement: | Differential detection type thermocouple |
| 3. measuring range: | Room temperature -399 ºC |
| 4. Resolution: | 0.1ºC |
| 5. Repeatability: | National Standards: flash point <104 ºC when tolerance ± 1 ºC, flash point ≥104 ºC when tolerance ± 2 ºC International standards: flash point ≤110 ºC when tolerance ± 1 ºC, flash point> 110 ºC when tolerance ± 2 ºC |
| 6. Printer: | High-speed thermal printer, 56 mm paper width |
| 7. Temperature detection: | Import platinum resistance (Pt100Ω) |
| 8. Ignition: | Airless electronic ignition source |
| 9. self-test function: | Instrument automatic fault diagnosis |
| 10. cooling method: | Forced air |
| 11. power consumption: | <550W |
| 12. use of the environment | Temperature of 10 ºC -45 ºC, humidity 30-80% |
| 13. power supply: | AC220V±10% |
| 14. Dimensions: | 450*280*290 mm |
| 15. Weight: | About 15KG |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
FPC Flex Durability meter | Standard ASTM F392 Product features 1. the stepper motor drive, high-precision positioning, low noise, can be used for a long time 2. program-c... |
 |
Solid Split-Type Weighted Dummy for Impact Testing | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Solid Split-Type Weighted Dummies are widely used by automotive manufacturers... |
 |
Flame Spread Test Machine | The Flame Spread Test Machine is designed for evaluating the flame spread performance of protective clothing and related materials under controlled... |
 |

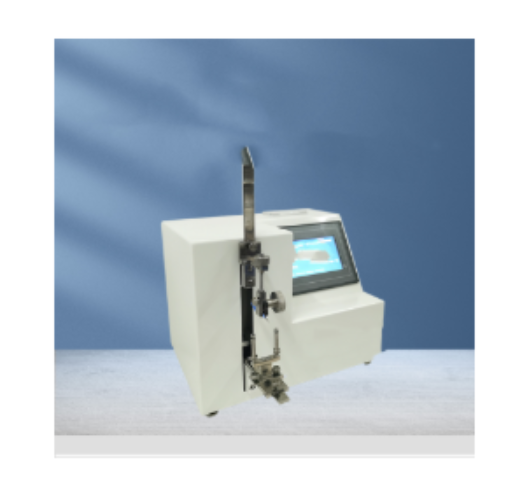

Automated blade sharpness tester machine | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Quality Control in Medical Device Manufacturing: In medical device manufactur... |
 |
