Standard Fade Meter
Все товары поставщика
Product Information:
Lightproof and discoloration test is an accelerated test to find out the impact of ultraviolet rays on color change. The scope of test includes dyeing & conditioning, printing, hide, plastics, synthetic glass, paint making, textile, ink, rubber, and other industries using pigments. The test result may be available in a short period and this will help evaluate the degree of lightproof and discoloration.
Feature and specification
Low consumption low cost of test. The voltage detection auxiliary systems. Servo current adjustment device. Box Size of the pull wet system or automatic humidification systems to choose from. Long-life American original carbon rod. Barrel tilting specimen holder, the specimen may be waived troubled position of the replacement. B.P.T. Temperature up to 83oC.
| MODEL ITEM |
STD-9708A | STD-9708B | |
| INSIDE DIMENSION | 700x700x900(WxDxH) mm | ||
| OUTSIDE DIMENSION | 1150x900x1800(WxDxH) mm | ||
| LIGHTING SOURCE | ENCLOSED CARBON ARC | ||
| TESTING TIME | 20Hr or 48Hr* | ||
| TEST VOLTAGE | 120V to 145V(135V) | ||
| TEST CURRENT | 15A to 17A(16A) | ||
| SPECIMEN DRUM DIA | 508mm | ||
| DRUM ROTATION SPEED | 3 RPM | ||
| TEST SPECIMEN | 50x50mm 40 PCS (2 STAGE) 50x50mm 60 PCS (3 STAGE) |
||
| HUMIDITY EQUIPMENT | TYPE | WICK TYPE | PAN TYPE |
| HUMIDITY EQUIPMENT | SYSTEM | NATURE | CONTROL |
| TEMPERATURE RANGE | RT+10oC ~80oC | ||
| HUMIDITY RANGE | UNDER 50% RH | 30%~85% RH | |
| CARBON TYPE | UPPER | 13Φ*305mm (1 UNIT) | 23Φ*106mm (1 UNIT) 48H |
| CARBON TYPE | LOWER | 13Φ*100mm (2 UNIT) | 18Φ*105mm (1 UNIT) 48H |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Safety Helmets Against Molten Metal Splashing Tester/ safety helmet liquid metal splash test equipment / Helmet molten metal splash tester | Standard GB/T 2812-XXXX: Safety Helmets – Test Methods for Molten Metal Resistance (Draft Standard) GB 2811-2019: Head Protection –... |
 |
Battery Powder resistivity meter | Product Advantages Unmatched Measurement Flexibility Dual-probe compatibility: Switch seamlessly betweenfour-point probe(for low-resistance m... |
 |
Adiabatic Self - Accelerating Decomposition Temperature Tester | Standards: This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 28.4.2 Test H.2: Insula... |
 |

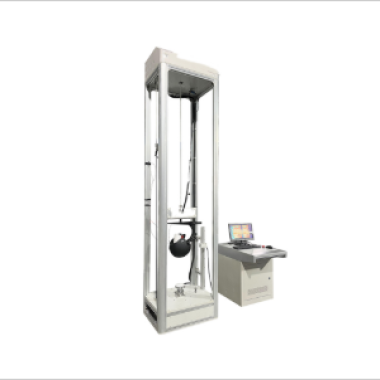

Safety Helmet Impact Acceleration Tester | Purpose This instrument is suitable for impact - collision tests of helmets. It is a testing instrument used to evaluate the impact - resistance p... |
 |
