Auto wire abrasive belt drag grinding machine

Applicable standards:

QC/T730-2005, SAE-J1128-2005, DIN 72551, IS06722, JASO D 618and other standards

Main parameters:

1,Applicable wire diameter:less than 15mm

2,Sand belt length counting range :0——999999mm

3,Sand belt walking speed :1500mm/min

4.Rounded corner of sand belt support :3.5mm

5,Test voltage :24V

6,Load :20g/50g/100g/200g(2PCS)/500g/900g/1000g

7,Load support weight :65g(0.63N±0.05N)

8,Sand belt and sample Angle :29°

9,Conductive strip spacing :75mm or 150mm

10,Conductive strip width :10mm

11,Power :200VA/220V 50HZ

12,80#, 150#, 180#, 400#sanding belt is available


Отправить запрос, связаться с поставщиком

Кому: Qinsun Instruments Co., LTD
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Dry Sand Rubber Wheel Wear Tester
Dry Sand Rubber Wheel Wear Tester Standard ASTM G65 JBT_7705 Applicable standards Dry and wet abrasive wear testing machines usually need to follow certain standards and specifi...
High Velocity Impact Testing Machine
High Velocity Impact Testing Machine Main Purpose To test the impact - resistance performance of glasses, goggles and face shields at a certain speed. Applicable Standards SNELL SA/...
Minimum Ignition Temperature (MIT) – Dust Cloud Tester
Minimum Ignition Temperature (MIT) – Dust Cloud Tester Description: Dust Cloud Minimum Ignition Temperature Tester is mainly used to assess the explosiveness of dust in the production and processing pl...
Dry Cleaning & Washing Cylinder
Dry Cleaning & Washing Cylinder IntroductionThe dry cleaning and washing cylinder consists of a stainless steel rotary test chamber and a multi-speed drive with a digital timer.It...

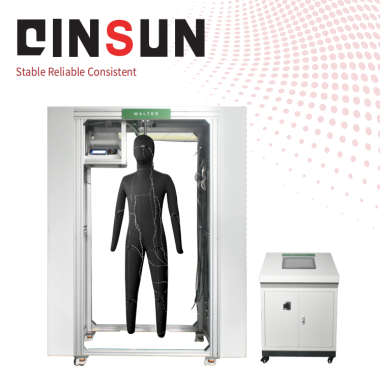

Sweating Thermal Manikin丨Sweating Thermal Manikin tester
