Wire Cut - through Tester for Ford Automotive Wires

Applicable Standard:

Engineering Specification - Ford Global Wire specification, PART NO. ES - AU5T - 1A348 - AA

Technical Parameters:

1. Sensing method: High - precision load cell (sensor) 2. Capacity: 200KG 3. Cut - through speed: 10mm/min 4. Effective measurement range (%): 0.5 - 100 5. Accuracy class: Grade 1 6. Load accuracy: Within ±1% of the indicated value 7. Display: Controlled and recorded by computer software 8. Equipped with an automatic stop function upon cut - through 9. Overload protection: The machine will automatically activate protection when the load exceeds the maximum by 10% 10. Power system: AC servo motor 11. Fixture configuration: One set of fixtures selected according to the user's product requirements 12. Power supply: AC 220V±10%, 50HZ, 5A 13. Dimensions: 56X80X170cm 14. Diameter of the cut - through steel wire: 0.45mm 15. Cut - through test voltage: Less than 24V


Отправить запрос, связаться с поставщиком

Кому: Qinsun Instruments Co., LTD
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Socks wear meter
Socks wear meter Product Introduction: Socks wear tester is a special equipment, mainly used to test the wear resistance of socks material. It evaluates the comfor...
Solid Combustion Rate Tester
Solid Combustion Rate Tester Product Introduction This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 33.2.1.4 Test...

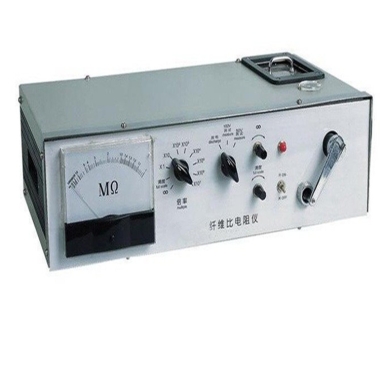

Fiber Blend Ratio Tester
Fiber Blend Ratio Tester Product Introduction: It is used to measure the resistance value with a certain density under a certain geometry, and then converts it into the sp...

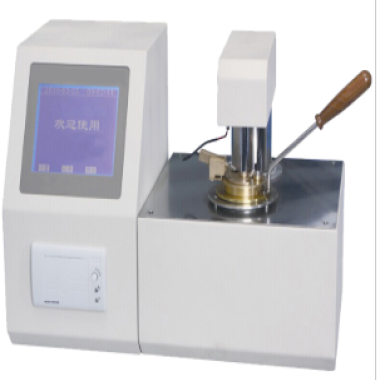

Cleveland Open Cup Flash Point Test device
