The garment fabric wet adhesion performance tester

Application Scope

The garment fabric wet adhesion performance tester is used to evaluate the adhesion degree of clothing fabrics to human skin after being soaked in liquid.

Applicable Standards

1. T/CNGA 64-2024: "Test Method for Wet Adhesion of Garments"

2. FZ/T standard (Under review and pending release)

Technical Specifications

1. Evaluation system: Four-level wet adhesion performance grading system (Grade 1: Excellent, Grade 4: Poor)

2. Maximum load range: 300g

3. Force measurement range: 0.4%-100% FS

4. Measurement precision: 0.03% FS

5. Testing speed: 1-100mm/min

6. Maximum displacement: 80mm

7. Displacement precision: 10µm

8. Servo motor & driver: Panasonic

9. Dimensions: 545×419×509mm (W×D×H)

10. Power supply: AC 220V ±10%, 400W

11. Net weight: 25kg


Отправить запрос, связаться с поставщиком

Кому: Qinsun Instruments Co., LTD
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Car seat static strength tester
Car seat static strength tester Applicable standards: GB 11550-2009"Car seat headrest strength requirements and test methods" : This standard specifies the static strength test r...

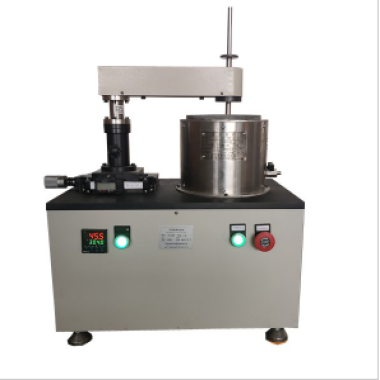

Micro Controll High-temperature Friction Tester
