Standard Helmet Visual Field Tester
Standards
EN 1078:2023: Helmets for Pedal Cyclists, Skateboarders, and Roller Skaters
CE Certification(Conformité Européenne)
Equivalent Compliance: ASTM F1446 (Respiratory Protective Devices)
Product Advantages
EN 1078:2023 Compliance
25°+ Upper / 45°+ Lower / 105°+ Lateral Vision: Ensures helmets meet minimum peripheral visibility requirements.
±0.5° Angular Accuracy: Validates visor designs for road/urban safety certifications.
Precision Engineering
360° Rotational Stage: Tests visor obstructions from all riding positions.
Auto-Leveling System: Compensates for helmet tilt during dynamic testing.
User-Centric Design
7” Touchscreen HMI: Preloaded EN 1078 test sequences with pass/fail indicators.
Quick-Release Visor Clamp: Swaps samples in seconds for high-volume labs.
Data Integrity
Built-In Data Logger: Exports test results as PDF/CSV for audit trails.
SD Card Storage: 16GB capacity for years of test archives.
Durability
Aircraft-Grade Aluminum Frame: Resists deformation during 5.000+ test cycles.
Anti-Scratch Visor Coating: Protects optics from helmet abrasion.
Product Features
Motorized Goniometer: 0.01° resolution for precise angular measurements.
Modular Head Assembly: Fits adult, child, and custom helmet sizes (50–65 cm circumference).
Dynamic Obstruction Detection: Lasers map visor blind spots in real-time.
Self-Calibrating System: Auto-tare and angular alignment checks before each test.
Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.
Accessories
Testing Kit:
2x Adult-Size Head Forms (56cm/58cm circumference).
5x Calibration Grade Angular Encoders.
Software Suite:
License key forVisorTest Pro(Windows/macOS).
1-year free access to cloud-based vision analysis tools.
Calibration & Safety:
NIST-traceable inclinometer.
2x Safety Glasses (EN 166 rated).
Maintenance Kit:
Spare drive belts and bearings.
Machine cleaning solution (non-corrosive).
Documentation:
Multilingual quick-start guide (printed + digital).
Compliance certificates for EN/ISO standards.
Technical Parameters
| Parameter | Specification |
|---|---|
| Field of View | Upper ≥25°, Lower ≥45°, Lateral ≥105° |
| Angular Accuracy | ±0.5° (ISO 17025 traceable) |
| Measurement Range | 0–360° (horizontal/vertical) |
| Head Model | Quick-swap anthropomorphic mandible |
| Power Supply | 220V AC, 50/60Hz (single-phase) |
| Dimensions | 800mm (W) × 600mm (D) × 1.500mm (H) |
| Weight | 120 kg (net) |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
45 degrees wire and cable burning instrument | Standards: ISO6722-2006. JASO D 611/2008. SAE-J 1128-2005.QC/T730-2005. DIN 72551 Main technical parameters： Type: touch screen automatic Sampl... |
 |
Helmets Vertical SpacingInfrared - positioning Tester | The helmet vertical spacing infrared positioning tester is a specialized instrument used to measure the vertical spacing and wearing height of safe... |
 |

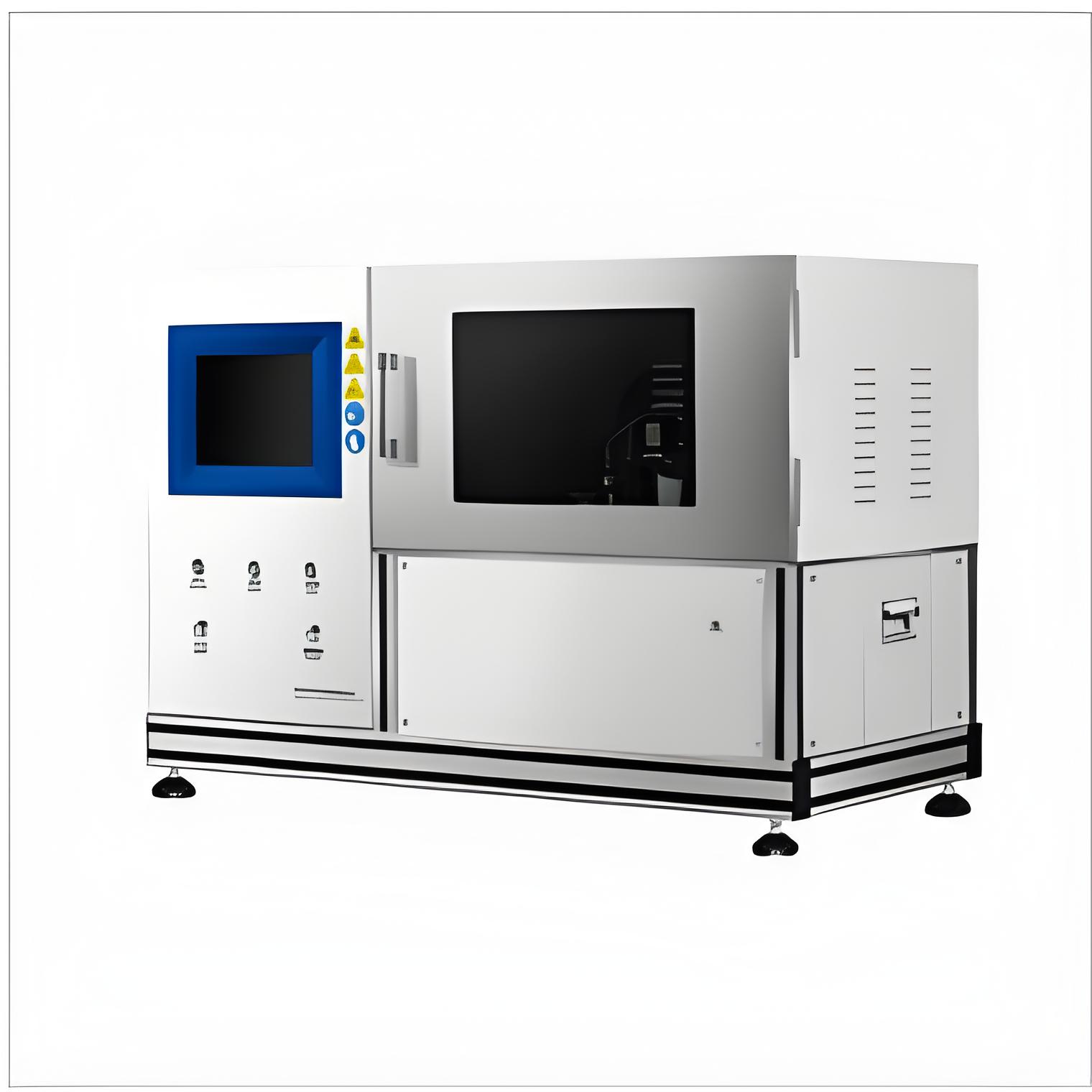

Liquid Sustained Combustion Tester，20L Spherical Explosion Tester | Product Introduction This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 32.5.2 Test L... |
 |
