Femoral Stem Neck Prostheses Fatigue Testing Machine
Standard
YY/T 0809.6 (China): Specifies neck fatigue testing for femoral stems in partial/total hip arthroplasty.
ISO 7206-6 (International): Defines protocols for evaluating the fatigue strength of femoral head-neck junctions.
ASTM F2023: Additional compliance for dynamic loading of ceramic femoral heads.
Adaptive Protocols: Customizable for emerging standards in biomaterial fatigue testing.
Product Advantages
Electromagnetic Precision: M-Series actuator delivers ±0.1% force accuracy with sub-micron displacement control.
10 Million Cycle Endurance: Proven capability to complete ISO 7206-6’s 10⁷-cycle fatigue test without drift.
R=0.1 Load Control: Advanced servo-hydraulic system maintains specified stress ratios throughout testing.
Real-Time Failure Detection: AI-driven algorithm identifies crack initiation at sub-millisecond intervals.
Ergonomic Workflow: 15.6” touchscreen with multilingual interface (English/Chinese/German) and pre-loaded SOPs.
Modular Test Chambers: Quick-swap environmental pods for simulated physiological testing (-20°C to +50°C).
Product Features
Electromagnetic Actuator: 5.340 N peak force capacity with 0.001 N resolution.
Dual-Axis Loading: Simultaneous axial/torsional loading (50 Nm max torque).
Dynamic Load Control: 1–30 Hz frequency range with programmable waveforms (sine, square, random).
Thermal Chamber Integration: ±0.5°C temperature stability for accelerated aging studies.
High-Speed Imaging Ready: Syncs with external cameras for full-field strain mapping (optional upgrade).
Safety First: Emergency stop, overload clutches, and laser-based specimen breakage detection.
Technical Parameters
| Parameter | Specification |
|---|---|
| Max. Dynamic Force | ±5.340 N (11.940 N peak optional) |
| Frequency Range | 1–30 Hz (0.1 Hz increments) |
| Load Ratio (R) | 0.1–10 (adjustable) |
| Axial Displacement | ±10 mm (0.1 μm resolution) |
| Torque Capacity | ±50 Nm (0.01 Nm resolution) |
| Temperature Range | -20°C to +50°C (environmental chamber) |
| Data Sampling Rate | 50 kHz (synchronized across 12 channels) |
| Power Requirements | 220V/110V ±10%, 50/60Hz, 1.500W |
| Dimensions (W×D×H) | 1.200 × 800 × 1.900 mm |
| Weight | 550 kg (including thermal chamber) |
| Noise Level | <70 dB (A-weighted) |
Accessories
Femoral Neck Test Fixture Kit:
Self-centering collet system (12/14 mm taper compatibility)
Laser-aligned loading anvils with wear-resistant coating
Thermal Environmental Chamber:
15L capacity with rapid cooling/heating (10°C/min)
Corrosion-resistant 316L stainless steel interior
TestMaster Elite Software:
Automated fatigue life prediction (S-N/ε-N curve generation)
21 CFR Part 11-compliant audit trail with blockchain timestamping
Remote monitoring via iOS/Android app
Operator Kit:
Calibrated torque wrench set (0.5–25 Nm)
Specimen alignment gauges (ISO 7206-6 compliant)
Calibration Bundle:
NIST-traceable force calibration weights
Temperature verification probe
Safety Kit:
Laser safety curtains
Acoustic enclosure for noise reduction
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Photovoltaic module insulation resistance tester | The Photovoltaic Module Insulation Resistance Tester is a precision instrument designed for simultaneous measurement of insulation resistance and l... |
 |

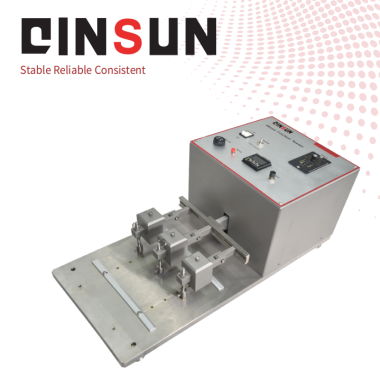

Glass Scratch/Abrasion Tester | Standards ISO 10993-7: Biological Evaluation of Medical Devices – Ethylene Oxide Sterilization Residuals USP (United States Pharmacopeia): ... |
 |
Wet leakage current test system of photovoltaic module | The Wet Leakage Current Test System is designed for high-precision evaluation of insulation resistance and leakage current in photovoltaic modules ... |
 |

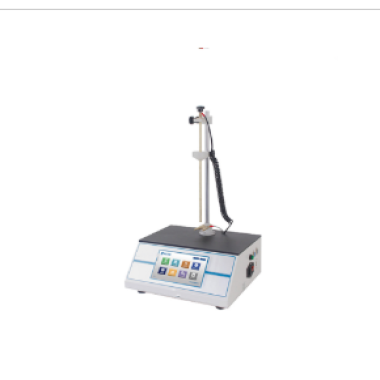

Aluminum Tube Internal Coating Continuity Tester | The Aluminum Tube Internal Coating Continuity Tester is an important device specifically designed for testing the continuity of the internal coatin... |
 |

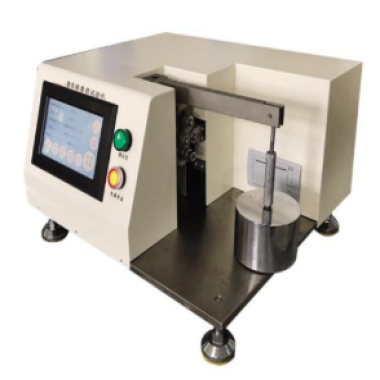

Sliding bearing PV friction testing machine | The testing machine can monitor the changes in friction force and the wear condition of the sample surface in real time during the test, and also p... |
