Safety Helmet Lateral Rigidity Tester
Standard
GB 2812: Safety Helmets (China National Standard)
Equivalent Compliance: ISO 6220-2 (Industrial Safety Helmets – Lateral Deformation)
CE Certification(Conformité Européenne)
Product Advantages
GB 2812 Compliance
1.000N Load Capacity: Simulates extreme lateral impact forces per GB 2812.
0.1mm Displacement Resolution: Captures subtle deformations before critical failure.
Ultra-Precise Control
1% Force Accuracy: Ensures repeatable compression testing for global certifications.
100N/min Adjustable Rate: Mimics real-world impact velocities.
User-Centric Design
7” Touchscreen HMI: Preloaded GB 2812 test sequences with auto-hold functions.
Quick-Release Helmet Clamp: Swaps samples in seconds for high-throughput labs.
Data Integrity
Built-In Data Logger: Exports force-displacement curves as PDF/CSV for audit trails.
LED Real-Time Display: Visualizes test progress and peak forces during loading.
Durability
Aircraft-Grade Aluminum Frame: Resists deformation under 1.000N max load.
Corrosion-Resistant Sensors: Stainless steel construction for humid environments.
Product Features
Motorized Compression Stage: 0–500 mm/min adjustable speed with force-displacement graphing.
Modular Head Assembly: Fits adult, child, and custom helmet sizes (50–65 cm circumference).
Dynamic Force Feedback: 0.1N resolution load cell with peak force memory.
Self-Calibrating System: Auto-tare and linearity checks before each test.
Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.
Accessories Included
Testing Kit:
2x Universal Helmet Clamps (adjustable for 50–65 cm heads).
5x Calibration Grade Load Cells (10N–1.000N).
Software Suite:
License key forRigidityTest Pro(Windows/macOS).
1-year free access to cloud-based deformation analysis tools.
Calibration & Safety:
NIST-traceable force gauge.
2x Safety Glasses (EN 166 rated).
Maintenance Kit:
Spare drive belts and bearings.
Machine cleaning solution (non-corrosive).
Documentation:
Multilingual quick-start guide (printed + digital).
Compliance certificates for GB/ISO standards.
Technical Parameters
| Parameter | Specification |
|---|---|
| Force Capacity | 0–1.000N (100 kgf capacity) |
| Force Accuracy | ±1% of reading |
| Displacement Resolution | 0.1mm (ISO 17025 traceable) |
| Test Rate | 100N/min ±10N/min (configurable) |
| Max Travel Distance | 600mm (23.6”) |
| Power Supply | 220V AC, 50/60Hz (single-phase) |
| Dimensions | 700mm (W) × 500mm (D) × 1.300mm (H) |
| Weight | 95 kg (net) |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Fire stability tester paper gypsum board | Introduction: The Fire Stability Tester for Paper Gypsum Board is an essential instrument designed to evaluate the fire-resistant properties of gy... |
 |

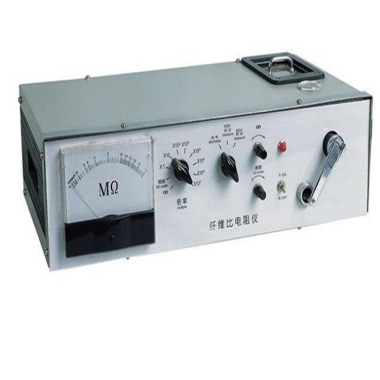

Fiber Blend Ratio Tester | Product Introduction: It is used to measure the resistance value with a certain density under a certain geometry, and then converts it into the sp... |
 |
