Medical Face Mask Synthetic Blood Penetration meter
Applicable Standards:
GB 19083-2010
YY/T 0691-2008
YY 0469-2011
ISO 22609
ASTM F1862-07
Features:
1. Mask fixture is metal human head mold, which can fully simulate the actual use state of the mask.
2. Metal human head mold can be rotated at a certain angle, which is convenient for sample clamping.
3. Specially designed injection control device, a certain volume of synthetic blood can be sprayed in the controlled time.
4. Instrument uses a gas source that can provide (700±25) kPa stable air pressure.
5. It can simulate the liquid injection velocity corresponding to the human blood pressure 10.6 kPa、16.0kPa 、21.3kPa (i.e .80 mmHg、120mmHg、160mmHg) for the test.
6. A fixed target plate is provided to block the high pressure edge part of the ejected liquid flow, only the steady flow part is sprayed on the area sample, which increases the accuracy and repeatability of the test.
7. This blood penetration testing equipment uses imported special aluminum wire drawing panel, equipped with metal keys, sensitive operation, not easy to damage.
8. 7 inch color touch screen display test parameters, menu-style operation mode, the degree of convenience comparable to the smart.
9. Core control components using Italian law company 32-bit multifunctional motherboard.
Technical Specification:
| Spraying distance: 300mm-305mm adjustable | Nozzle length: 12.7mm |
| Space between front and rear plates: 0.6cm | Target plate bore diameter: 0.5cm |
| Control panel: Touch-tone | Total weight: 35Kg |
| Nozzle size: 0.84mm | Power supply: 220V 50HZ |
| Spraying speed: 450cm/s, 550cm/s, 635cm/s | Appearance size: 1000mm*500mm* 650 mm |
| Spraying pressure: Standard/10.6kPa, 16kPa,21.3kPa/adjustable |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Microbial Barrier Test device | Product Introduction: Y/T 0471.5-2017 is a newly updated standard, which specifies the experimental method for evaluating the bacteria-inhibiting ... |
 |
Glove Cut-Proof Performance Tester (for Glove Cut Resistance Tester) | Product Introduction: The machine is used to test the cutting resistance of gloves. Under the specified load, the blade cuts the sample to measure... |
 |
Dry fallen wadding tester G275 | G275 Dry fallen wadding tester, The tester is used to evaluate the fallen wadding test of non-woven fabrics under dry conditions, and is mainly app... |
 |
Face Mask Tensile Tester | Introduction: The test machine uses the integrated structure of the motor and the speed control system to drive the synchronous belt deceleration ... |
 |

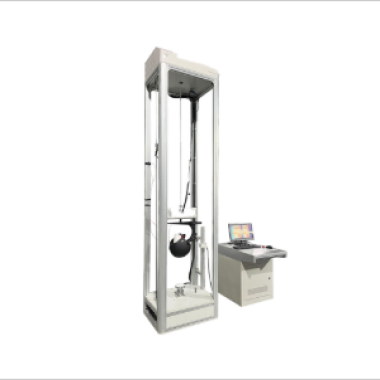

Safety Helmets Acceleration Impact & Penetration Tester | Standard GB/T 2812: Safety Helmets (China National Standard) Equivalent Compliance: ISO 6220-1 (Industrial Safety Helmets – Impact Absorpti... |
