Abrasive Wear Test device
Standard
ASTM G65 - 04
GB/T 3960-1983
Main Purposes
The wet - type rubber wheel abrasive wear testing machine is primarily employed to assess the wear - resistance of metal materials when they are in frictional contact with solids like sand, ores, and sediment. Through these tests, the capabilities of various metal materials to resist abrasive wear can be ascertained, and investigations into the abrasive wear mechanism can be carried out. This empowers the design, production, and scientific research departments related to mining machinery, construction machinery, transportation machinery, agricultural machinery, and so on to choose appropriate metal materials and manufacturing processes.
Structural Features
This testing machine is composed of two components: the main unit and the control system. The main - unit part comprises the machine base, main shaft and drive system, dead - weight loading system, and specimen clamping device. The control system includes the measurement and control section as well as the display instrument section. The two sections are linked by a control cable
Technical parameters
Load: 100 Newton
Disc speed: 60. 120 rpm
Sample feed: 1. 2. 3. 4 mm / turn
Sample diameter: 2. 3. 4 mm
Auto-control system counting range: 0-99999999 (can be stopped at a given number of revolutions)
Overall dimensions: 560 × 540 × 1020mm
Weight: 350Kg
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Haze meter | Standard The Haze Meter STDYH40 adheres to global standards includingASTM D1003/1044,ISO 13468/14782,JIS K7105, andGB/T 2410, ensuring compliance ... |
 |
Total Knee Joint Prostheses Wear Tester | Standard ISO 14243-1:2014: Specifies wear testing parameters for total knee prostheses, including axial loading, flexion/extension kinematics, and... |
 |
Veslic Rub Fastness Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application It simulates real-world wear scenarios, such as foot rubbing, cross-legged sea... |
 |
Conveyor Belt Drum Friction Test device | Main Purposes of Conveyor Belt Drum Friction Testing Machine The conveyor belt drum friction testing machine has extensive application value in mu... |
 |

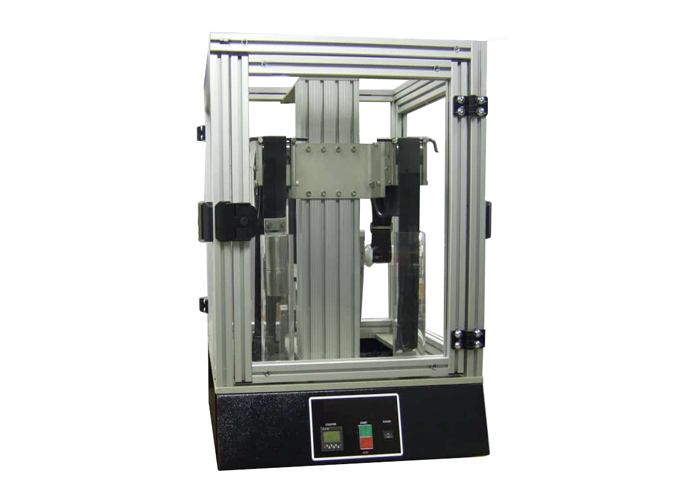

2 station seatbelt webbing abrasion tester for automotive safety testing | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The tester complies with major international and automotive standards for seatbe... |
