Time-Pressure Oxidizing Liquid Analyzer
Product Description
Conforms to UN Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria 11.6.1 Test 1(c)(i): Time/Pressure Test, 12.6.1 Test 2(c)(i): Time/Pressure Test, 23.4.1 Test C.1: Time/Pressure Test, and GB/T 21579-2008 Time/Pressure Test Method for Dangerous Goods.
Standards
GB/T21620、GB/T 21579-2008、NY/T 1860
Product characteristics
1) Embedded processor, Windows CE operating system
2) 8-inch LCD touch screen can display the test status in real time
3) Automatic detection of pressure vessel air tightness (by detecting the initial pressure drop rate)
4) With ignition sound and light alarm function
5) Stainless steel seamless welded inner liner and pressure vessel, pressure sensor with corrosion resistance, high temperature resistance, high pressure resistance
6) Automatic timing and high-precision pressure detection system, real-time detection and display of pressure changes
7) With automatic pressure relief device, after the test, automatically punctured explosion-proof sheet, release pressure
8) Automatically draw the pressure curve
9) With reaction residue collection and anti-splash function to avoid external contamination of the sample
10) Remote ignition to ensure the safety of experimental personnel
11) The test process is fully automated without manual intervention, supporting parameter setting, data storage, viewing reports and other functions
Technical parameters
|
Operating Environment |
(5 to 40)°C, <85%RH |
|
Pressure Transducer Response Capability |
Responds to pressure change from 0MPa-3MPa vessel cavity in 5ms |
|
Pressure Measurement Range |
(0 to 5)MPa |
|
Pressure Measurement Accuracy |
±0.1%FS |
|
Heating Method |
Electronic Ignition |
|
Burst Pressure of Rupture Disk |
2.5MPa ±5% |
|
Standard Timing Range |
(0 to 60)s |
|
Timing Display Resolution |
0.01ms |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Guidewire Pushing Force Tester | Standards YYT0807 - 2010 YY/T0663.2 - 2016 ASTMF2394 - 2007 Main Uses The guidewire pushing force tester is a precision testing tool in the med... |
 |

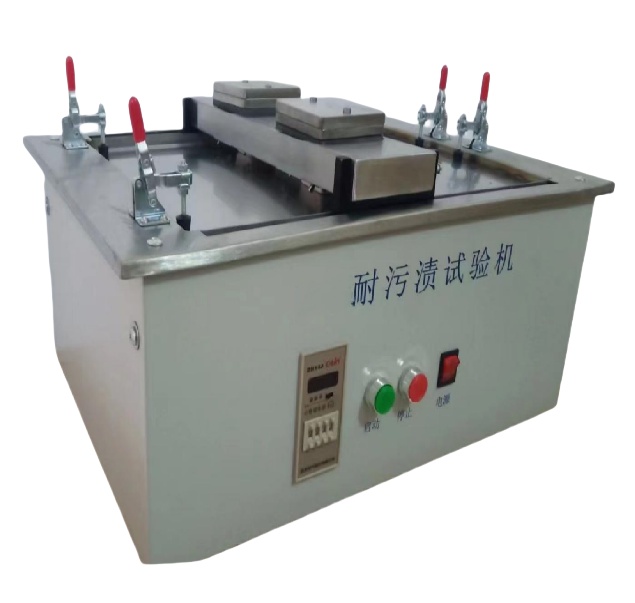

Stain resistance tester for architectural coatings | Product Introduction The interior wall coating in architectural coatings is often polluted by some pollution from daily necessities, people often ... |
 |
