Adiabatic Self-Accelerating Decomposition Temperature Tester
Product Introduction
This product complies with "Recommendations on the Transport of Dangerous Goods - Manual of Tests and Criteria" 28.4.2 Test H.2: Insulated Storage Test.
Standards
GB21613-2008
GB/T 39093-2020
Product Features
1. It adopts an embedded processor and the Windows CE operating system. 2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time. 3. It has a built - in air circulation system to ensure the uniformity and stability of the cabinet temperature. 4. The digital PID algorithm precisely controls the heating temperature with high temperature - control accuracy. 5. It is equipped with a cooling device to prevent the sample from overheating and exploding. 6. The auxiliary safety device can automatically cut off the heating system at a preset temperature. 7. The instrument has a fault - detection function and audible and visual alarm functions to ensure the safety of the test. 8. The front of the equipment is equipped with an explosion - proof glass observation window, and the back has a pressure - relief door design. When the internal thrust is greater than 2.5 kilograms of force, the pressure - relief door will open to ensure the safety of the test. 9. It can display the running time and real - time temperature in real - time, automatically draw test curves, and allow viewing of original data. 10. The test options are diversified, and users can configure corresponding test parameters according to the characteristics of the samples. 11. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.
Technical parameters
|
Operating environment |
(5～40)℃, <85%RH |
|
Chamber temperature control range |
-20°C to 220°C |
|
Temperature control accuracy |
±0.5°C |
|
Sample temperature measurement range |
(-50 to 500)°C |
|
Sample temperature measurement resolution |
0.1°C |
|
Sample temperature measurement accuracy |
±2.5°C up to 300°C; ±(0.75% of reading) above 300°C |
|
Dewar's bottle capacity |
1L |
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Rubbing Abrasion Testing Machine | T107 Scrubbing Tester, It is suitable for various abrasion and wet scrubbing tests, which is commonly used in scrubbing resistance tests for interi... |
 |
Fabric Negative-ion Concentration Tester | Application Functional Textile R&D: Assesses air-purifying, health-enhancing, and antimicrobial fabrics. Quality Control: Verifies complian... |
 |

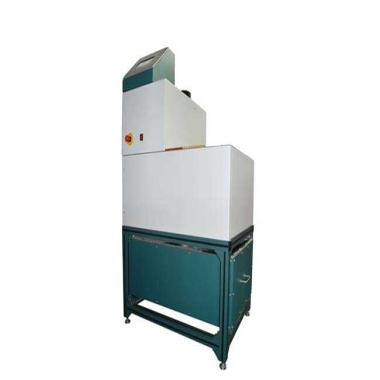

Rain Tester | Testing Standards:AATCC 35, BS EN ISO 22958Applications:Rain Tester is designed for determining the water-repellent property of fabrics or composit... |
 |
