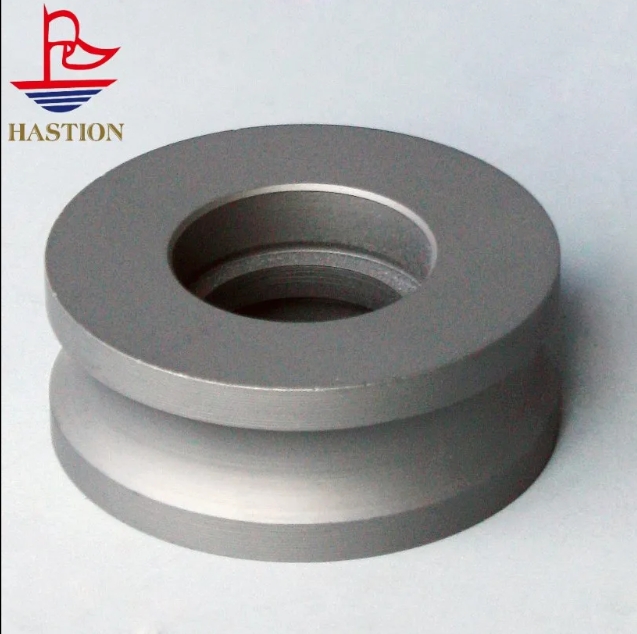

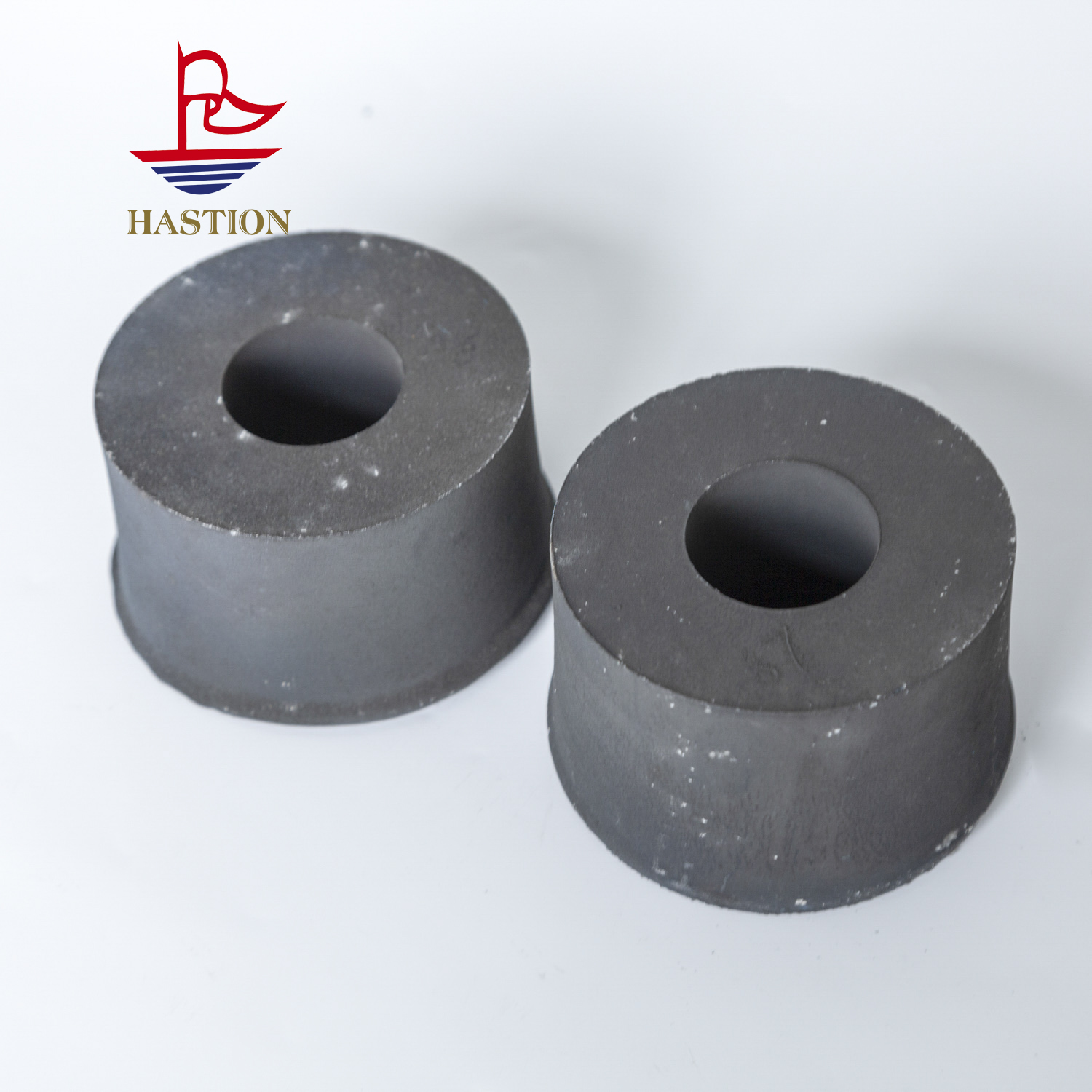

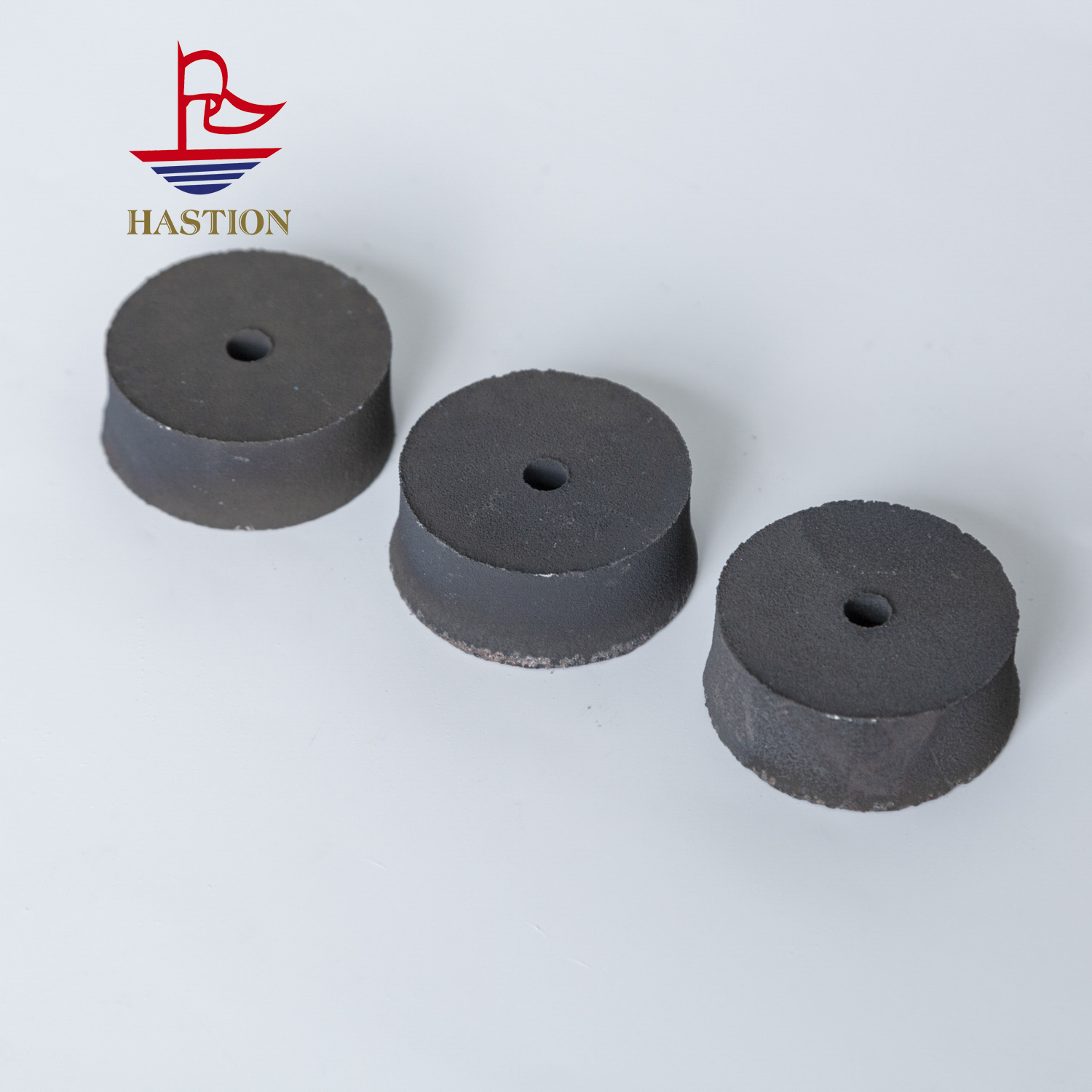

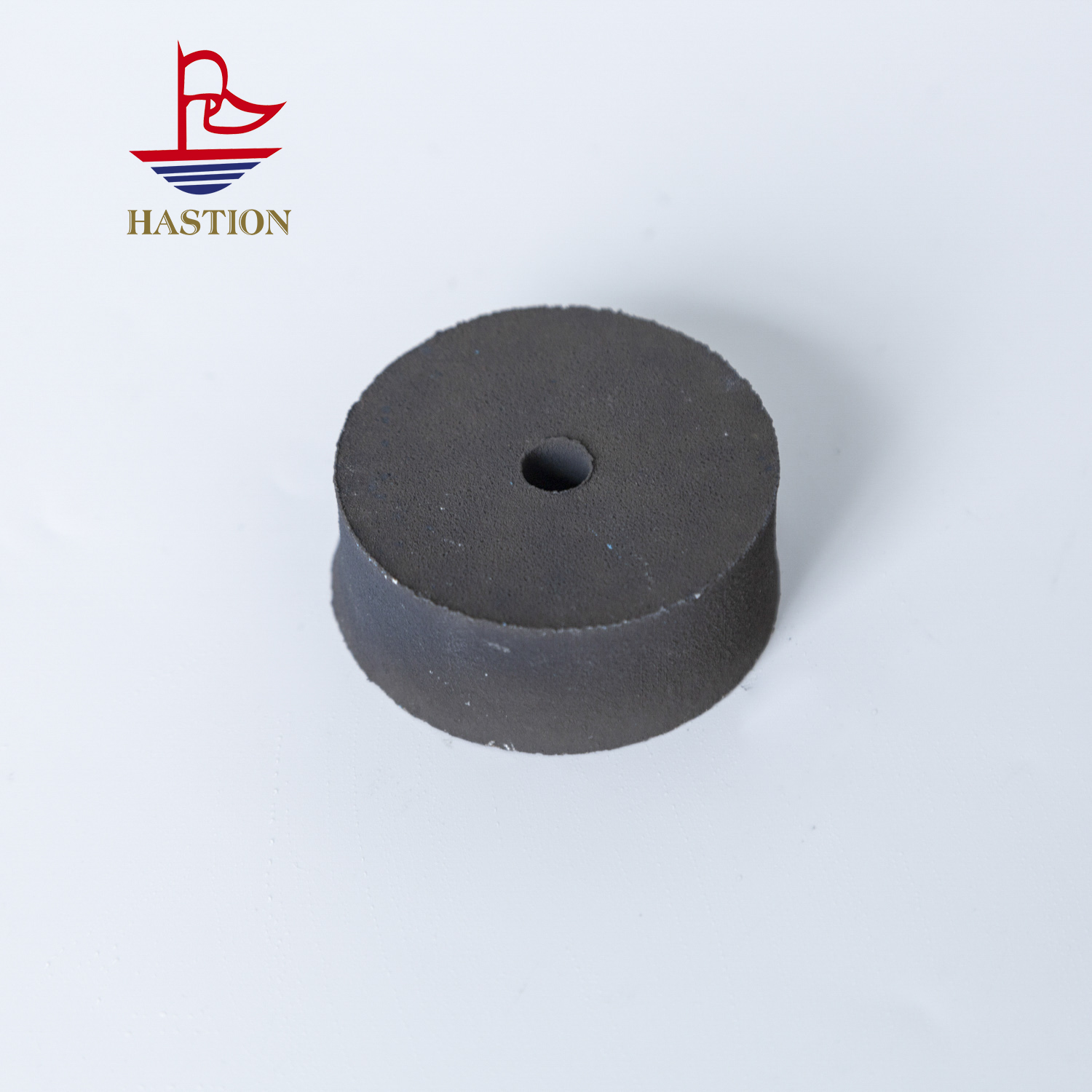

Titanium carbide hard alloy guide wheel industry
Hard alloy titanium carbide guide wheels have excellent impact resistance. When the wire is suddenly tensioned or broken, they are not prone to cracking or deformation, reducing the risk of equipment shutdown. It has excellent thermal conductivity and can quickly dissipate the heat generated by friction, keeping the working temperature of the guide wheel within 80℃ and preventing the wire from annealing due to overheating. In the production of spring steel wire, the use of this guide wheel can keep the straightness error of the steel wire within 0.5mm/m, thereby enhancing the fatigue life of the spring. The hard alloy titanium carbide guide wheel has excellent thermal shock resistance. It will not crack when the temperature rises sharply from room temperature to 300℃ and then drops sharply back to room temperature, making it suitable for intermittent production conditions. The size range of guide wheels is wide, with diameters ranging from 50mm to 500mm and widths from 10mm to 100mm, which can be adapted to different types of drawing or rolling equipment. In the production of optical fibers and cables, it can precisely guide optical fibers, keeping the attenuation rate of optical fibers below 0.2dB/km and ensuring the quality of communication.
